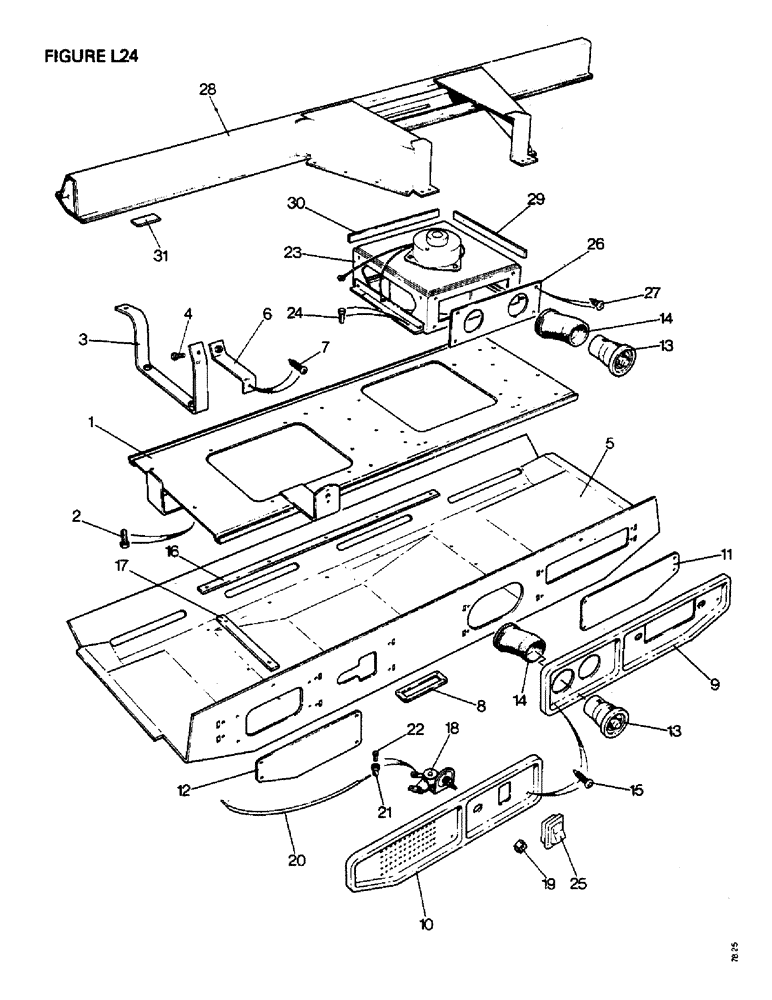

Запчасти Case IH 1412 (L24-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, HEATER AND VENTILATOR UNIT FOR CAB [EFF. SN NOTE A] (12) - CHASSIS

1

K955358

HEATER

BASEPLATE, cab heater

1шт.

2

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (baseplate to supports)

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (baseplate-supports)

6шт.

3

K952504

SUPPORT

BRACKET, baseplate

3шт.

4

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (support brackets to cab)

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (support, Serial Range: brackets-cab)

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (support brackets to cab)

4шт.

5

K955280

COVER

heater/ventilator unit

1шт.

6

K955384

SUPPORT BRACKET, heater cover

2шт.

7

K624794

SCREW

SELF-TAPPING SCREW, No. 6 x 1/2 in

14шт.

8

K952603

MOUNTING PARTS

MOUNTING PLATE, interior lamp

1шт.

K624046

RIVET

1/8 x 3/8 in, Serial Range: plate-cover

4шт.

9

K955281

PANEL

CONTROL PANEL, right-hand

1шт.

10

K955288

PANEL

CONTROL PANEL, left-hand

1шт.

11

K955382

COVER

radio aperture

1шт.

12

K955383

COVER

speaker aperture

1шт.

13

K955374

VENTILATOR

EYE-BALL VENTILATOR

2шт.

14

K955368

VENTILATOR

CONNECTOR, ventilator

2шт.

15

K624797

SCREW

SELF-TAPPING SCREW, No. 8 x 5/8 in

12шт.

K624596

CAPTIVE NUT, No. 8

12шт.

16

K952705

TAPE

SEALING STRIP, 6 x 12 mm x 25 3/4 in

2шт.

17

K952706

TAPE

SEALING STRIP, 6 x 12 mm x 9 1/2 in

2шт.

18

K952101

VALVE, CONTROL

CONTROL, water valve

1шт.

19

K952783

KNOB

water control

1шт.

20

K955385

CABLE

FLEXIBLE CABLE, inner and outer

1шт.

21

K952104

TRUNNION

No. 8 UNC

2шт.

22

K605578

SCREW

No. 8 UNC x 3/8 in

2шт.

23

K200018

FAN

UNIT, two speed

1шт.

24

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW, 1/4 UNC x 1/2 in (fan unit to baseplate)

4шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (fan, Serial Range: unit-baseplate)

4шт.

K607043

NUT

1/4 UNC (fan, Serial Range: unit-baseplate)

4шт.

25

K200023

SWITCH

heater fan, Lucas 30624

1шт.

26

K955622

OUTLET

PLATE

1шт.

27

K624520

SCREW

SELF-TAPPING SCREW, No. 4 x 1/4 in

2шт.

28

K951440

DUCT

DEMISTER DUCT

1шт.

29

K952699

SEALING STRIP

6 x 20 mm x 11 3/8 in

2шт.

30

K952700

TAPE

SEALING STRIP, 6 x 20 mm x 8 in

2шт.

31

K952701

TAPE

SEALING STRIP, 6 x 20 mm x 2 in

1шт.
