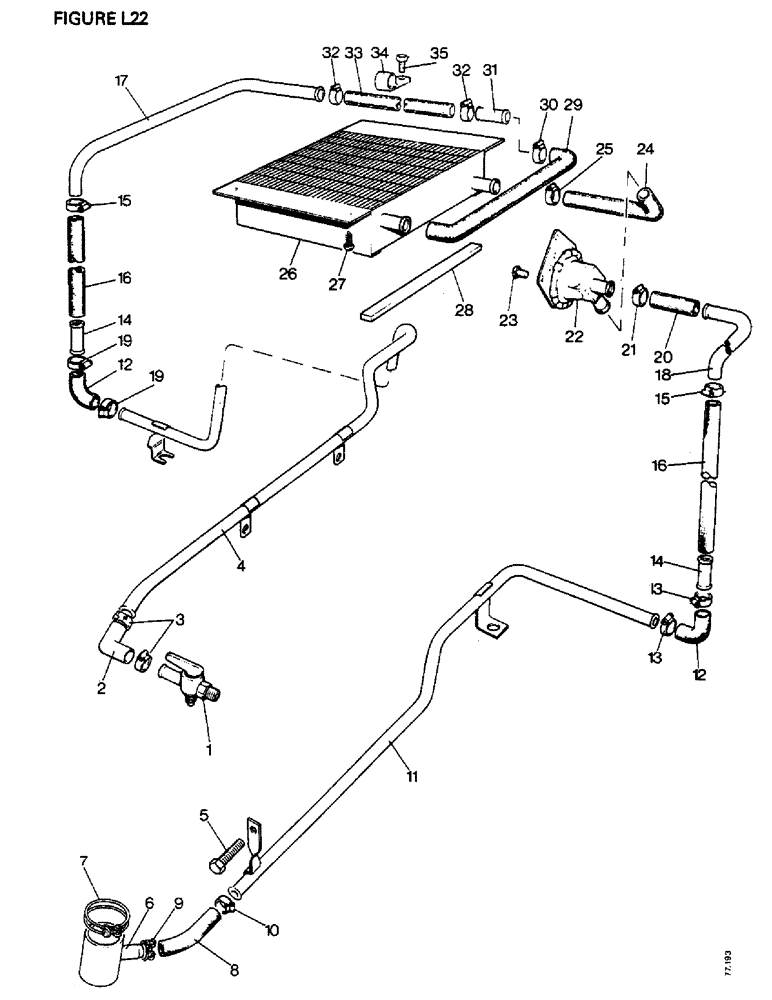

Запчасти Case IH 1412 (L22-1) - CHASSIS, BONNET, FENDERS, SAFETY FR. & CAB, CAB HEATER PIPES& FITTINGS, OPTIONAL EQUIP., 1410Q,1412Q (12) - CHASSIS

1

K952109

COCK

TAP, 3/8 BSP, water pump body

1шт.

2

K626806

FITTING

ELBOW, rubber

1шт.

3

K621770

HOSE

CLIP, 3/4 in

2шт.

4

K952806

PIPE

water supply

1шт.

5

K602808

SCREW

SETSCREW, 5/16 UNC x 1 3/8 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

6

K953814

ADAPTER

ADAPTOR, radiator outlet hose

1шт.

7

K622029

CLAMP

HOSE CLIP, 1 1/2 - 2 1/8 in

2шт.

8

K626807

HOSE

1/2 - 5/8 x 5 in, adaptor to return pipe

1шт.

9

K13070

HOSE

CLIP, 7/8 in

1шт.

10

K621770

HOSE

CLIP, 3/4 in

1шт.

11

K952859

PIPE

water return

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

280136

NUT,3/8"-16, G8

2шт.

12

626806

ELBOW, rubber

2шт.

13

K621770

HOSE

CLIP, 3/4 in

4шт.

14

K952106

CONNECTOR, ELEC

HOSE CONNECTOR, 1/2 x 1 1/2 in

2шт.

15

K621770

HOSE

CLIP, 3/4 in

4шт.

16

K626825

HOSE

1/2 x 63 in, cab pillars

2шт.

K627752

GROMMET

1 in diameter

2шт.

17

K952782

HEATER

PIPE, right-hand

1шт.

18

K952781

HEATER

PIPE, left-hand

1шт.

19

K621770

HOSE

CLIP, 3/4 in

2шт.

20

K626827

HOSE

1/2 x 3 in

1шт.

21

K621770

HOSE

CLIP, 3/4 in

2шт.

22

K952100

VALVE

WATER METERING VALVE

1шт.

23

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in (valve to mounting)

2шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (valve-mounting)

2шт.

K617080

NUT

No. 10 UNF, Serial Range: (valve-mounting)

2шт.

24

K953101

HOSE

, Serial Range: valve-radiator

1шт.

25

K621770

HOSE

CLIP, 3/4 in

2шт.

26

K951515

RADIATOR

cab heater

1шт.

27

K624524

SCREW

SELF-TAPPING SCREW, No. 6 x 3/8 in, Serial Range: (radiator-plate)

4шт.

28

K953102

SEAL

ING STRIP, 1/4 x 1/2 x 7 1/2 in, Serial Range: (radiator-plate)

2шт.

29

K953100

HOSE

, Serial Range: radiator-connector

1шт.

30

K621770

HOSE

CLIP, 3/4 in

2шт.

31

K952106

CONNECTOR, ELEC

HOSE CONNECTOR, 1/2 x 1 1/2 in

1шт.

32

K621770

HOSE

CLIP, 3/4 in

2шт.

33

K626826

HOSE

1/2 x 30 in

1шт.

34

K621709

CLIP

, Serial Range: (hose-heater)

2шт.

35

K614964

SCREW

SETSCREW, 1/4 UNF x 1/2 in, Serial Range: (hose-heater)

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: (hose-heater)

2шт.

K616980

NUT

1/4 UNF, Serial Range: (hose-heater)

2шт.
