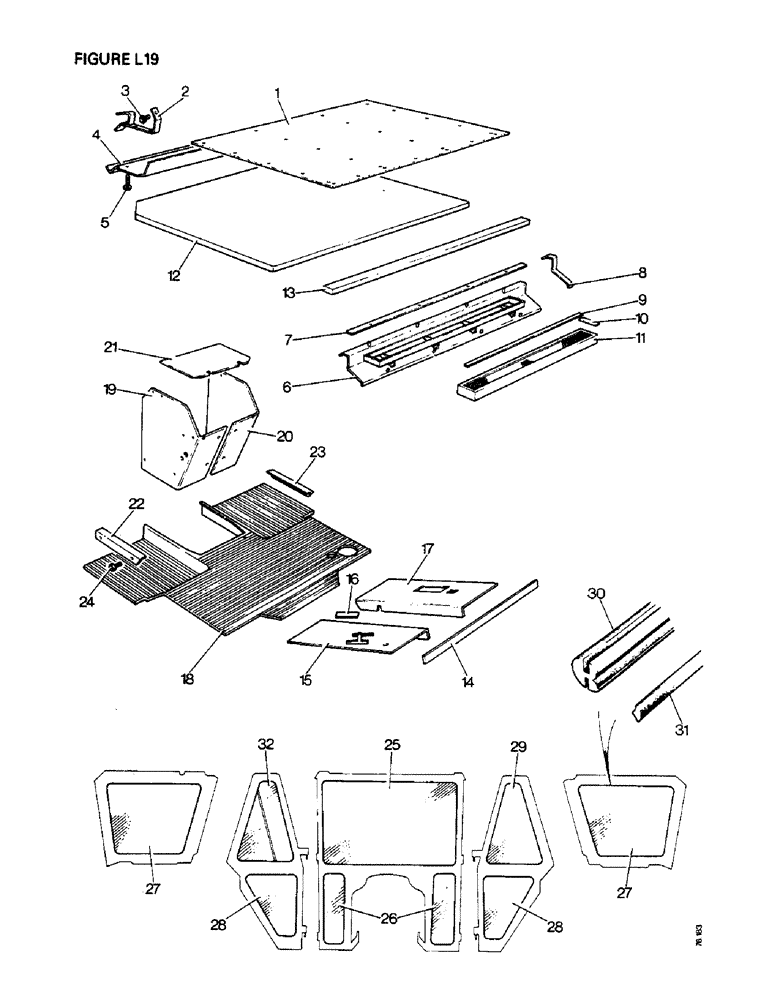

Запчасти Case IH 1412 (L19-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, CAB INTERNAL TRIM AND GLAZING (12) - CHASSIS

1a

K955185

DUCT

COVER, cab roof

1шт.

1410Q, 1412Q-11203600

1шт.

1b

K952468

DUCT

COVER, cab roof

1шт.

1410Q, 1412Q-11203600

1шт.

2

K952778

SUPPORT

BRACKET, top cover

3шт.

1410Q, 1412Q-11203600

1шт.

3

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in, Serial Range: (brackets-cab)

6шт.

1410Q, 1412Q-11203600

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (brackets-cab)

6шт.

1410Q, 1412Q-11203600

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (brackets to cab)

6шт.

1410Q, 1412Q-11203600

1шт.

4

K952725

COVER

TOP COVER

1шт.

1410Q, 1412Q-11203600

1шт.

5

K624527

SCREW

SELF-TAPPING SCREW, No. 6 x 1/2 in, Serial Range: (cover-brackets)

9шт.

1410Q, 1412Q-11203600

1шт.

K626760

WASHER

CUP WASHER, No. 6, Serial Range: (cover-brackets)

9шт.

1410Q, 1412Q-11203600

1шт.

6

K952190

DOOR

ACCESS DOOR, filter

1шт.

1410Q, 1412Q-11203600

1шт.

7a

K628236

SEAL

ING STRIP, 1/2 x 1 x 37 3/8 in (filter door)

1шт.

1410Q, 1412Q-11203600

1шт.

7b

K952475

SEAL

ING STRIP, 5 x 20 mm x 37 1/2 in (filter door)

2шт.

1410Q, 1412Q-11203600

1шт.

8a

K628238

SEAL

ING STRIP, 1/2 x 1/2 x 6 1/2 in (filter door)

2шт.

1410Q, 1412Q-11203600

1шт.

8b

K952476

SEAL

ING STRIP, 5 x 20 mm x 8 5/8 (filter door)

2шт.

1410Q, 1412Q-11203600

1шт.

9a

K628235

SEAL

ING STRIP, 1/2 x 1 x 32 in, Serial Range: (filter-roof)

1шт.

1410Q, 1412Q-11203600

1шт.

9b

K628237

SEAL

ING STRIP, 1/2 x 1 x 37 1/2, Serial Range: (filter-roof)

1шт.

1410Q, 1412Q-11203600

1шт.

9c

K952477

SEAL

ING STRIP, 5 x 12 mm x 32 in, Serial Range: (filter-roof)

2шт.

1410Q, 1412Q-11203600

1шт.

10a

K628239

SEAL

ING STRIP, 1/2 x 1 x 4 1/4 in, Serial Range: (filter-roof)

2шт.

1410Q, 1412Q-11203600

1шт.

10b

K952769

SEAL

ING STRIP, 5 x 12 mm x 4 in, Serial Range: (filter-roof)

2шт.

1410Q, 1412Q-11203600

1шт.

11

K952133

FILTER

AIR FILTER, cab ventilation

1шт.

1410Q, 1412Q-11203600

1шт.

12a

K955545

FOAM

INSULATING TRIM, cab roof

1шт.

1410Q, 1412Q-11203600

1шт.

K955521

INSULATOR

INSULATING TRIM, upper, right-hand side

1шт.

1410Q, 1412Q-11203600

1шт.

K955522

INSULATOR

INSULATING TRIM, upper, left-hand side

1шт.

1410Q, 1412Q-11203600

1шт.

12b

K950396

INSULATOR

cab roof

1шт.

1410Q, 1412Q-11203600

1шт.

13

K953080

INSULATOR

INSULATING STRIP, cab roof

1шт.

1410Q, 1412Q-11203600

1шт.

14

K952698

STRIP

INSULATOR, rear cross member

1шт.

1410Q, 1412Q-11203600

1шт.

15a

K955461

INSULATOR

left-hand rear

1шт.

1410Q, 1412Q-11203600

1шт.

15b

K951046

COVER

INSULATOR, left-hand rear

1шт.

1410Q, 1412Q-11203600

1шт.

16

K951389

FLOOR

INSULATING STRIP, left-hand

1шт.

1410Q, 1412Q-11203600

1шт.

17a

K955460

INSULATOR

right-hand rear

1шт.

1410Q, 1412Q-11203600

1шт.

17b

K951047

COVER

INSULATOR, right-hand rear

1шт.

1410Q, 1412Q-11203600

1шт.

18

K950268

INSULATOR

INSULATING MAT, cab floor

1шт.

19

K951050

PANEL, SIDE

INSULATOR, console left-hand

1шт.

20

K951049

INSULATOR

console, right-hand

1шт.

1410Q, 1412Q-11203600

1шт.

21a

K955459

INSULATOR

console top

1шт.

1410Q, 1412Q-11203600

1шт.

21b

K950397

INSULATOR

console top

1шт.

K955611

LACING, BELT

SOUND PROOF TRIM, left-hand side panel

1шт.

1410Q, 1412Q-11203600

1шт.

K955610

LACING, BELT

SOUND PROOF TRIM, right-hand side panel

1шт.

1410Q, 1412Q-11203600

1шт.

K955177

CABLE

COVER, left-hand side lamp leads

1шт.

1410Q, 1412Q-11203600

1шт.

K955176

CABLE

COVER, right-hand side lamp leads

1шт.

1410Q, 1412Q-11203600

1шт.

K603924

SCREW

1/4 UNC x 1/2 in

2шт.

1410Q, 1412Q-11203600

1шт.

K19470

WASHER

1/4 in

2шт.

1410Q, 1412Q-11203600

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

1410Q, 1412Q-11203600

1шт.

22

K950608

PLATE

TREAD PLATE, left-hand

1шт.

23

K950607

PLATE

TREAD PLATE, right-hand

1шт.

24

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (plates to cab floor)

4шт.

K626682

WASHER

5/16 in (plates to cab floor)

4шт.

K19481

SPRING WASHER

WINDSCREEN GLASS

1шт.

26

K951053

GLASS

BULKHEAD PANEL GLASS

1шт.

K955178

GLASS

SIDE PANEL GLASS, left-hand

1шт.

1410Q, 1412Q-11203600

1шт.

27

K772654

WINDOW

SIDE PANEL GLASS [A]

2шт.

28

K950362

GLASS

DOOR WINDOW GLASS, lower

2шт.

29a

K955193

DOOR

WINDOW GLASS

2шт.

1410Q, 1412Q-11203600

1шт.

29b

K950361

DOOR

WINDOW GLASS, upper left-hand

1шт.

1410Q, 1412Q-11203600

1шт.

30

K692078

RUBBER STRIP

WINDOW GLAZING STRIP, order in metres

1шт.

31

K629079

FILLER STRIP, for K692078, order in metres

1шт.

32

K951637

WINDOW

SCOOP WINDOW ASSEMBLY, right-hand door

1шт.

1410Q, 1412Q-11203600

1шт.

K965205

GLASS

PANEL, fixed

1шт.

1410Q, 1412Q-11203600

1шт.

K965204

GLASS

PANEL, opening

1шт.

1410Q, 1412Q-11203600

1шт.

K965203

PIVOT

NYLON PIVOT, stay to opening panel

2шт.

1410Q, 1412Q-11203600

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in (window stay to door)

4шт.

1410Q, 1412Q-11203600

1шт.

K626340

RING

SPRING WASHER, 3/16 in (window, Serial Range: stay-door)

4шт.

1410Q, 1412Q-11203600

1шт.

K626310

WASHER

3/16 in (window, Serial Range: stay-door)

4шт.

1410Q, 1412Q-11203600

1шт.

K200034

X

SUN VISOR

1шт.

1410Q, 1412Q-11203600

1шт.

K614498

SCREW

No. 10 UNF x 1/2 in

3шт.

1410Q, 1412Q-11203600

1шт.
