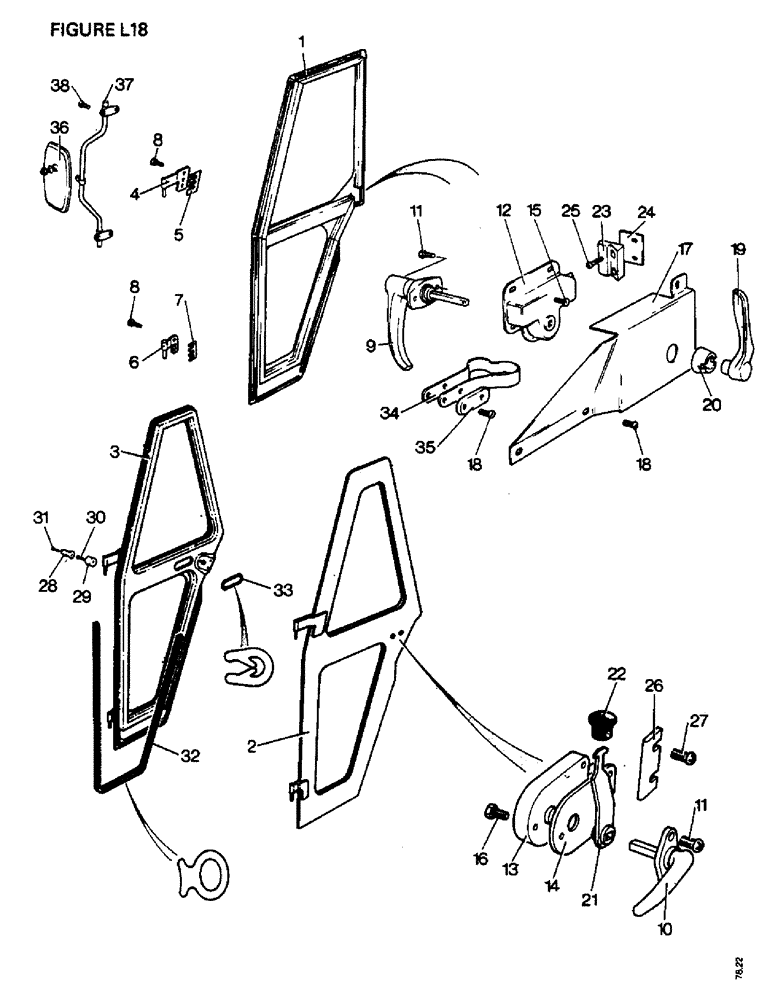

Запчасти Case IH 1412 (L18-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, CAB DOORS AND DOOR FITTINGS (12) - CHASSIS

1

K955488

CAB

DOOR, right-hand

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

2

K950358

DOOR

CAB DOOR, left-hand

1шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

3a

K955195

DOOR

CAB DOOR, left-hand

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

3b

K950357

CAB

DOOR, right-hand

1шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

K626779

WASHER

THRUST WASHER, door hinge

2шт.

4a

K955423

HINGE

upper, left-hand door

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

4b

K955492

HINGE

upper, right-hand door

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

5

K955484

DOOR

PACKING PLATE, upper hinges

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

6a

K955421

HINGE

lower, left-hand door

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

6b

K955494

HINGE

lower, right-hand door

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

7

K955498

DOOR

PACKING PLATE, lower hinges

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

8

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (hinges to doors)

12шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K626682

WASHER

5/16 in, Serial Range: (hinges-doors)

12шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (hinges-doors)

12шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

9

K955435

HANDLE

outer, locking

2шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

10

K949336

HANDLE

outer

2шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

11

K614498

SCREW

No. 10 UNF x 1/2 in

4шт.

12a

K955426

LOCK ASSY

LATCH, left-hand door

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

12b

K955496

LOCK

LATCH, right-hand door

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

13a

K951133

LOCK

LATCH, left-hand door

1шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

13b

K773203

DOOR

LATCH, right-hand door

1шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

14

K950206

RETAINER

PLATE, door latch

1шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

15

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SETSCREW, No. 10 UNF x 1/2 in (latches to doors)

8шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

16

K615408

SCREW,Pan, #10 - 32 x 1"

SETSCREW, No. 10 UNF x 1/2 in, Serial Range: (latches-doors)

6шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (latches-doors)

6шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (latches-doors)

8шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

17a

K955419

LATCH

COVER, left-hand door latch

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

17b

K955497

DOOR

COVER, right-hand door latch

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

18

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

1/4 UNC x 5/8 in

10шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K19470

WASHER

1/4 in

6шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

10шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

19

K955448

HANDLE

LEVER, inner

2шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K955447

SHIM

Inner lever

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

20

K955446

SPACER

ESCUTCHEON, inner handle

2шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

21

K950360

LEVER

inner

2шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

22

K901738

KNOB

inner lever

2шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

23

K955167

DOOR

STRIKER PLATE, door latch

2шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

24

K955169

DOOR

PACKING PLATE, door striker plates

1шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

25

K614945

SCREW

No. 10 UNF x 5/8 in

4шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K626340

RING

SPRING WASHER, 3/16 in ]

4шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K617080

NUT

No. 10 UNF

4шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

26

K948970

STOP

PLATE, door latch

2шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

27

K603931

SCREW

1/4 UNC x 1 1/4 in

4шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

4шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

K607251

NUT

DOMED NUT, 1/4 UNC

4шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

28

K953495

DOOR

RETAINER, male

2шт.

29

K953496

DOOR

RETAINER, female

2шт.

30

K606521

SCREW

SOCKET SCREW, 1/4 UNC x 7/8 in

2шт.

31

K603926

SCREW

1/4 UNC x 3/4 in

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

K607043

NUT

1/4 UNC

2шт.

32

K949338

DOOR SEAL

DRAUGHT EXCLUDER, order in metres

1шт.

33

K951136

SEALING STRIP

EDGING STRIP, order in metres

1шт.

34

K955485

STRAP

door pull

2шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

K955499

STRAP

COVER, door pull strap

2шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

35

K955486

DOOR

RETAINER, door strap

4шт.

1410Q, 1412Q (EFF. S/N NOTE A)

1шт.

36

K950922

MIRROR

DRIVING MIRROR

1шт.

K965040

MIRROR

GLASS, driving mirror

1шт.

37

K950921

ARM

SUPPORT BRACKET, driving mirror

1шт.

38

K603926

SCREW

1/4 UNC x 3/4 in

4шт.
