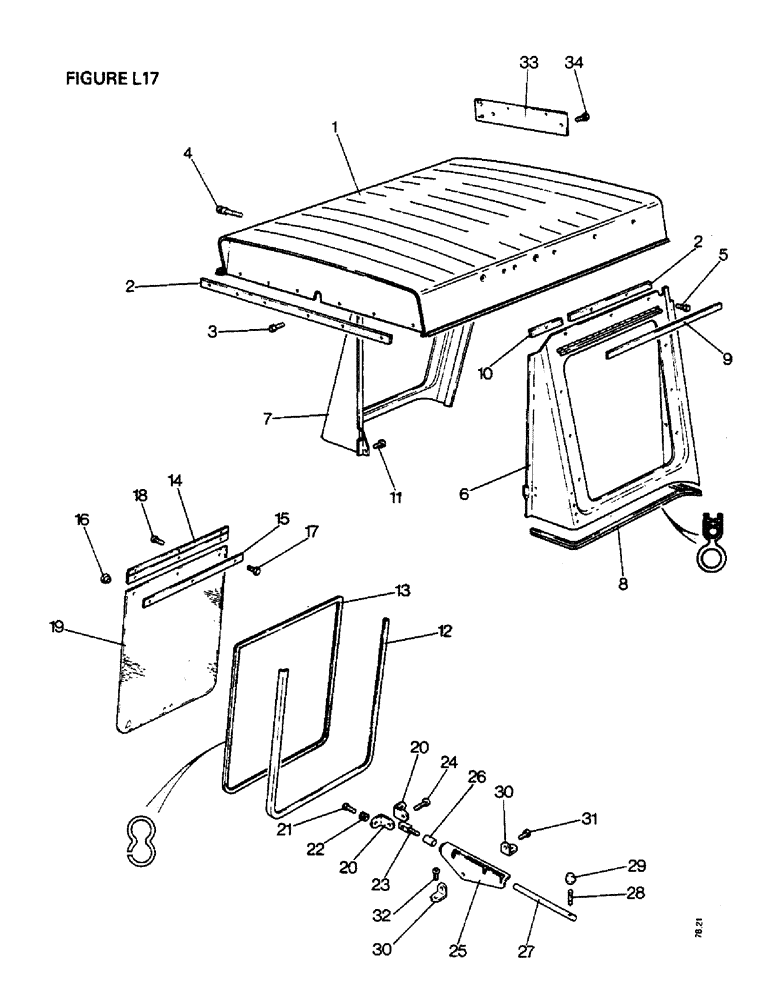

Запчасти Case IH 1412 (L17-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, CAB ROOF AND SIDE PANELS (12) - CHASSIS

1a

K955188

CAB

ROOF

1шт.

1b

K952164

ROOF

CAB ROOF [A]

1шт.

2

K692017

RUBBER STRIP

PLASTIC STRIP, 1 in x 1/16 in, order in metres, Serial Range: (roof-front)

1шт.

3

K603926

SCREW

SETSCREW, 1/4 UNC x 3/4 in, Serial Range: (roof-front)

8шт.

3

K603926

SCREW

SETSCREW, 1/4 UNC x 3/4 in, Serial Range: (roof-front)

6шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: (roof-front)

8шт.

K627745

GROMMET

3/4 in, roof panel

4шт.

4

K950477

BOLT

LIFTING BOLT

4шт.

K692065

BOLT

THREADED INSERT, 1/4 UNC (roof and side panels to upper frame)

28шт.

K692065

BOLT

THREADED INSERT, 1/4 UNC (roof and side panels to upper frame)

20шт.

5

K603926

SCREW

SETSCREW, 1/4 UNC x 3/4 in (roof and side panels to upper frame)

26шт.

5

K603926

SCREW

SETSCREW, 1/4 UNC x 3/4 in (roof and side panels to upper frame)

20шт.

K19470

WASHER

1/4 in (roof and side panels to upper frame)

26шт.

K19470

WASHER

1/4 in (roof and side panels to upper frame)

20шт.

K626552

WASHER

SHAKEPROOF WASHER, 1/4 in (roof and side panels to upper frame)

26шт.

K626552

WASHER

SHAKEPROOF WASHER, 1/4 in (roof and side panels to upper frame)

20шт.

6a

K955174

PANEL

SIDE PANEL, left-hand

1шт.

6b

K950469

PLATE

SIDE PANEL, left-hand

1шт.

7a

K955173

PLATE

SIDE PANEL, right-hand

1шт.

7b

K950470

PANEL

SIDE PANEL, right-hand

1шт.

8

K691979

PANEL

SEALING STRIP, order in metres (side panels)

1шт.

9

K692156

PLASTIC STRIP, 1 in x 1/16 in, order in metres (side panels)

1шт.

10

K950219

STRIP

PLASTIC STRIP, 8 in [A]

2шт.

11

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in (side, Serial Range: panels-fenders)

2шт.

K626682

WASHER

5/16 in (side, Serial Range: panels-fenders)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (side, Serial Range: panels-fenders)

2шт.

12

K955702

PANEL

EDGING, right-hand panel

1шт.

13

K955706

SLEEVE

DRAUGHT EXCLUDER, panel to opening window

1шт.

14

K955728

HINGE

right-half window

1шт.

15

K955703

STRIP

BACKING STRIP

1шт.

16

K955706

SLEEVE

RUBBER BUSH

3шт.

17

K602735

SCREW

SETSCREW, 1/4 UNC x 3/4 in

3шт.

18

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

1/4 UNC x 5/8 in

3шт.

K19470

WASHER

1/4 in

6шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

3шт.

K607251

NUT

DOMED NUT, 1/4 UNC

3шт.

K607043

NUT

1/4 UNC

3шт.

19

K955192

GLASS

WINDOW GLASS, right-hand side panel

1шт.

20

K955714

BRACKET

ANGLE BRACKET

2шт.

21

K691892

SCREW

1/4 UNC x 1 in

2шт.

22

K955707

GROMMET

RUBBER BUSH

2шт.

23

K955713

SCREW

PIVOT SCREW

1шт.

24

K603931

SCREW

1/4 UNC x 1 1/4 in

1шт.

K19470

WASHER

1/4 in

5шт.

K607300

NUT

NYLOC NUT, 1/4 UNC

3шт.

K956195

BOLT

WINDOW CATCH ASSEMBLY, Includes: Ref. 25 - 31

1шт.

25

K955708

BOLT

BARREL

1шт.

26

K955711

BUSHING

NYLON BUSH

1шт.

27

K955712

BOLT

1шт.

28

K955715

STUD

3/8 - 1/4 UNC

1шт.

29

K950493

KNOB

1шт.

30

K955714

BRACKET

ANGLE BRACKET

2шт.

31

K603297

SCREW, 1/4 UNC x 7/8 in

1шт.

K19470

WASHER

1/4 in

1шт.

K607300

NUT

NYLOC NUT, 1/4 UNC

1шт.

32

K603926

SCREW

1/4 UNC x 3/4 in, Serial Range: (catch-fender)

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: (catch-fender)

2шт.

K607043

NUT

1/4 UNC, Serial Range: (catch-fender)

2шт.

1410Q, 1412Q (Up to S/N NOTE A)

1шт.

33

K952425

PLATE

NUMBER PLATE

1шт.

33

K691892

SCREW

1/4 UNC x 1 in

4шт.

34

K604093

SCREW

SETSCREW, 1/4 UNC x 1/2 in

2шт.

K627705

GROMMET

1/2 in, lamp lead

1шт.
