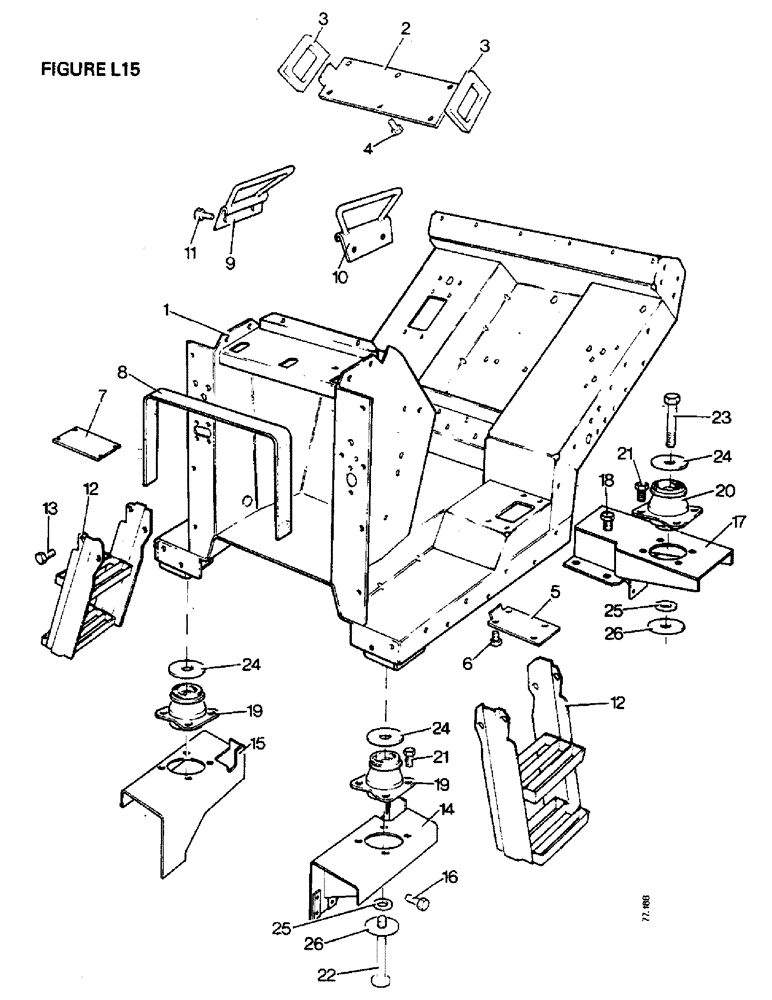

Запчасти Case IH 1412 (L15-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, CAB FLOOR AND MOUNTINGS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1a
K955436
CAB
FLOOR (eff. S/N Note B)
1шт.
1410Q, 1410Q 4WD, 1412Q-11203600
1шт.
1b
K949333
CAB
FLOOR (up to S/N Note B)
1шт.
1410Q, 1410Q 4WD, 1412Q-11203600
1шт.
K627710
PLUG
RUBBER PLUG, 3/4 in diameter
1шт.
K627753
GROMMET
special, fuel gauge sender access hole (eff. S/N Note B)
1шт.
1410Q, 1410Q 4WD, 1412Q-11203600
1шт.
K627731
GROMMET
RUBBER GROMMET, 2 1/4 in hole (eff. S/N Note B)
1шт.
1410Q, 1410Q 4WD, 1412Q-11203600
1шт.
K627738
GROMMET
RUBBER GROMMET, 7/8 in diameter
1шт.
1410Q
1шт.
1410Q 4WD
1шт.
K627738
GROMMET
RUBBER GROMMET, 7/8 in diameter
2шт.
1412Q
1шт.
K627743
PLUG
RUBBER GROMMET, 11/32 in diameter
4шт.
1410Q
1шт.
K627743
PLUG
RUBBER GROMMET, 11/32 in diameter
2шт.
1412Q
1шт.
1410Q 4WD
1шт.
K627744
GROMMET
RUBBER GROMMET, 11/32 in diameter
2шт.
K627742
GROMMET
RUBBER GROMMET, 15/32 in diameter, control cables
2шт.
1410Q
1шт.
K627742
GROMMET
RUBBER GROMMET, 15/32 in diameter, control cables
4шт.
1412Q
1шт.
1410Q 4WD
1шт.
K627740
GROMMET
RUBBER GROMMET, 1 1/32 in diameter
1шт.
1410Q
1шт.
1412Q
1шт.
K627748
GROMMET
RUBBER GROMMET, 7/8 in diameter
1шт.
K627731
GROMMET
RUBBER GROMMET, 1 3/4 in diameter, blind
1шт.
K628092
PLUG,Cap, .547" OD
PLASTIC PLUG, 1/2 in diameter
1шт.
2
K950492
PLATE
BLANKING PLATE, cross beam aperture
1шт.
3
K950603
PAD
SEALING PAD (plate to cab floor)
2шт.
4
K602983
SCREW
SETSCREW, 3/8 UNC x 7/8 in (plate to cab floor)
6шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in (plate to cab floor)
6шт.
280136
NUT,3/8"-16, G8
(Plate to cab floor) 3/8"-16, G8
6шт.
5
K950382
COVER
PLATE, shift lever aperture
1шт.
6
K602735
SCREW
SETSCREW, 1/4 UNC x 3/4 in (plate to cab floor)
4шт.
K626341
SPRING WASHER
SPRING WASHER, 1/4 in (plate to cab floor)
4шт.
K627731
GROMMET
1 3/4 in diameter, blind (plate to cab floor) [B]
1шт.
1412Q
1шт.
K627732
GROMMET
1 3/4 in diameter, split (plate to cab floor)
1шт.
1410Q
1шт.
1410Q 4WD
1шт.
7
K952246
COVER
PLATE
1шт.
1412Q
1шт.
86625206
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
No. 10 UNF x 1/2 in
4шт.
1412Q
1шт.
8
K953103
STRIP
RUBBER STRIP, bonnet seating
1шт.
9
K950983
HANDLE
GRAB HANDLE, right-hand
1шт.
10
K950984
HANDLE
GRAB HANDLE, left-hand
1шт.
11
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
SETSCREW, 5/16 UNC x 3/4 in
4шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 UNC
4шт.
12a
K954660
STEP
(eff. S/N Note A)
2шт.
1410Q, 1410Q 4WD, 1412Q-11202423
1шт.
12b
K950225
STEP
(up to S/N Note A)
2шт.
1410Q, 1410Q 4WD, 1412Q-11202423
1шт.
13
K602846
SCREW,5/16" - 18 x 5/8", Gr S
SETSCREW, 5/16 UNC x 5/8 in (steps to cab floor)
7шт.
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
SETSCREW, 5/16 UNC x 1 in (steps to cab floor) (eff. S/N Note A)
1шт.
1410Q, 1410Q 4WD, 1412Q-11202423
1шт.
K602846
SCREW,5/16" - 18 x 5/8", Gr S
SETSCREW, 5/16 UNC x 5/8 in (steps to cab floor) (up to S/N Note A)
1шт.
1410Q, 1410Q 4WD, 1412Q-11202423
1шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in (steps to cab floor)
8шт.
K607081
LOCK NUT
LOCKNUT, 51/6 UNC (steps to cab floor) (eff. S/N Note A)
1шт.
1410Q, 1410Q 4WD, 1412Q-11202423
1шт.
14
K949483
MOUNTING PARTS
MOUNTING BRACKET, left-hand front
1шт.
15
K949479
MOUNTING PARTS
MOUNTING BRACKET, right-hand front
1шт.
16
K603275
SCREW
BOLT, 5/8 UNC x 1 5/8 in
8шт.
K19485
WASHER
SPRING WASHER, 5/8 in
8шт.
17a
K949900
CAB
MOUNTING BRACKET, right-hand, rear
1шт.
1410Q
1шт.
1412Q
1шт.
17b
K949901
CAB
MOUNTING BRACKET, left-hand, rear
1шт.
1410Q
1шт.
1412Q
1шт.
17c
K951601
CAB
MOUNTING BRACKET, right-hand, rear
1шт.
1410Q 4WD
1шт.
17d
K951606
CAB
MOUNTING BRACKET, left-hand, rear
1шт.
1410Q 4WD
1шт.
18
K603275
SCREW
BOLT, 5/8 UNC x 1 5/8 in (brackets to rear axle case and reductions)
8шт.
K19485
WASHER
SPRING WASHER, 5/8 in (brackets to rear axle case and reductions)
8шт.
K952704
SHIM
1/16 in (brackets to rear axle case and reductions)
1шт.
19
K949839
BUMPER
RUBBER MOUNTING, front
2шт.
20
K949838
DAMPER
RUBBER MOUNTING, rear
2шт.
21
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
(Rubber mountings to brackets) Hex, 3/8"-16 x 1", G5, Full Thd
16шт.
K19472
WASHER
3/8 in (rubber, Serial Range: mountings-brackets)
16шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in (rubber, Serial Range: mountings-brackets)
16шт.
280136
NUT,3/8"-16, G8
(Rubber mountings to brackets) 3/8"-16, G8
16шт.
22
K601324
BOLT
5/8 UNC x 3 3/4 in, front
2шт.
23
K601332
BOLT
5/8 UNC x 4 in, rear
2шт.
24
K949668
WASHER
5/8 x 3 5/16 in grooved, special
2шт.
25
K626930
WASHER
5/8 x 1 1/8 in, special
4шт.
26a
K626931
WASHER
5/8 x 3 1/2 in, speical
4шт.
1410Q
1шт.
1412Q
1шт.
26b
K955087
WASHER
4шт.
1410Q 4WD
1шт.
K19485
WASHER
SPRING WASHER
4шт.
K626855
WASHER
4шт.
Выбрано товаров: 101
