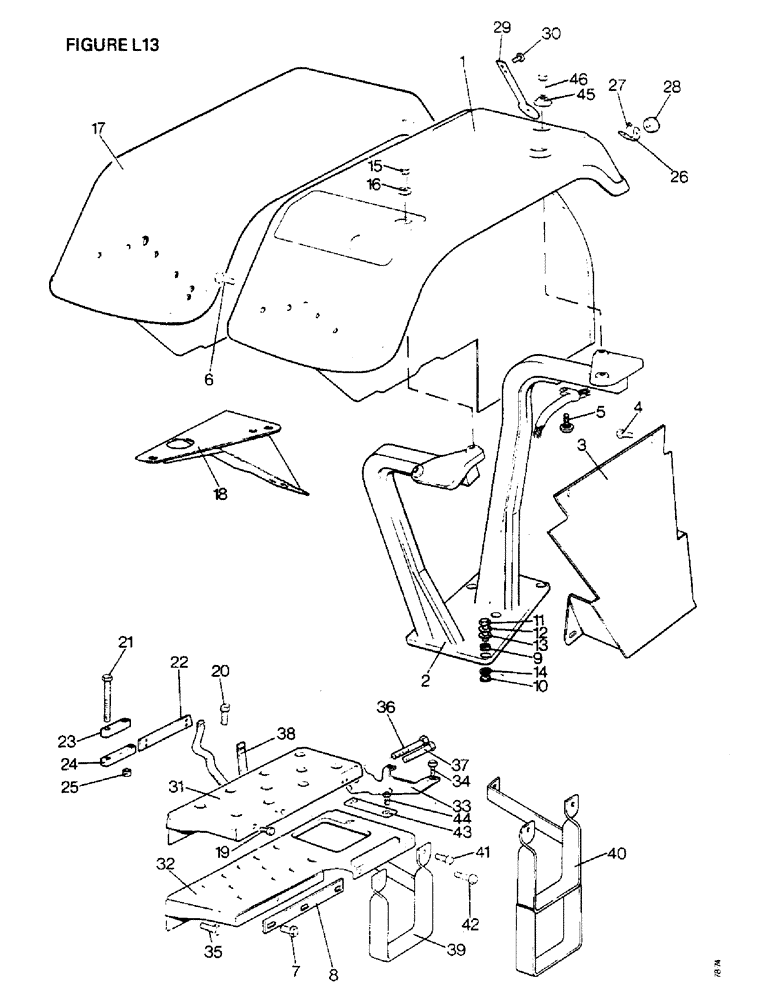

Запчасти Case IH 1412 (L13-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, FENDERS AND FRAME PLATFORMS [ TRACTORS W/O CAB] (12) - CHASSIS

1a

K775053

RIM

FULL FENDER, reinforced, right-hand

1шт.

1410, 1412

1шт.

1412G

1шт.

1b

K775038

WHEEL

FULL FENDER, reinforced, left-hand

1шт.

1410, 1412

1шт.

1412G

1шт.

2a

K774467

FRAME

SUPPORT, right-hand fender

1шт.

1410, 1412

1шт.

1412G

1шт.

2b

K774466

FRAME

SUPPORT, left-hand fender

1шт.

1410, 1412

1шт.

1412G

1шт.

3a

K774743

GUARD

MUD SHIELD, right-hand fender

1шт.

1410, 1412

1шт.

1412G

1шт.

3b

K774737

GUARD

MUD SHIELD, left-hand fender

1шт.

1410, 1412

1шт.

1412G

1шт.

4

K602740

SCREW

1/4 UNC, special (mud, Serial Range: shields-fender)

8шт.

1410, 1412

1шт.

1412G

1шт.

K626682

WASHER

5/16 in (mud, Serial Range: shields-fender)

8шт.

1410, 1412

1шт.

1412G

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (mud, Serial Range: shields-fender)

8шт.

1410, 1412

1шт.

1412G

1шт.

K607043

NUT

1/4 UNC (mud, Serial Range: shields-fender)

8шт.

1410, 1412

1шт.

1412G

1шт.

5

K602740

SCREW

1/4 UNC, special, Serial Range: harness-fenders

8шт.

6

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (supports to fenders)

16шт.

K626682

WASHER

5/16 in, Serial Range: (supports-fenders)

16шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (supports-fenders)

16шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (supports to fenders)

16шт.

7

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in (fenders to frame platforms)

6шт.

8

K772133

STRIP

CLAMPING STOP (fenders to frame platforms)

2шт.

K626682

WASHER

5/16 in (fenders to frame platforms)

12шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (fenders to frame platforms)

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (fenders to frame platforms)

6шт.

9

K774463

ADJUSTER

10шт.

10

K774464

BUSHING

BUSH (adjuster to rear axle case and reduction housing)

10шт.

11

K601360

BOLT

5/16 UNC x 2 1/2 in (adjuster to rear axle case and reduction housing)

10шт.

12

K692107

WASHER

special (adjuster to rear axle case and reduction housing)

10шт.

K19485

WASHER

SPRING WASHER, 5/8 in (adjuster to rear axle case and reduction housing)

10шт.

13

K774465

WASHER

CLAMPING WASHER (adjuster to rear axle case and reduction housing)

10шт.

14

K692108

WASHER

special (adjuster to rear axle case and reduction housing)

10шт.

15

K603274

SCREW

SETSCREW, 5/8 UNC x 1 1/2 in (safety, Serial Range: frame-fenders)

8шт.

16

K691826

WASHER

5/8 in special (safety, Serial Range: frame-fenders)

8шт.

K19485

WASHER

SPRING WASHER, 5/8 in (safety, Serial Range: frame-fenders)

8шт.

17a

K945768

FENDER

FULL FENDER, light duty, right-hand

1шт.

1410, 1412

1шт.

17b

K945767

FENDER

FULL FENDER, light duty, left-hand

1шт.

1410, 1412

1шт.

17c

K953839

FENDER

FULL FENDER, right-hand

1шт.

1410 4WD

1шт.

17d

K953840

FENDER

FULL FENDER, left-hand

1шт.

1410 4WD

1шт.

18a

K953384

SUPPORT, right-hand, Serial Range: reduction-fender

1шт.

1410 4WD

1шт.

18b

K953383

FENDER

SUPPORT, left-hand, Serial Range: reduction-fender

1шт.

1410 4WD

1шт.

19

K602735

SCREW

SETSCREW, 1/4 UNC x 3/4 in (fenders to frame platforms)

4шт.

1410 4WD

1шт.

1410, 1412

1шт.

K19470

WASHER

1/4 in (fenders to frame platforms)

8шт.

1410 4WD

1шт.

1410, 1412

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (fenders to frame platforms)

4шт.

1410 4WD

1шт.

1410, 1412

1шт.

K607043

NUT

1/4 UNC (fenders to frame platforms)

4шт.

1410 4WD

1шт.

1410, 1412

1шт.

20

K603276

SCREW

BOLT, 5/8 in UNC x 1 7/8 in (fenders and supports to rear axle and reductions)

10шт.

1410 4WD

1шт.

1410, 1412

1шт.

K601360

BOLT

5/8 UNC x 2 1/2 in (fenders and supports to rear axle and reductions)

2шт.

1410 4WD

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Fenders and supports to rear axle and reductions 5/8"-11, G5

4шт.

1410 4WD

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in (fenders and supports to rear axle and reductions)

10шт.

1410, 1412

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in (fenders and supports to rear axle and reductions)

12шт.

1410 4WD

1шт.

K627713

PLUG

3шт.

1410, 1412

1шт.

21

K601336

BOLT

5/8 UNC x 3 1/4 in (raised fenders to rear axle and reductions)

10шт.

1410, 1412

1шт.

22

K950573

PLATE

BRIDGE PLATE, fender (raised fenders to rear axle and reductions)

2шт.

1410, 1412

1шт.

23

K950570

BUSHING

SPACER, inner, fender (raised fenders to rear axle and reductions)

2шт.

1410, 1412

1шт.

24

K950571

BUSHING

SPACER, outer, fender (raised fenders to rear axle and reductions)

2шт.

1410, 1412

1шт.

25

K950572

BUSHING

SPACER, rear, fender (raised fenders to rear axle and reductions)

2шт.

1410, 1412

1шт.

K602735

SCREW

SETSCREW, 1/4 UNC x 3/4 in (raised fenders to frame platform)

8шт.

1410, 1412

1шт.

K19470

WASHER

1/4 in (raised fenders to frame platform)

16шт.

1410, 1412

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (raised fenders to frame platform)

8шт.

1410, 1412

1шт.

K607043

NUT

1/4 UNC (raised fenders to frame platform)

8шт.

1410, 1412

1шт.

26

K929468

BRACKET

reflector

2шт.

1410 4WD

1шт.

1410, 1412

1шт.

27

K603924

SCREW

1/4 UNC x 1/2 in (reflector, Serial Range: bracket-fender)

4шт.

1410 4WD

1шт.

1410, 1412

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (reflector, Serial Range: bracket-fender)

4шт.

1410 4WD

1шт.

1410, 1412

1шт.

K607043

NUT

1/4 in (reflector, Serial Range: bracket-fender)

4шт.

1410 4WD

1шт.

1410, 1412

1шт.

28

K964716

REFLECTOR

2шт.

1410 4WD

1шт.

1410, 1412

1шт.

K626340

RING

SPRING WASHER, 3/16 in, Serial Range: (reflector-bracket)

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

K11109

NUT

2BA, Serial Range: (reflector-bracket)

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

29

K928193

RUBBER STRAP, reflector

2шт.

1412G

1шт.

30

K603926

SCREW

1/4 UNC x 3/4 in (German, Serial Range: reflector-fender)

4шт.

1412G

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (German, Serial Range: reflector-fender)

4шт.

1412G

1шт.

K607043

NUT

1/4 UNC (German, Serial Range: reflector-fender)

4шт.

1412G

1шт.

31a

K947621

FRAME

PLATFORM, right-hand

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

31b

K947619

FRAME

PLATFORM, left-hand

1шт.

1410 4WD

1шт.

1410, 1412

1шт.

32a

K947623

FRAME

EXTENDED FRAME PLATFORM, right-hand

1шт.

32b

K951203

FRAME

EXTENDED FRAME PLATFORM, left-hand, replaces K947625

1шт.

33

K949434

LEVER

GUSSET

2шт.

34

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Gusset to frame platform) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

K19472

WASHER

3/8 in (gusset to frame platform)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (gusset to frame platform)

4шт.

35

K603003

SCREW

SETSCREW, 7/16 UNC x 1 in (platform to main frame)

11шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in (platform to main frame)

11шт.

36

K600815

BOLT

1/2 UNC x 3 1/4 in (gusset to main frame)

1шт.

37

K600817

BOLT

1/2 UNC x 3 3/4 in (gusset to main frame)

1шт.

38

K919715

STEP

STIRRUP, frame platform, light duty fenders

1шт.

1410, 1412

1шт.

39a

K944305

STEP

STIRRUP, right-hand, extended platform

1шт.

1410, 1412

1шт.

1412G

1шт.

39b

K944304

X

STIRRUP, left-hand, extended platform

1шт.

1410, 1412

1шт.

1412G

1шт.

40a

K952237

STEP

STIRRUP, right-hand, extended platform

1шт.

1410 4WD

1шт.

40b

K952236

STEP

STIRRUP, left-hand, extended platform

1шт.

1410 4WD

1шт.

41

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in (stirrups to platforms and main frame)

4шт.

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in (stirrups to platforms and main frame)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (stirrups to platforms and main frame)

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (stirrups to platforms and main frame)

5шт.

42

K603005

SCREW

SETSCREW, 7/16 UNC x 1 1/4 in (stirrups to platforms and main frame)

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in (stirrups to platforms and main frame)

1шт.

K948024

X

PEDAL STOP ASSEMBLY, extended platform, Includes: Ref. 43 and 44

1шт.

43

K948026

STOP

PLATE

1шт.

44

K612803

SCREW

SETSCREW, 5/16 UNF x 3/4 in, Serial Range: (stop-platform)

2шт.

K626682

WASHER

5/16 in, replaces K948025, Serial Range: (stop-platform)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (stop-platform)

2шт.

K617001

NUT

5/16 UNF, Serial Range: (stop-platform)

2шт.

45

K773988

FASTENER

CONICAL WASHER, not used with safety frame

8шт.

46

K603274

SCREW

SETSCREW, 5/8 UNC x 1 1/2 in

8шт.
