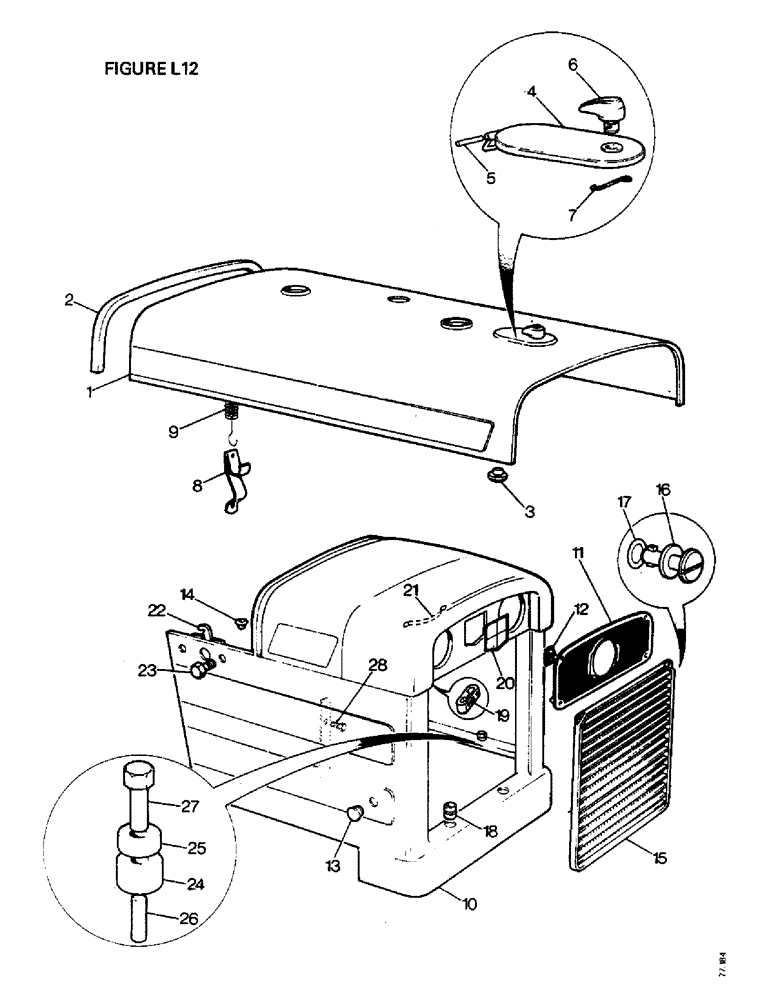

Запчасти Case IH 1412 (L12-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, BONNET ASSEMBLY (12) - CHASSIS

1

K953474

GUARD

BONNET TOP ASSEMBLY, Replaces K946704

1шт.

2

K915789

BEAD

ING

1шт.

K624151

RIVET

1/8 x 1/8 in

9шт.

3

K916596

PLUG

RUBBER PLUG

4шт.

4

K962015

COVER

HATCH COVER

1шт.

5

K914557

SPRING

PIN, hatch pivot

1шт.

6

K942158

LEVER

hatch fastener

1шт.

K626956

WASHER

FIBRE WASHER, 7/16 in

1шт.

K626899

SHIM

BRASS WASHER, 7/16 in

1шт.

K621588

RING, SNAP

CIRCLIP, 7/16 in external

1шт.

7

K917749

FASTENER

SPRING, hatch fastener

1шт.

K11405

RIVET

1/8 x 3/8 in

2шт.

K19495

WASHER

1/8 in

2шт.

8

K915791

GRIP

FINGER GRIP

2шт.

9

K624911

SPRING

2шт.

10

K963630

GUARD

BONNET FRONT

1шт.

11

K915871

GRILLE

LOUVRE PLATE (outboard headlamp)

1шт.

1410, 1412

1шт.

12a

K624587

RETAINER

RETAINING BUSH, louvre plate (outboard headlamp)

6шт.

1410, 1412

1шт.

13

K627999

PLUG

bonnet-side (inboard headlamp)

2шт.

12b

K914804

PLUG

bonnet nose (inboard headlamp)

4шт.

14

K921172

SHIM

GROMMET, bonnet top location

2шт.

15

K948100

GUARD

LOUVRE, bonnet front

1шт.

16

K951633

STUD

FASTENER, replaces K947634

2шт.

17

K623534

O-RING,0.352" OD x 0.103" Width

'O' RING, 23/64 in

2шт.

18

K24589

GROMMET

2шт.

19

K946846

HOLDER

CATCH, stud fastener

2шт.

20

K951132

DECAL

MOTIF, transfer (eff. S/N Note A)

1шт.

1410, 1412, 1412G: 1050288

1шт.

20b

K947387

DECAL

MOTIF, plastic (up to S/N Note A)

1шт.

1410, 1412, 1412G: 1050288

1шт.

21

K916776

SPRING

RETAINER, motif (K947387) to bonnet (up to S/N Note A)

1шт.

1410, 1412, 1412G: 1050288

1шт.

22

K915758

LOCK

bonnet, right-hand

1шт.

K915759

LOCK

bonnet, left-hand

1шт.

23

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in (locks to bonnet front)

4шт.

K626310

WASHER

3/16 in (locks to bonnet front)

4шт.

K626340

RING

SPRING WASHER, 3/16 in (locks to bonnet front)

4шт.

K617080

NUT

No. 10 UNF (locks to bonnet front)

4шт.

24

K915799

RUBBER

PACKING, lower (bonnet front to front extension)

4шт.

25

K915800

MISC PACKAGING

PACKING, upper (bonnet front to front extension)

4шт.

26

K608128

STUD

5/16 UNC x 1 3/8 in (bonnet front to front extension)

4шт.

K626669

WASHER

5/16 in, packing (bonnet front to front extension)

1шт.

K626686

WASHER

1/2 in (bonnet front to front extension)

4шт.

27

K915801

CLEVIS PIN

NUT, 5/16 UNC special (bonnet front to front extension)

4шт.

28

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in (bonnet to radiator frame)

6шт.

K19470

WASHER

1/4 in (bonnet to radiator frame)

6шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in (bonnet to radiator frame)

6шт.
