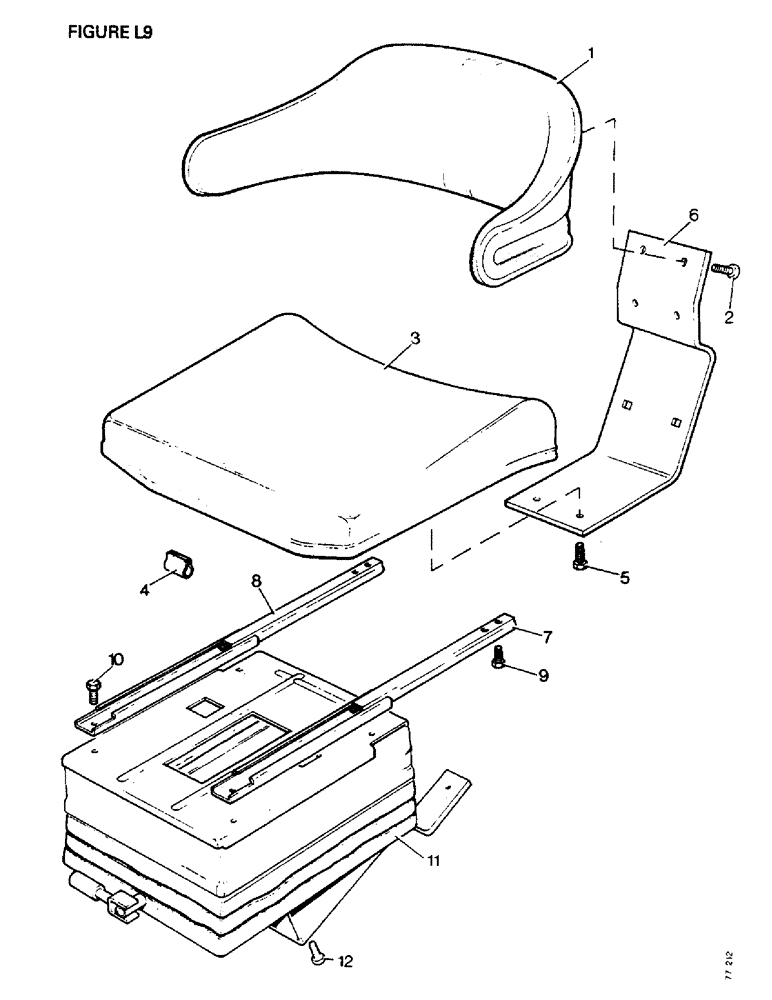

Запчасти Case IH 1412 (L09-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, ARMCHAIR SEAT, TRACTORS W/ CAB (12) - CHASSIS

K953182

SEAT

AND SUSPENSION ASSEMBLY, Includes: Ref. 1 - 11

1шт.

K953183

SEAT

CUSHION AND BACKREST, Includes: Ref. 1 - 6

1шт.

1

K964635

SEAT

BACKREST

1шт.

2

K650029

SCREW

M8 x 20 mm

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

4шт.

3

K964634

CUSHION

SEAT CUSHION

1шт.

4

K964809

CLIP

11шт.

5

K650029

SCREW

M8 x 20 mm

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

4шт.

6

K964639

SUPPORT

BRACKET

1шт.

7

K964682

SEAT

RUNNER, upper and lower halves, left-hand

1шт.

8

K964681

SEAT

RUNNER, upper and lower halves, right-hand, with lever

1шт.

9

K964640

SCREW

M8 x 20 mm

4шт.

K964644

WASHER

15/16 x 7/16 x 5/32 in

4шт.

K964690

WASHER

15/16 x 7/16 x 1/16 in

4шт.

K11517

WASHER

SHAKEPROOF WASHER, 7/16 in

4шт.

10

K964633

SCREW

M8 x 15 mm

4шт.

K11517

WASHER

SHAKEPROOF WASHER, 7/16 in

4шт.

11

K953184

SEAT

SUSPENSION ASSEMBLY, see figure L8

1шт.

12

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (seat to cab)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (seat-cab)

4шт.
