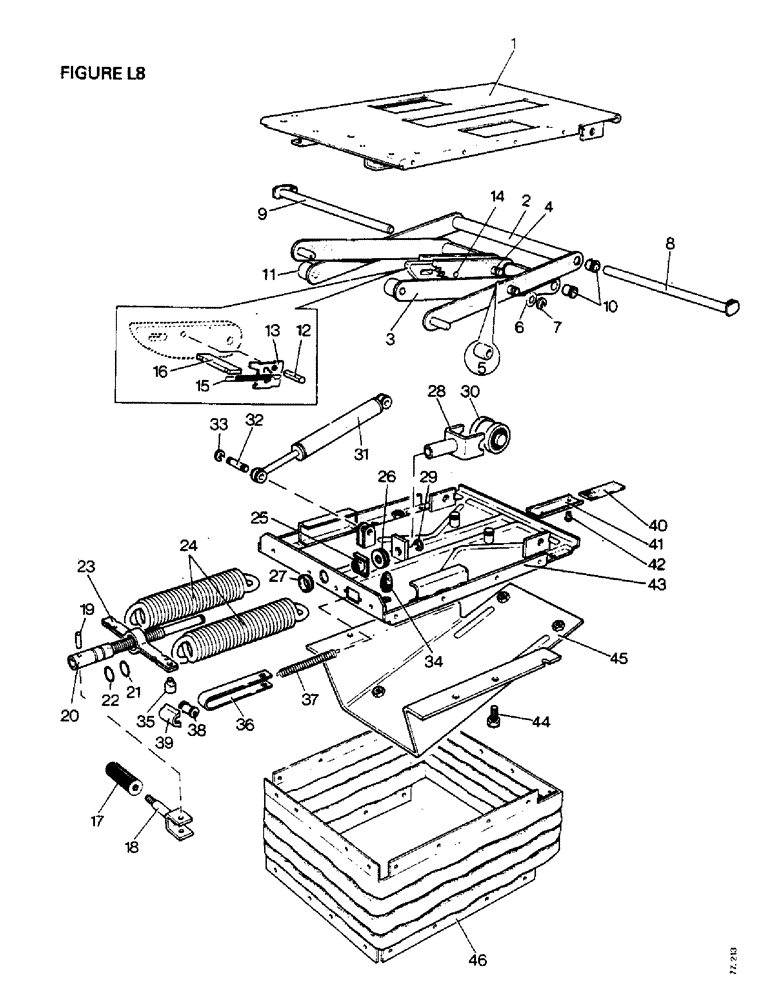

Запчасти Case IH 1412 (L08-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, SUSPENSION FOR ARMCHAIR SEAT, TRACTORS W/ CAB (12) - CHASSIS

K953184

SEAT

SUSPENSION ASSEMBLY, part of K953182 (figure L10), Includes: Ref. 1 - 46

1шт.

1

K964636

PLATE

TOP PLATE

1шт.

2

K964663

FRAME

SCISSORS, outer half

1шт.

3

K964664

FRAME

SCISSORS, inner half

1шт.

4

K964676

PIN

BRASS PEG, scissors inner half

2шт.

5

K965085

BUSHING

NYLON BUSH

2шт.

6

K626686

WASHER

1/2 in

2шт.

7

K621587

RING, SNAP

'E' CLIP

2шт.

8

K964659

SHAFT

PIVOT SHAFT, 10 1/8 in, upper

1шт.

9

K964660

SHAFT

PIVOT SHAFT, 8 13/16 in, lower

1шт.

10

K964668

BUSHING

BUSH

4шт.

11

K964667

ROLLER

nylon, 13/16 x 1/2 x 5/8 in

4шт.

12

K964675

PIN

1шт.

13

K964658

CAM

PLATE

2шт.

14

K964677

SPRING

BRASS PEG, spring anchor

2шт.

15

K964662

SPRING

2шт.

16

K964661

SPRING

RETAINER, springs

1шт.

K964647

ADJUSTER

spring tension, Includes: Ref. 17 - 22

1шт.

17

K964641

KNOB

1шт.

18

K964642

FORK

1шт.

19

K964643

PIN

1шт.

20

K964646

SHAFT

SCREWED SHAFT

1шт.

21

K964678

O-RING

'O' RING, red

1шт.

22

K964679

O-RING

'O' RING, black

1шт.

23

K964648

SPRING

CARRIER

1шт.

24

K964651

SPRING

2шт.

25

K964672

NUT

CAPTIVE NUT

1шт.

K964690

WASHER

15/16 x 5/16 x 1/16 in

1шт.

26

K964673

BEARING

NEEDLE ROLLER BEARING

1шт.

K964674

WASHER

1 3/16 x 3/8 x 1/8 in

1шт.

27

K964649

BUSHING

NYLON BUSH

1шт.

28

K964657

FORK

1шт.

29

K621592

RING, SNAP

'E' CLIP, 7/32 in

1шт.

30

K964656

BEARING

NEEDLE ROLLER BEARING

1шт.

31

K964655

SHOCK ABSORBER

HYDRAULIC DAMPER

1шт.

32

K964654

PIN

9/32 x 1 1/8 in

2шт.

33

K621592

RING, SNAP

'E' CLIP, 7/32 in

4шт.

34

K962434

STOP

RUBBER BUMP STOP

2шт.

35

K964670

INDICATOR

NYLON BUTTON, Serial Range: tape-carrier

1шт.

36

K964650

INDICATOR

TAPE

1шт.

37

K964680

SPRING

ELASTIC BAND

1шт.

38

K964653

ROLLER

NYLON ROLLER

1шт.

39

K964638

COVER

PLASTIC COVER, roller

1шт.

40

K964669

PAD

RUBBER PAD

1шт.

41

K964671

PLATE

BEARING PLATE

1шт.

42

K964683

RIVET

plate to base plate

2шт.

43

K964637

BASE

PLATE

1шт.

44

K650029

SCREW

M8 x 20 mm

6шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

6шт.

45

K953185

SEAT

SUPPORT BRACKET

1шт.

46

K964684

COVER

suspension assembly

1шт.

K964645

RIVET

plastic

30шт.
