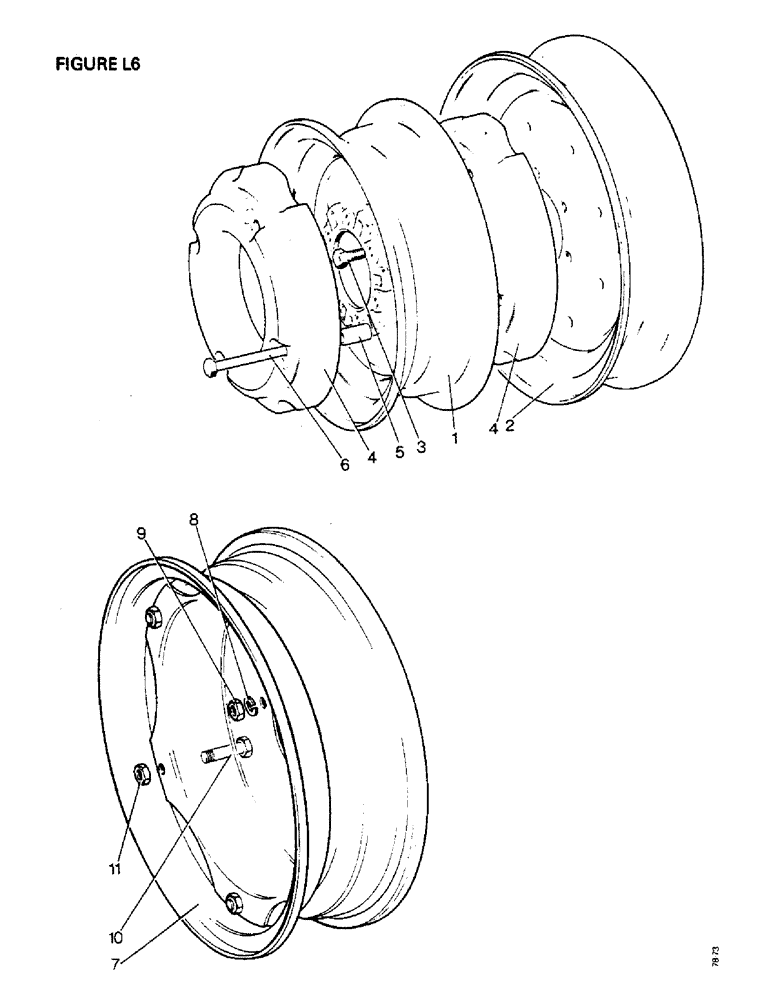

Запчасти Case IH 1412 (L06-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, FRONT WHEELS AND BALLAST WEIGHTS (12) - CHASSIS

1

K947941

WHEEL

FRONT WHEEL, 5.50F x 16 in, fits 7.50-16 in tyres

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

2a

K949731

RIM

FRONT WHEEL, 5.50F x 18 in, fits 7.50-18 in tyres

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

2b

K952716

WHEEL

FRONT WHEEL, 8.00LBM x 15 in, fits 11L x 15 in tubeless tyres

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

3

K600875

BOLT

WHEEL BOLT, 1/2 UNC x 1 7/8 in

12шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

4

K909316

WEIGHT

BALLAST WEIGHT, 85 lb (U475, optional equipment for use with K947941)

4шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

5

K909324

BUSHING

SPACER TUBE (U475, optional equipment for use with K947941)

8шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

6

K600831

BOLT

1/2 UNC x 7 1/2 in (U475, optional equipment for use with K947941)

8шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (U475, optional equipment for use with K947941)

8шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

K607004

NUT

1/2 UNC (U475, optional equipment for use with K947941)

8шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

7

K954353

WHEEL

FRONT WHEEL, adjustable track, Includes: Ref. 8 - 11

2шт.

1410 4WD, 1410Q 4WD

1шт.

8

K951825

SPRING

WASHER, 20 mm

16шт.

1410 4WD, 1410Q 4WD

1шт.

9

K951824

WHEEL

NUT, M20

16шт.

1410 4WD, 1410Q 4WD

1шт.

10

K953703

BOLT

RIM BOLT, M14 x 117 mm

6шт.

1410 4WD, 1410Q 4WD

1шт.

K953705

WASHER

14 mm

6шт.

1410 4WD, 1410Q 4WD

1шт.

11

K953704

NUT

M14

6шт.

1410 4WD, 1410Q 4WD

1шт.
