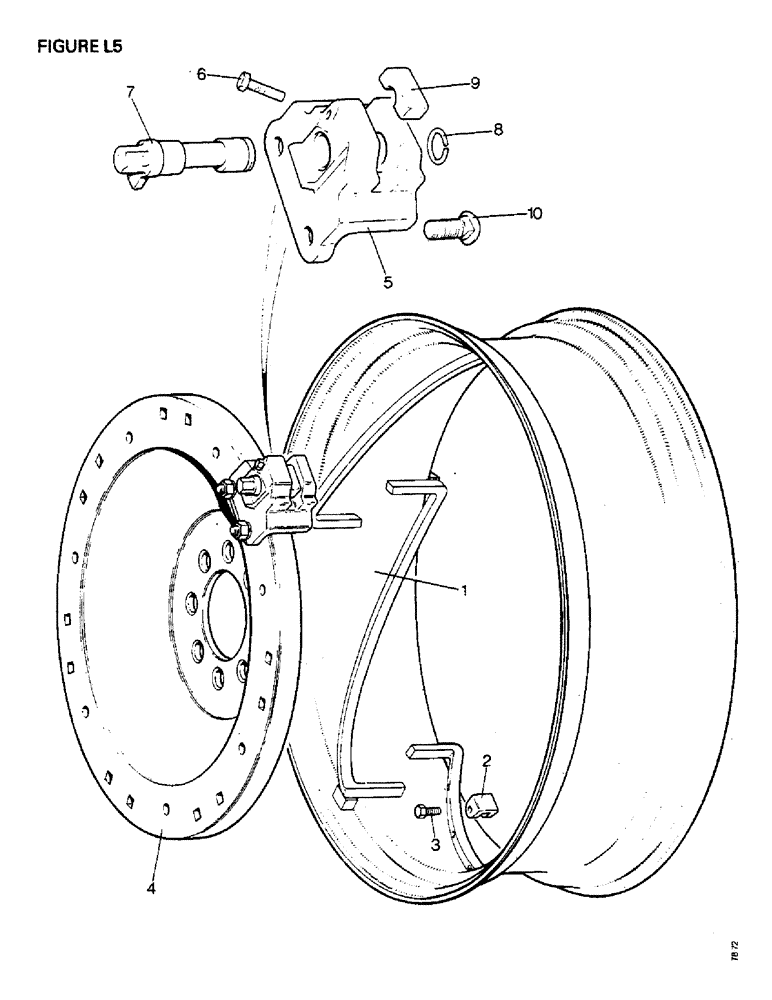

Запчасти Case IH 1412 (L05-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, POWER ADJUSTED REAR WHEELS (12) - CHASSIS

K950388

RIM

REAR RIM AND CENTRE ASSEMBLY, W16L x 34, fits 18.4 x 15-34 tyres, Includes: Ref. 1 - 10

2шт.

1

K950389

RIM

REAR WHEEL RIM, W16L x 34

1шт.

2

K917337

STOP

BRACKET, wheel rim

2шт.

3

K917338

STOP

SETSCREW, stop bracket

2шт.

4

K909326

KIT

REAR WHEEL CENTRE, (Replaces K950390)

1шт.

K965177

RIM

CLAMP ASSEMBLY, Replaces K964577, Includes: Ref. 5 - 7B

7шт.

5

K950391

BRACKET

BODY

1шт.

6a

K300005

BRACKET

SCREW, body (for K965177)

1шт.

7a

K200128

PIN

ECCENTRIC PIN (for K965177)

1шт.

8

K917341

RING

SNAP RING, eccentric pin

1шт.

6b

K950392

SCREW

body (for K964577)

1шт.

7b

K917339

PIN

ECCENTRIC PIN (for K964577)

1шт.

9

K917342

BLOCK

7шт.

10

K601323

BOLT

COACH BOLT, 5/8 UNC x 1 5/8 in

14шт.

K19485

WASHER

SPRING WASHER, 5/8 in

14шт.

K607035

NUT

5/8 UNC

14шт.
