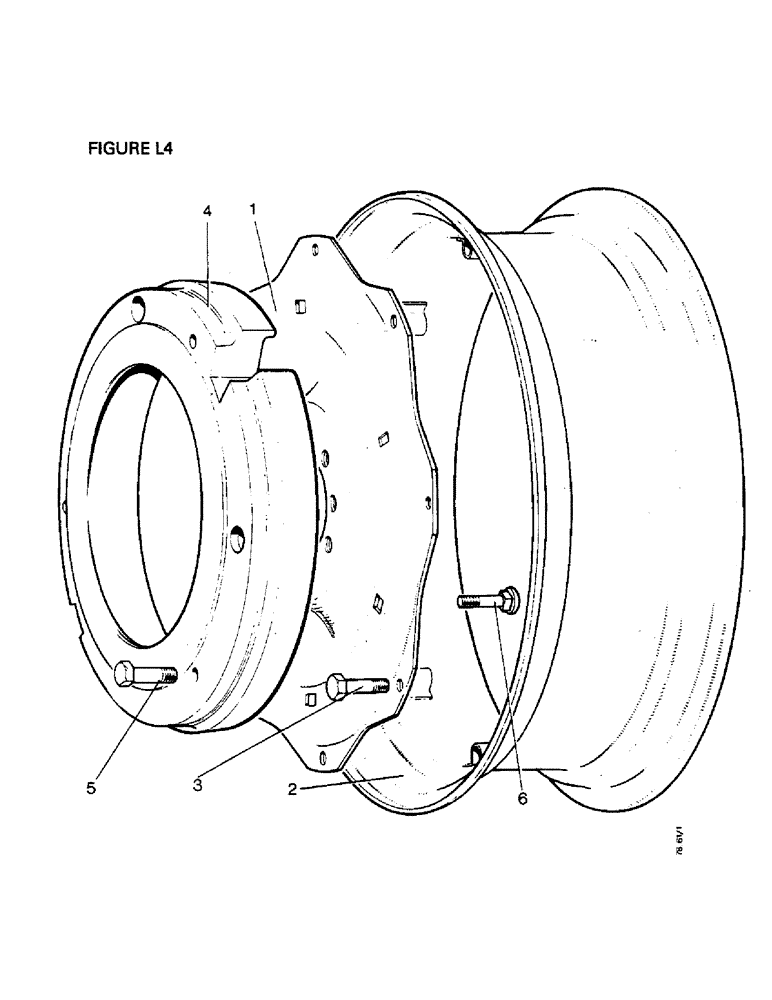

Запчасти Case IH 1412 (L04-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, REAR WHEELS AND BALLAST WEIGHTS (12) - CHASSIS

K947004

WHEEL

REAR RIM AND CENTRE ASSEMBLY, DW14 x 34 in, fits 16.9/14-34 tyres, Includes: Ref. 1A and 2A

2шт.

1a

K947006

WHEEL

REAR WHEEL CENTRE

1шт.

2a

K947005

WHEEL

REAR WHEEL RIM

1шт.

K947131

WHEEL

REAR RIM AND CENTRE ASSEMBLY, DW12 x 38 in, fits 13.6/12-38 tyres, Includes: Ref. 1B and 2B

2шт.

1b

K947133

WHEEL

REAR WHEEL CENTRE

1шт.

2b

K947132

WHEEL

REAR WHEEL RIM

1шт.

K948338

RIM

REAR RIM AND CENTRE ASSEMBLY, DW14 x 38 in, fits 15.5-38 tyres, Includes: Ref. 1C and 2C

2шт.

1410, 1412, 1412G

1шт.

1c

K947133

WHEEL

REAR WHEEL CENTRE

1шт.

1410, 1412, 1412G

1шт.

2c

K948339

WHEEL

REAR WHEEL RIM

1шт.

1410, 1412, 1412G

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT, 5/8 UNF x 2 7/8 in

16шт.

K19475

WASHER

5/8 in

16шт.

425-1110

NUT,5/8"-18, G5

16шт.

4

K945830

WHEEL

BALLAST WEIGHT, 96 lb (U1649 optional equipment)

4шт.

5

K601360

BOLT

5/8 UNC x 2 1/2 in (U1649 optional equipment)

6шт.

6

K611279

BOLT

5/8 UNC x 2 1/2 in (U1649 optional equipment)

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in (U1649 optional equipment)

12шт.

425-1110

NUT,5/8"-18, G5

(U1649 optional equipment) 5/8"-18, G5

6шт.
