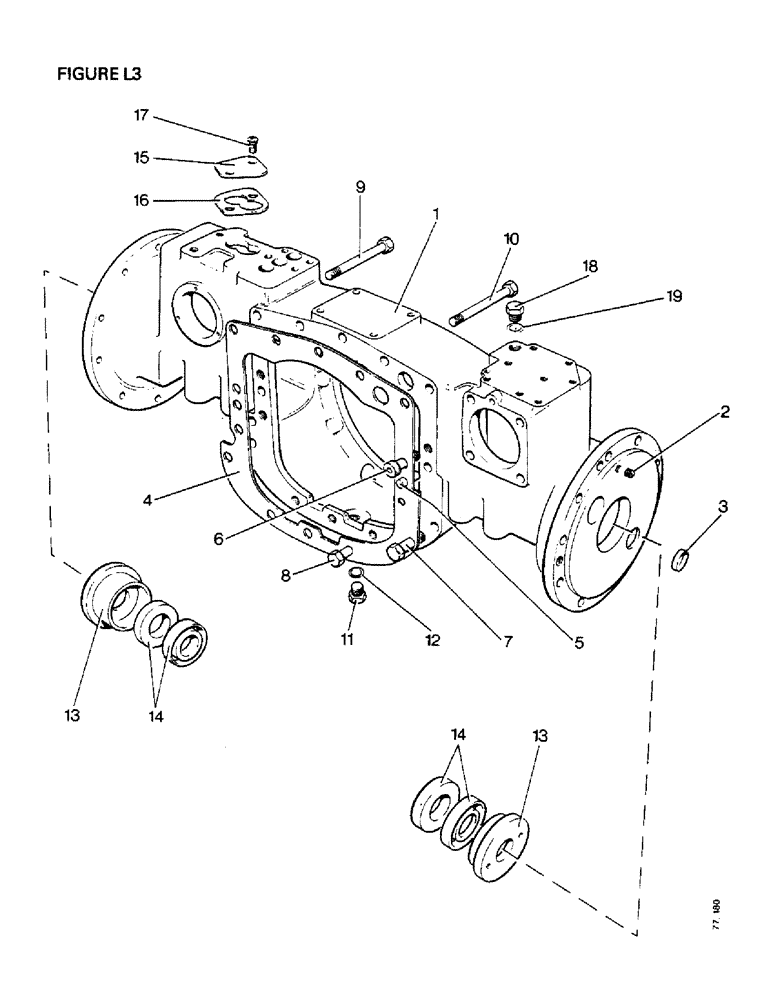

Запчасти Case IH 1412 (L03-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, REAR AXLE CASE AND COVERS (12) - CHASSIS

1

K926694

SHAFT

REAR AXLE CASE

1шт.

2

K947891

BREATHER

PLUG

2шт.

3

K611279

BOLT

CORE PLUG, 1 1/8 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

4

K944571

GASKET,0.25mm Thk

(rear axle case to main frame rear)

1шт.

5

K900105

PIN

DOWEL, 5/8 x 1 7/16 in (rear axle case to main frame rear)

2шт.

6

K606718

SCREW

1/2 UNC x 3 in (rear axle case to main frame rear)

2шт.

K11518

WASHER

SHAKEPROOF WASHER, 1/2 in (rear axle case to main frame rear)

2шт.

7

K600819

BOLT

1/2 UNC x 4 1/2 in (rear axle case to main frame rear)

2шт.

7

K600806

BOLT

1/2 UNC x 2 in (rear axle case to main frame rear)

2шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (rear axle case to main frame rear)

4шт.

8

K601212

BOLT

5/8 UNC x 3 in (rear axle case to main frame rear)

1шт.

8

K601381

BOLT

5/8 UNC x 8 1/4 in (rear axle case to main frame rear)

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in (rear axle case to main frame rear)

3шт.

9

K601381

BOLT

5/8 UNC x 8 1/4 in (rear axle case to gearbox cover)

3шт.

K19485

WASHER

SPRING WASHER, 5/8 in (rear axle case to gearbox cover)

3шт.

10

K600894

BOLT

1/2 UNC x 8 in (rear axle case to gearbox cover)

2шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (rear axle case to gearbox cover)

2шт.

11

K623826

PLUG

DRAIN PLUG, 3/4 BSP

1шт.

12

K626315

WASHER

SEALING WASHER, 1 1/16 in

1шт.

13

K62356

HOUSING

oil seals

2шт.

14

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

OIL SEAL, 1 3/4 x 3 3/16 x 1/2 in

4шт.

15

K929463

COVER

PLATE

1шт.

16

K929464

GASKET

(cover plate to rear axle case)

1шт.

17

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in (cover plate to rear axle case)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (cover plate to rear axle case)

2шт.

18

K619528

PLUG

oil return port

1шт.

19

K30085

GASKET

FIBRE WASHER, 7/8 in

1шт.
