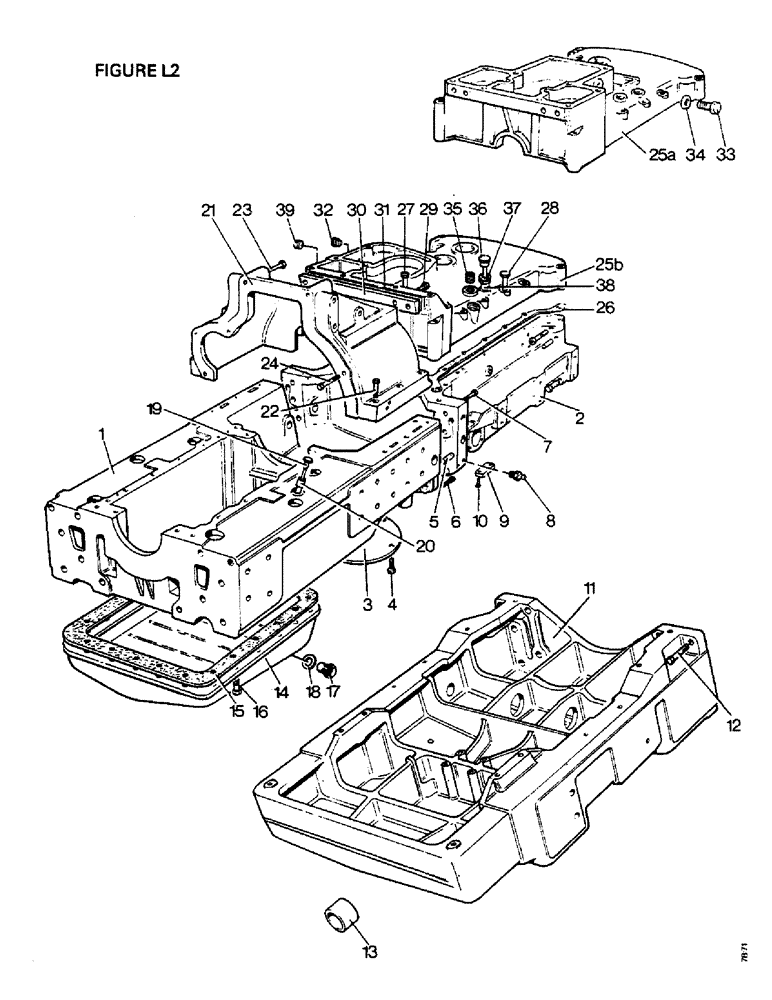

Запчасти Case IH 1412 (L02-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, MAIN FRAME AND COVERS, TRACS. W/O CAB (12) - CHASSIS

1

K948211

FRAME

MAIN FRAME, front

1шт.

2a

K952347

FRAME

MAIN FRAME, rear (eff. S/N Note A)

1шт.

1410

1шт.

1412

1шт.

1410, 1412, 1412G-11200753

1шт.

2b

K947865

FRAME

MAIN FRAME, rear (up to S/N Note A)

1шт.

1410

1шт.

1410, 1412, 1412G-11200753

1шт.

2c

K947026

FRAME

MAIN FRAME, rear (up to S/N Note A)

1шт.

1412

1шт.

1410, 1412, 1412G-11200753

1шт.

2d

K952496

FRAME

MAIN FRAME, rear

1шт.

1410 4WD

1шт.

2e

K952346

FRAME

MAIN FRAME, rear

1шт.

1412G

1шт.

K628084

PLUG

5/8 in, plastic

26шт.

K606021

SCREW

GRUBSCREW, 5/16 UNC x 5/16 in, main frame rear (up to S/N Note A)

3шт.

1412

1шт.

1410, 1412, 1412G-11200753

1шт.

1412G

1шт.

K623798

PLUG

CORE PLUG, oil sight gauge aperture

1шт.

3

K919622

PLATE

COVER PLATE, clutch pit

1шт.

K11933

PIN

SPLIT PIT, 1/8 x 5/8 in, cover plate

1шт.

4

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in (cover plate to main frame)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (cover plate to main frame)

4шт.

5

K900105

PIN

DOWEL, 5/8 x 1 7/16 in (main frame front to main frame rear)

2шт.

6

K600808

BOLT

1/2 UNC x 2 1/4 in (main frame front to main frame rear)

4шт.

7

K600814

BOLT

1/2 UNC x 3 in (main frame front to main frame rear)

6шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (main frame front to main frame rear)

10шт.

K607004

NUT

1/2 UNC (main frame front to main frame rear)

2шт.

8

K690973

FITTING

GREASE FITTING, 1/4 ANF x 45 degree, clutch cross shaft

2шт.

9

K919278

COVER

PLATE, relief valve aperture

1шт.

K919279

GASKET

1шт.

10

K603002

BOLT (SPREADER)

SETSCREW, 7/16 UNC x 7/8 in

2шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

2шт.

11

K947367

FRAME

FRONT EXTENSION

1шт.

12

K600806

BOLT

1/2 UNC x 2 in (extension to main frame)

12шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (extension to main frame)

12шт.

13

K15597

BUSHING

BUSH, main frame

4шт.

14

K904077

COVER

SUMP COVER

1шт.

15

K906429

GASKET

(sump cover to main frame)

1шт.

16

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in (sump cover to main frame)

18шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (sump cover to main frame)

18шт.

17

K623825

PLUG

DRAIN PLUG, 1/2 BSP

1шт.

18

K626793

WASHER

SEALING WASHER, 7/8 in

1шт.

19

K964774

DIPSTICK

ASSEMBLY (used together will service up to S/N Note B) (eff. S/N Note B)

1шт.

1410, 1412, 1412G-11201034

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

'O' RING, 3/8 in (used together will service up to S/N Note B) (eff. S/N Note B)

1шт.

1410, 1412, 1412G-11201034

1шт.

20

K948224

SLEEVE

dipstick (used together will service up to S/N Note B) (eff. S/N Note B)

1шт.

1410, 1412, 1412G-11201034

1шт.

21

K947027

CLUTCH

HOUSING

1шт.

22

K600810

BOLT

1/2 UNC x 2 1/2 in (housing to main frame)

6шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (housing to main frame)

6шт.

23

K600425

BOLT

3/8 UNC x 5 1/4 in, Serial Range: (housing-engine)

2шт.

24

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in, Serial Range: (housing-engine)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (housing-engine)

3шт.

25a

K947614

COVER

GEARBOX COVER

1шт.

1410

1шт.

1410 4WD

1шт.

25b

K947105

COVER

GEARBOX COVER

1шт.

1412

1шт.

1412G

1шт.

26

K922555

GASKET

(gearbox cover to main frame)

2шт.

27

K600829

BOLT

1/2 UNC x 6 3/4 in (gearbox cover to main frame)

2шт.

K600824

BOLT

1/2 UNC x 5 1/2 in (gearbox cover to main frame)

6шт.

1412

1шт.

1412G

1шт.

K600821

BOLT

1/2 UNC x 4 3/4 in (gearbox cover to main frame)

2шт.

1412

1шт.

1412G

1шт.

K600817

BOLT

1/2 UNC x 3 3/4 in (gearbox cover to main frame)

4шт.

1412

1шт.

1412G

1шт.

28

K600816

BOLT

1/2 UNC x 3 1/2 in (gearbox cover to main frame)

12шт.

1410

1шт.

1410 4WD

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (gearbox cover to main frame)

10шт.

1410

1шт.

1410 4WD

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (gearbox cover to main frame)

14шт.

1412

1шт.

1412G

1шт.

K14582

WASHER

SEALING WASHER, 1/2 in (gearbox cover to main frame)

4шт.

1410

1шт.

1410 4WD

1шт.

29

K600810

BOLT

1/2 UNC x 2 1/2 in (gearbox cover)

4шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (gearbox cover)

4шт.

30

K915674

WEDGE

(gearbox cover)

1шт.

31

K915720

SHIM

0.040 in (gearbox cover)

1шт.

32

K19578

PLUG

TAPER PLUG, 3/4 BSP, gearbox cover

1шт.

1412

1шт.

1412G

1шт.

33

K623825

PLUG

1/2 BSP

1шт.

1410

1шт.

1410 4WD

1шт.

34

K626793

WASHER

SEALING WASHER, 7/8 in

1шт.

1410

1шт.

1410 4WD

1шт.

35

K12362

PLUG

TAPER PLUG, 1 in BSP, oil filler

1шт.

36

K947616

DIPSTICK

transmission sump

1шт.

37

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

'O' RING, 7/16 in internal diameter

1шт.

38

K942348

SLEEVE

dipstick

1шт.

39

K623831

PLUG

1 in BSP, band stop

1шт.

1412

1шт.

1412G

1шт.
