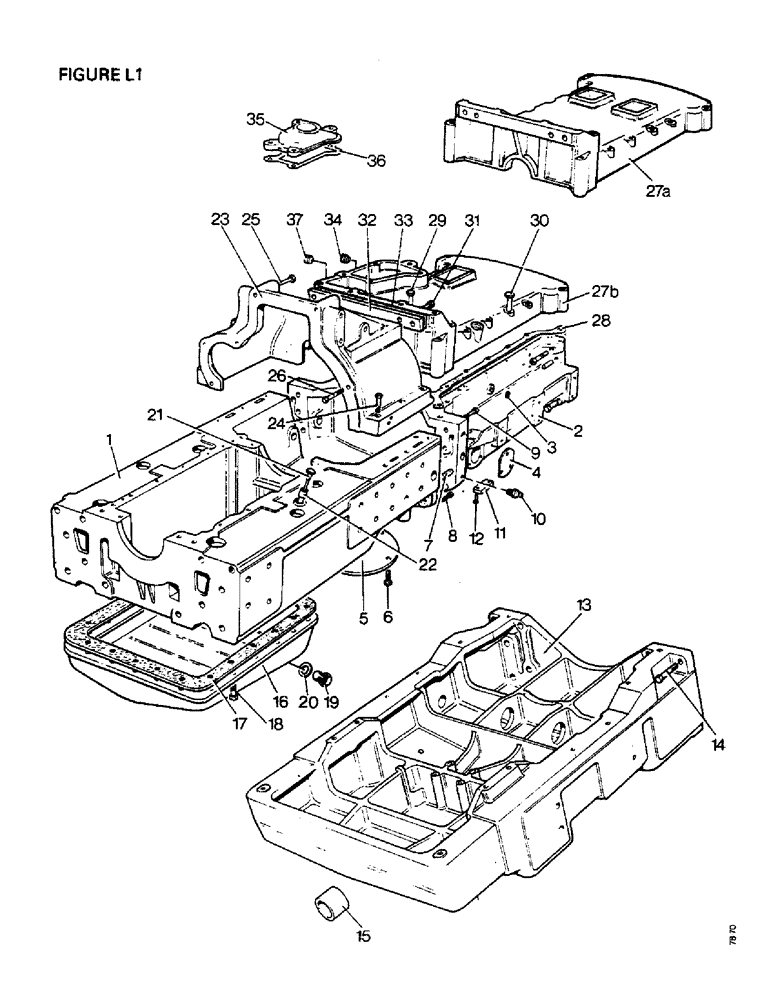

Запчасти Case IH 1412 (L01-1) - CHASSIS, BONNET, FENDERS, SAFETY FRAME AND CAB, MAIN FRAME AND COVERS, TRACS. W/ CAB (12) - CHASSIS

1

K948211

FRAME

MAIN FRAME, front

1шт.

2a

K952347

FRAME

MAIN FRAME, rear (eff. S/N Note A)

1шт.

1410Q, 1410SK

1шт.

1412Q, 1412SK

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11200753

1шт.

2b

K952496

FRAME

MAIN FRAME, rear

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

2c

K951236

MAIN FRAME, rear (up to S/N Note A)

1шт.

1410Q, 1410SK

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11200753

1шт.

2d

K951237

MAIN FRAME, rear (up to S/N Note A)

1шт.

1412Q, 1412SK

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11200753

1шт.

K628084

PLUG

5/8 in, plastic

26шт.

K606021

SCREW

GRUBSCREW, 5/16 UNC x 5/16 in, main frame rear

3шт.

1412Q, 1412SK

1шт.

3

K951336

GAUGE

OIL SIGHT GAUGE

1шт.

4a

K950897

PLATE

BLANKING PLATE

2шт.

1410Q, 1410SK

1шт.

1412Q, 1412SK

1шт.

4a

K950897

PLATE

BLANKING PLATE

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

4b

K951124

PLATE

ANCHOR BRACKET, cable, left-hand

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

K916652

GASKET

(blanking plates and anchor bracket to main frame rear)

2шт.

K916652

GASKET

SETSCREW, 5/16 UNC x 3/4 in (blanking plates and anchor bracket to main frame rear)

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (blanking plates and anchor bracket to main frame rear)

6шт.

5

K919622

PLATE

COVER PLATE, clutch pit

1шт.

K11933

PIN

SPLIT PIN, 1/8 x 5/8 in, cover plate

1шт.

6

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in (cover plate to main frame)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (cover plate to main frame)

4шт.

7

K900105

PIN

DOWEL, 5/8 x 1 7/16 in (main frame front to main frame rear)

2шт.

8

K600808

BOLT

1/2 UNC x 2 1/4 in (main frame front to main frame rear)

4шт.

9

K600814

BOLT

1/2 UNC x 3 in (main frame front to main frame rear)

6шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (main frame front to main frame rear)

10шт.

K607004

NUT

1/2 UNC (main frame front to main frame rear)

2шт.

10

K690973

FITTING

GREASE FITTING, 1/4 ANF x 45 degrees (clutch cross shaft)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF (Clutch cross shaft) 1/4"-28 NPT x .54" lg

1шт.

11

K919278

COVER

PLATE, relief valve aperture

1шт.

K919279

GASKET

1шт.

12

K603002

BOLT (SPREADER)

SETSCREW, 7/16 UNC x 7/8 in

2шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

2шт.

13

K947367

FRAME

FRONT EXTENSION

1шт.

K623794

CORE

PLUG, front extension

1шт.

14

K600806

BOLT

1/2 UNC x 2 in (extension to main frame)

12шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (extension to main frame)

12шт.

15

K15597

BUSHING

BUSH, front extension, trunnion

4шт.

16

K904077

COVER

SUMP COVER

1шт.

17

K906429

GASKET

(sump cover to main frame)

1шт.

18

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in (sump cover to main frame)

18шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (sump cover to main frame)

18шт.

19

K623825

PLUG

DRAIN PLUG, 1/2 BSP

1шт.

20

K626793

WASHER

SEALING WASHER, 7/8 in

1шт.

21

K964774

DIPSTICK

ASSEMBLY (used together will service up to S/N Note B) (eff. S/N Note B)

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11201034

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

'O' RING, 3/8 in internal diameter (used together will service up to S/N Note B) (eff. S/N Note B)

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11201034

1шт.

22

K948224

SLEEVE

DIPSTICK (used together will service up to S/N Note B) (eff. S/N Note B)

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11201034

1шт.

23

K947027

CLUTCH

HOUSING

1шт.

24

K600810

BOLT

1/2 UNC x 2 1/2 in (housing to main frame)

6шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (housing to main frame)

6шт.

25

K600425

BOLT

3/8 UNC x 5 1/4 in, Serial Range: (housing-engine)

2шт.

26

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in, Serial Range: (housing-engine)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (housing-engine)

3шт.

27a

K950674

COVER

GEARBOX COVER

1шт.

1410Q, 1410SK

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

27b

K950673

COVER

GEARBOX COVER

1шт.

1412Q, 1412SK

1шт.

28

K922555

GASKET

(gearbox cover to main frame)

2шт.

29

K600829

BOLT

1/2 UNC x 6 3/4 in (gearbox cover to main frame)

4шт.

1410Q, 1410SK

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

29

K600829

BOLT

1/2 UNC x 6 3/4 in (gearbox cover to main frame)

2шт.

1412Q, 1412SK

1шт.

K600824

BOLT

1/2 UNC x 5 1/2 in (gearbox cover to main frame)

4шт.

1412Q, 1412SK

1шт.

K600822

BOLT

1/2 UNC x 5 in (gearbox cover to main frame)

2шт.

1412Q, 1412SK

1шт.

K600818

BOLT (SPREADER)

BOLT, 1/2 UNC x 4 in (gearbox cover to main frame)

2шт.

1412Q, 1412SK

1шт.

K600817

BOLT

1/2 UNC x 3 3/4 in (gearbox cover to main frame)

2шт.

30

K600816

BOLT

1/2 UNC x 3 1/2 in (gearbox cover to main frame)

10шт.

1410Q, 1410SK

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

30

K600816

BOLT

1/2 UNC x 3 1/2 in (gearbox cover to main frame)

2шт.

1412Q, 1412SK

1шт.

K19484

LOCK WASHER

WASHER, 1/2 in (gearbox cover to main frame)

16шт.

1410Q, 1410SK

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

K19484

LOCK WASHER

WASHER, 1/2 in (gearbox cover to main frame)

14шт.

1412Q, 1412SK

1шт.

31

K600810

BOLT

1/2 UNC x 2 1/2 in (gearbox cover to clutch housing)

4шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (gearbox cover to clutch housing)

4шт.

32

K915674

WEDGE

(gearbox cover to clutch housing)

1шт.

33

K915720

SHIM

0.040 in (gearbox cover to clutch housing)

1шт.

34

K19578

PLUG

TAPER PLUG, 3/4 BSP, gearbox cover

1шт.

1412Q, 1412SK

1шт.

35

K950755

COVER

control valve

1шт.

1412Q, 1412SK

1шт.

36

K950698

GASKET

1шт.

1412Q, 1412SK

1шт.

K603108

SCREW

BOLT, 1/2 UNC x 1 1/2 in

2шт.

1412Q, 1412SK

1шт.

K600840

BOLT

1/2 UNC x 10 1/4 in

1шт.

1412Q, 1412SK

1шт.

K600836

BOLT

1/2 UNC x 8 3/4 in

1шт.

1412Q, 1412SK

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in

4шт.

1412Q, 1412SK

1шт.

37

K623831

PLUG

1 in BSP, band stop

1шт.

1412Q, 1412SK

1шт.
