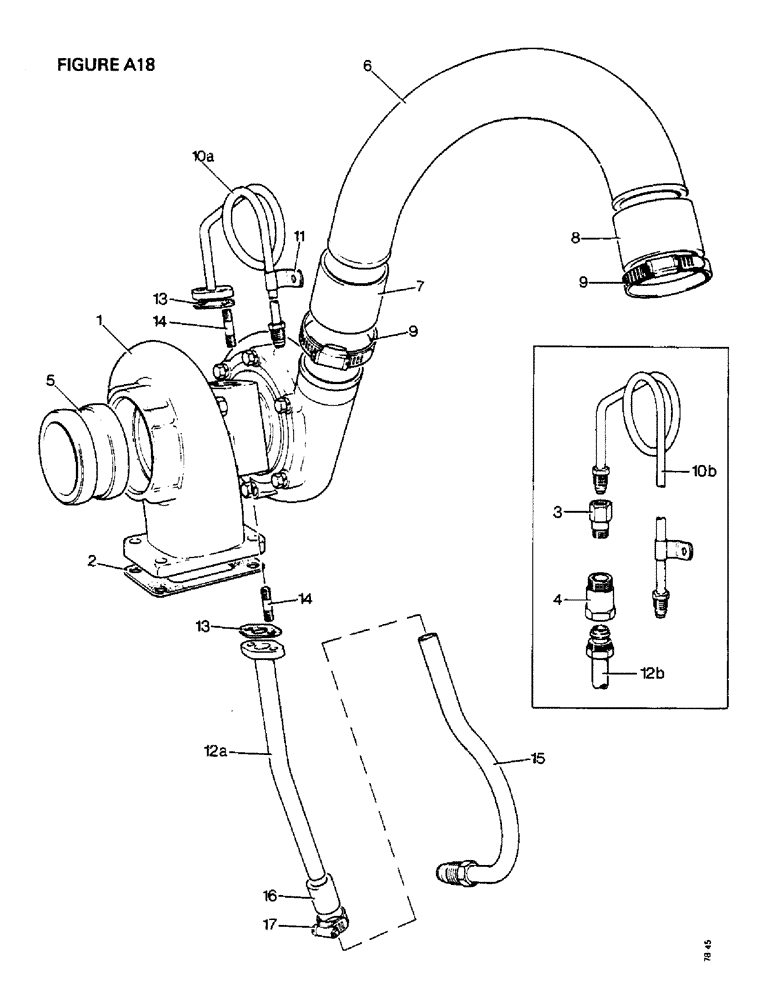

Запчасти Case IH 1410 (A18-1) - ENGINE, TURBOCHARGER, 1410, 1410Q, 1410SK, 1412, 1412Q,1412G, 1412SK (01) - ENGINE

1

K953352

TURBOCHARGER

high flow, Holset 55344/3 (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

1

K929726

TURBOCHARGER

Holset 54291 (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

2

K929727

GASKET,0.38mm Thk

(turbocharger to exhaust manifold)

1шт.

K19472

WASHER

3/8 in (turbocharger to exhaust manifold)

1шт.

280136

NUT,3/8"-16, G8

(Turbocharger to exhaust manifold) 3/8"-16, G8

1шт.

3

K943955

ADAPTER

ADAPTOR, oil inlet (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

K626443

WASHER

COPPER WASHER, oil inlet adaptor, 1/2 in (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

4

K942280

OUTLET

ADAPTOR, oil drain (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

K626449

SHIM

COPPER WASHER, oil drain, 1 in (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

5

K929731

TUBE,2.375" ID x 2.875" OD

CONNECTOR

1шт.

6a

K953118

PIPE

turbocharger to inlet manifold (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

6b

K929729

PIPE

turbocharger to inlet manifold (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

7

K626802

HOSE

2 in diameter, Serial Range: turbocharger-pipe

1шт.

8

K626803

HOSE,2.31 mm ID x 50.80 mm

Pipe to Inlet Manifold 2.31 mm ID x 50.80 mm

1шт.

9

K11806

HOSE

CLIP, Jubilee No. 3

4шт.

10a

K953112

PIPE

oil feed, block to turbocharger (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

10b

K943956

PIPE

oil feed, block to turbocharger (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

11

K621700

CLIP

oil feed pipe

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

280136

NUT,3/8"-16, G8

1шт.

12a

K955115

PIPE

oil drain, upper (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

12b

K946400

PIPE

oil drain, upper (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

13

K953354

SEAL

(oil pipes to turbocharger) (eff. S/N Note A)

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

14

K953355

STUD

8mm x 5/16 UNC x 1 3/16 in (oil pipes to turbocharger) (eff. S/N Note A)

4шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (oil pipes to turbocharger) (eff. S/N Note A)

4шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (oil pipes to turbocharger) (eff. S/N Note A)

4шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-11202109

1шт.

15

K946401

PIPE

oil drain, lower

1шт.

16

K626813

COUPLING, BREAK AWAY

HOSE, 3/4 in diameter

1шт.

17

K621722

HOSE CLIP

2шт.
