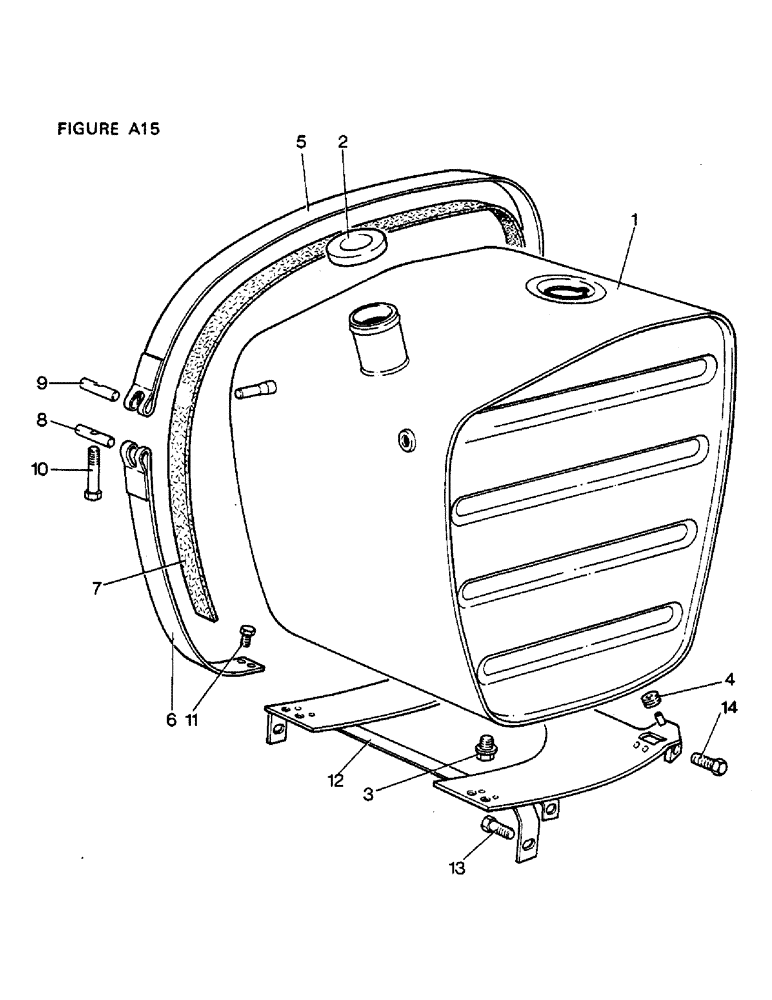

Запчасти Case IH 1410 (A15-1) - ENGINE, FUEL TANK AND FITTINGS, [A] 1410Q, 1412Q, [B] 1410SK,1412SK (01) - ENGINE

1

K949666

TANK

FUEL TANK, with filler cap

1шт.

2

K901983

CAP

FILLER CAP

1шт.

3

K19591

PLUG

DRAIN PLUG, 1/8 BSP

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER, 3/8 in

1шт.

4

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in diameter fuel tank

2шт.

5

K951472

STRAP

upper

2шт.

6

K951478

STRAP

lower

2шт.

7

K953479

TAPE

PACKING STRIP, Serial Range: (strap-strap)

1шт.

8

K951540

TRUNNION

plain, Serial Range: (strap-strap)

2шт.

9

K951539

TRUNNION

1/4 UNC, Serial Range: (strap-strap)

2шт.

10

K602744

BOLT

1/4 UNC x 3 1/4 in, Serial Range: (strap-strap)

2шт.

11

K604094

SCREW

SETSCREW, 1/4 UNC x 5/8 in (straps to tank support)

8шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (straps to tank support)

8шт.

K607043

NUT

1/4 UNC (straps to tank support)

8шт.

12a

K951460

TANK

BRIDGE PIECE, and tank support

1шт.

1410Q, 1412Q

1шт.

12b

K953821

TANK

BRIDGE PIECE, and tank support

1шт.

1410SK, 1412SK

1шт.

13a

K600714

BOLT

7/16 UNC x 2 in (bridge piece to cab floor) (eff. S/N Note A)

2шт.

1410-11202084: 1412-11202084

1шт.

1410Q, 1412Q

1шт.

13b

K600712

BOLT, 7/16 UNC x 1 7/8 in (bridge piece to cab floor) (up to S/N Note A)

2шт.

1410-11202084: 1412-11202084

1шт.

1410Q, 1412Q

1шт.

K626344

WASHER, LOCK

SPRING WASHER, 7/16 in (bridge piece to cab floor)

2шт.

1410Q, 1412Q

1шт.

14

K602983

SCREW

SETSCREW, 3/8 UNC x 3/4 in (bridge piece to cab floor)

4шт.

1410Q, 1412Q

1шт.

14

K602983

SCREW

SETSCREW, 3/8 UNC x 3/4 in (bridge piece to cab floor)

6шт.

1410SK, 1412SK

1шт.

K19472

WASHER

3/8 in (bridge piece to cab floor)

4шт.

1410Q, 1412Q

1шт.

K19472

WASHER

3/8 in (bridge piece to cab floor)

6шт.

1410SK, 1412SK

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (bridge piece to cab floor)

4шт.

1410Q, 1412Q

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (bridge piece to cab floor)

6шт.

1410SK, 1412SK

1шт.

280136

NUT,3/8"-16, G8

(Bridge piece to cab floor) 3/8"-16, G8

4шт.

1410Q, 1412Q

1шт.

280136

NUT,3/8"-16, G8

(Bridge piece to cab floor) 3/8"-16, G8

6шт.

1410SK, 1412SK

1шт.
