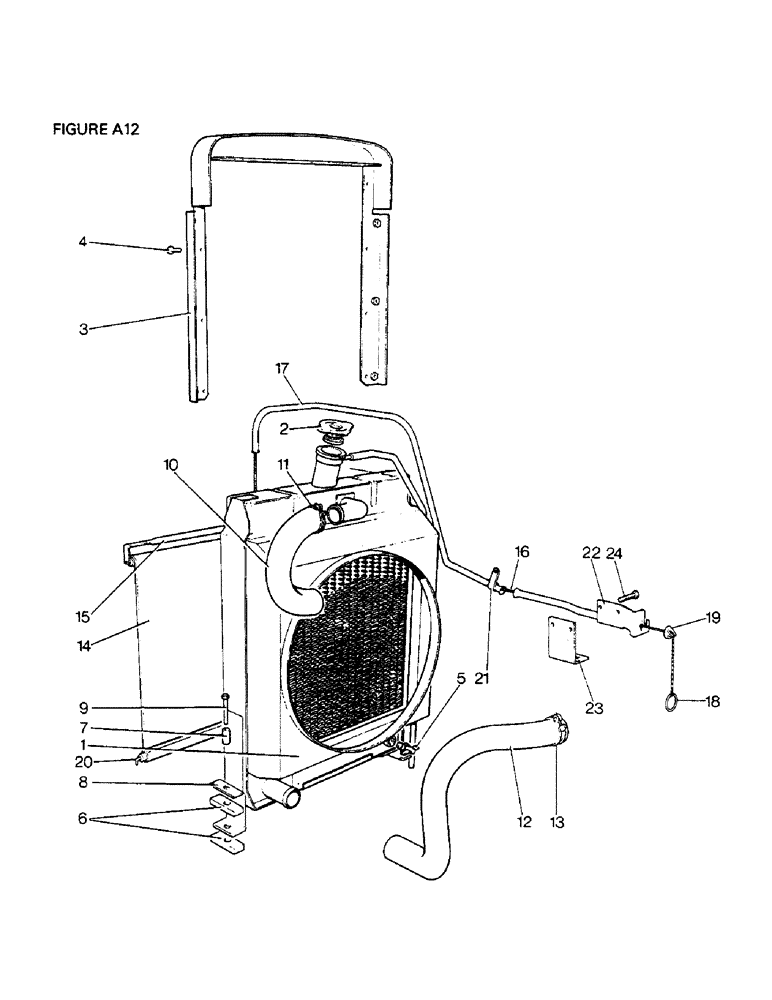

Запчасти Case IH 1410 (A12-1) - ENGINE, RADIATOR AND BLIND, [A] 1410Q, 1412Q, 1410SK [B] 1410,1412 [C] 1412G (01) - ENGINE

1a

K946850

RADIATOR

2 1/4 in block, 6 gills per in, standard

1шт.

1b

K946866

RADIATOR

2 3/4 in block, 8 gills per in, tropical, Includes: Ref. 2

1шт.

1410, 1412

1шт.

2

K945362

CAP

FILLER CAP, 7 lb/in (2)

1шт.

3

K946851

FRAME

radiator

1шт.

4

K605604

SCREW

1/4 UNC x 1/2 in

8шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

8шт.

5

K622060

PLUG, DRAIN

DRAIN TAP, 1/4 BSP

1шт.

K19501

WASHER

FIBRE WASHER, 1/2 in

1шт.

6

K921836

WEDGE

FOOT PACKING

4шт.

7

K908823

TUBE,0.562" OD x 0.875" L

DISTANCE TUBE

2шт.

8

K921837

SHIM

CLAMPING PLATE

2шт.

9

K600406

BOLT

3/8 UNC x 1 3/4 in

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

10

K946849

HOSE

radiator inlet

1шт.

11

K622029

CLAMP

HOSE CLIP, 2-1/8 in, replaces K13078

3шт.

12

K945287

HOSE

radiator outlet

1шт.

13

K622029

CLAMP

HOSE CLIP, 2-1/8 in, replaces K622081

1шт.

K925877

COVER

RADIATOR BLIND, U1327 (optional equipment), Includes: Ref. 14 - 24

1шт.

1410, 1412

1шт.

1412G

1шт.

14

K908846

COVER

RADIATOR BLIND (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

15

K64925

ROD

PULL ROD (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

16

K67196

ROPE

CONTROL CORD, replaces K921979 (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

17

K921969

TUBE

CONTROL TUBE (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

18

K952646

KEY

RING (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

19

K952633

ROD

ANCHOR CONTROL CORD (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

20

K921971

ROD

ANCHOR, blind (optional equipment)

2шт.

1410, 1412

1шт.

1412G

1шт.

K19520

PIN

SPLIT PIN, 1/16 x 3/8 in (optional equipment)

2шт.

1410, 1412

1шт.

1412G

1шт.

21

K621616

CLIP

control tube to inlet manifold (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

22

K919709

GUIDE

TUBE (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

23

K928608

BRACKET

SUPPORT BRACKET, hydrostatic steering (optional equipment)

1шт.

1410, 1412

1шт.

1412G

1шт.

24

K601840

SETSCREW, 5/16 UNC x 1 1/2 in (optional equipment)

2шт.

1410, 1412

1шт.

1412G

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (optional equipment)

2шт.

1410, 1412

1шт.

1412G

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (optional equipment)

2шт.

1410, 1412

1шт.

1412G

1шт.
