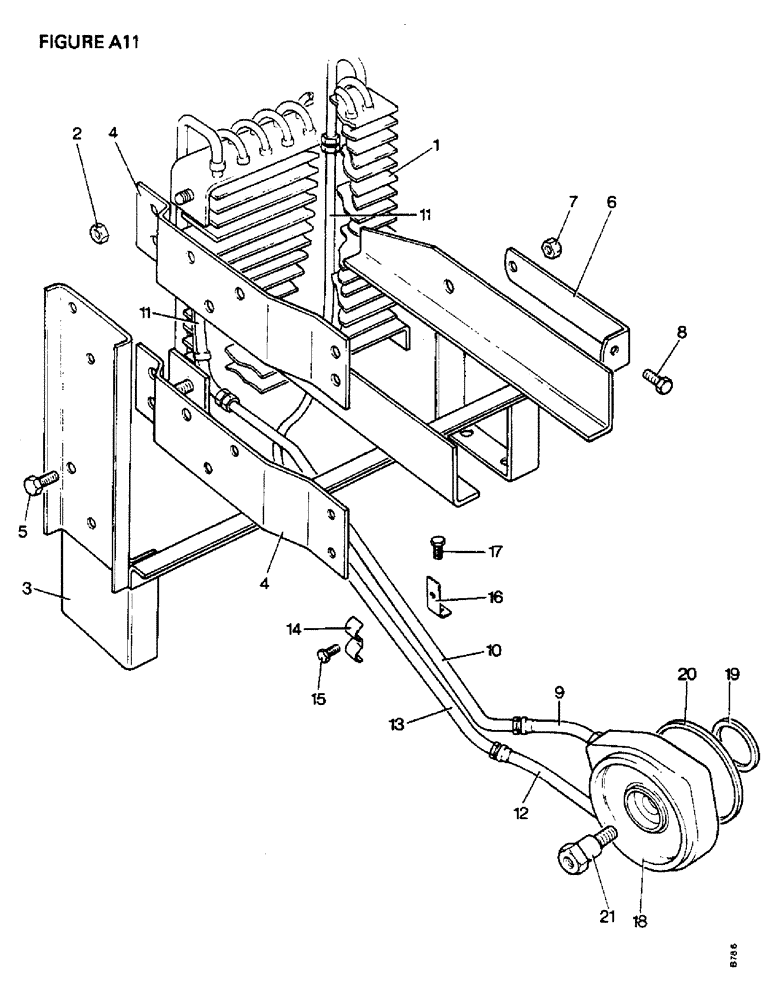

Запчасти Case IH 1410 (A11-1) - ENGINE, OIL COOLER U1924, TANDEM HYDRAULIC PUMPS, ALT. EQUIP. 1410,1410Q,1410SK,1412,1412Q,1412SK (01) - ENGINE

K931874

SPARE PART

OIL COOLER ASSEMBLY, Includes: Ref. 1 - 21

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

1

K951481

COOLER

OIL COOLER, engine

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

2

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (cooler to support plate)

2шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (cooler to support plate)

2шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

3

K951145

SUPPORT

BATTERY SUPPORT FRAME

2шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

4

K951146

BRACKET

SUPPORT PLATE, oil coolers

2шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

5

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in (support plate to battery support)

4шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 UNC (support plate to battery support)

4шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K607000

NUT

5/16 UNC (support plate to battery support)

4шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

6

K952186

SUPPORT

STAY, oil cooler

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (oil cooler to stay)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (oil, Serial Range: cooler-stay)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

8

K602703

SCREW

SETSCREW, 1/4 UNC x 3/4 in (stay to battery frame)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 UNC (stay to battery frame)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K607000

NUT

1/4 UNC (stay to battery frame)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

9

K954861

PIPE

OIL FEED PIPE, short (replaces K951143)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-11203850

1шт.

10

K956156

PIPE

OIL FEED PIPE, long (replaces K951143)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-11203850

1шт.

11

K954541

HOSE

flexible (replaces K951143)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-11203850

1шт.

12

K954863

PIPE

OIL RETURN PIPE, short (replaces K951144)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-11203850

1шт.

13

K956157

PIPE

OIL RETURN PIPE, long (replaces K951144)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-11203850

1шт.

11

K954541

HOSE

flexible (replaces K951144)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-11203850

1шт.

14

K951974

CLIP

pipes

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-11203850

1шт.

15

K602703

SCREW

SETSCREW, 1/4 UNC x 3/4 in, Serial Range: (clip-bracket)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K24111

WASHER

special, 17/64 in, Serial Range: (clip-bracket)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in, Serial Range: (clip-bracket)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K607000

NUT

1/4 UNC, Serial Range: (clip-bracket)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

16

K951973

SUPPORT

BRACKET, pipes

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

17

K602902

SCREW

SETSCREW, 3/8 UNC x 3/4 in (bracket to front extension)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (bracket to front extension)

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

18

K951345

HOUSING

CONNECTOR HOUSING

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

19

K919007

RING

SEALING RING, 1 5/8 in internal diameter

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

20

K87644

RING

SEALING RING, 4-1/8 in internal diameter

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.

21

K950825

BOLT

special, 7/16 UNC

1шт.

Effective S/N 1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK-1051059

1шт.
