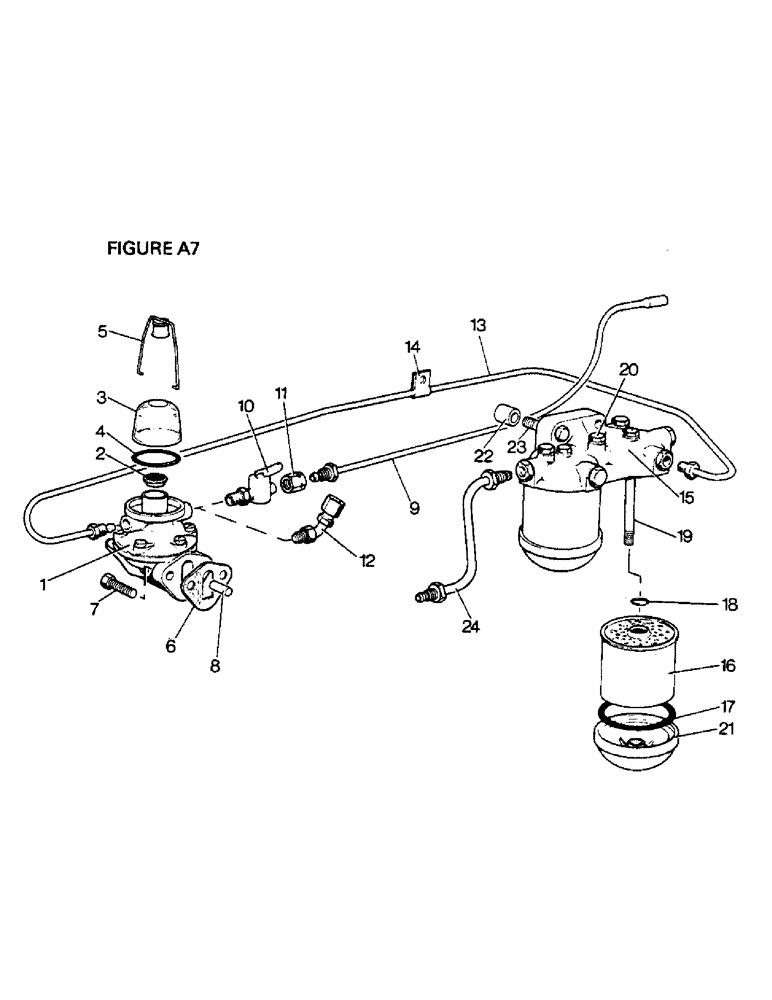

Запчасти Case IH 1410 (A07-1) - ENGINE, FUEL FEED PUMP, FILTERS AND PIPES, 1410Q, 1412Q, 1410SK,1412SK, 1410, 1412, 1412G (01) - ENGINE

1

K944997

PUMP

FUEL FEED PUMP, AC-Delco E/FP63154/A, replaces K909944, Includes: Ref. 2 - 5

1шт.

2

K961675

FILTER SCREEN

1шт.

3

K66442

FILTER BOWL

1шт.

4

K961674

SEAL

GASKET, filter bowl

1шт.

5

K961676

BAIL

STIRRUP AND SCREW

1шт.

K911917

DIAPHRAGM

1шт.

6

K902136

GASKET

(feed pump to cylinder block)

2шт.

7

K602807

SCREW

SETSCREW, 5/16 UNC x 1 1/4 in (feed pump to cylinder block)

2шт.

K14988

WASHER

COPPER-ASBESTOS WASHER, 5/16 in (feed pump to cylinder block)

2шт.

K19471

WASHER

5/16 in (feed pump to cylinder block)

2шт.

8

K911928

PUSH ROD,9.51mm OD x 35.99mm L

PUSH ROD, feed pump

1шт.

9a

K951956

PIPE

FUEL PIPE, tank to feed pump

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

9b

K944998

PIPE

FUEL PIPE, tank to feed pump

1шт.

1410, 1412, 1412G

1шт.

10

K622061

VALVE

FUEL TAP (optional equipment)

1шт.

1410, 1412, 1412G

1шт.

1410SK, 1412SK

1шт.

11

K626076

FITTING

UNION, 1/2 UNF (optional equipment)

1шт.

1410, 1412, 1412G

1шт.

1410SK, 1412SK

1шт.

12

K951062

EXTENSION

FUEL TAP (optional equipment)

1шт.

1410, 1412, 1412G

1шт.

1410SK, 1412SK

1шт.

K617582

NUT

TUBING NUT (optional equipment)

2шт.

1410, 1412, 1412G

1шт.

1410SK, 1412SK

1шт.

K622402

FERRULE

OLIVE (optional equipment)

2шт.

1410, 1412, 1412G

1шт.

1410SK, 1412SK

1шт.

13

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

FUEL PIPE, feed pump to filter, replaces K909952

1шт.

14

K621603

CLIP

pipe to manifold stud

1шт.

15

K906708

FILTER

FUEL FILTER, purolator APF62900, Includes: Ref. 16 - 21

1шт.

16

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT, Includes: Ref. 17 and 18

2шт.

17

K960936

RING

SEALING RING

4шт.

18

K960937

O-RING

'O' RING, 1/2 in internal diameter

2шт.

19

K600360

BOLT

5/16 UNC x 4 3/4 in

2шт.

K963409

RING

SEALING WASHER, 5/16 in

2шт.

20a

K965010

PLUG

VENT PLUG, 5/16 UNC

1шт.

20b

K962348

SCREW

VENT PLUG

1шт.

K14734

WASHER

ALUMINUM WASHER, replaces K626850

1шт.

K619541

PLUG

1/2 UNF

1шт.

K15735

WASHER

1/2 in

1шт.

21

K962264

COVER

BASE

2шт.

K962263

COVER

FILTER HEAD

1шт.

22

K627042

BUSHING

DISTANCE PIECE (filter to cylinder head)

2шт.

23

K600406

BOLT

3/8 UNC x 1 3/4 in (filter to cylinder head)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (filter to cylinder head)

2шт.

24

K912488

PIPE

FUEL PIPE, Serial Range: filter-leak-off

1шт.
