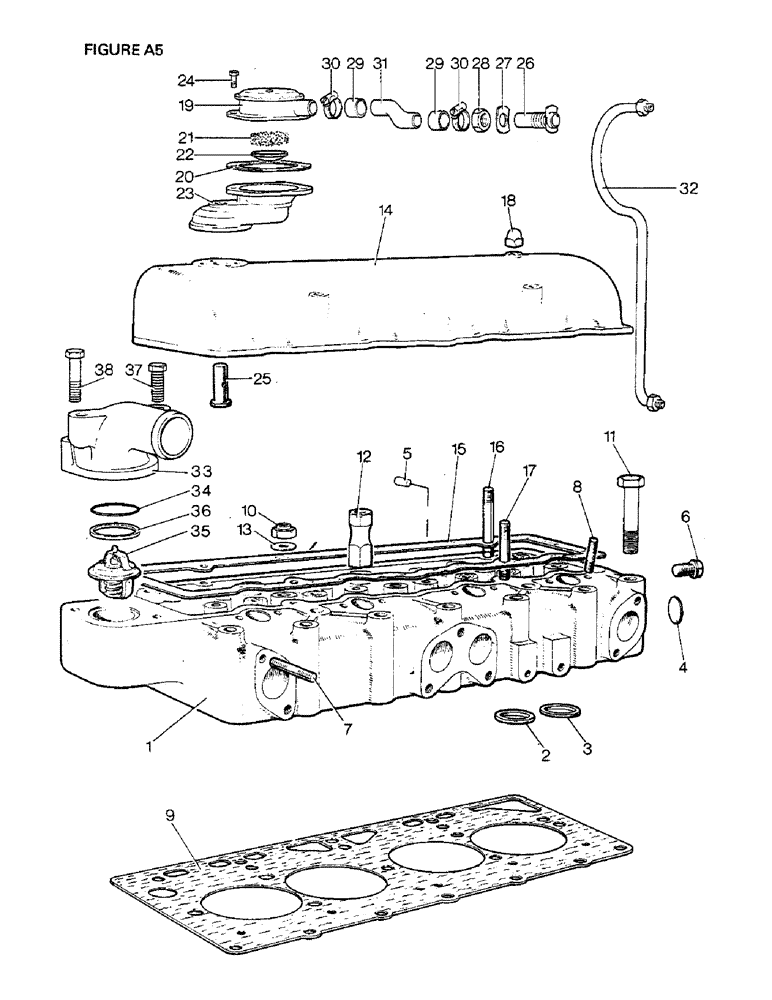

Запчасти Case IH 1410 (A05-1) - ENGINE, CYLINDER HEAD, 1410, 1410Q, 1410SK, 1412, 1412Q,1412G,1412SK (01) - ENGINE

1

K964533

CYLINDER

HEADS, Includes: Ref. 2 - 5

1шт.

2

K921246

INSERT

inlet valve seat

4шт.

3

K921247

INSERT

exhaust valve seat

4шт.

4a

K623791

PLUG

CORE PLUG, 1 1/4 in diameter (eff. S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E120059

1шт.

4b

K623810

PLUG

CORE PLUG, 1 in diameter (up to S/N Note A)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E120059

1шт.

5

K900431

PLUG

TAPER PLUG

4шт.

6

K19591

PLUG

FLANGED PLUG, 1/8 BSP

1шт.

K16732

WASHER

COPPER WASHER, 3/8 in

1шт.

7a

K608203

STUD

3/8 UNC x 1 7/8 in (manifolds)

7шт.

K608209

STUD

3/8 UNC x 2 1/4 in (manifolds)

4шт.

K608214

STUD

3/8 UNC x 2 in, centre flange exhaust

1шт.

7b

K608216

STUD

3/8 UNC x 1 3/8 in exhaust manifold

1шт.

7c

K608237

STUD

3/8 UNC x 1 3/4 in, conduit to inlet manifold

2шт.

8

K608107

STUD

5/16 UNC x 1 11/16 in (injectors to cylinder head)

8шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (injectors to cylinder head)

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (injectors to cylinder head)

8шт.

9

K953783

CYLINDER HEAD GASKET

GASKET, replaces K947758 (cylinder, Serial Range: head-block)

1шт.

10

K617594

NUT

1/2 UNF special, replaces K617581 (cylinder, Serial Range: head-block)

5шт.

11

K600870

BOLT

1/2 UNC x 4 1/2 in special (cylinder, Serial Range: head-block)

7шт.

12

K906536

NUT

ELONGATED NUT, 1/2 UNF (cylinder, Serial Range: head-block)

7шт.

13

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

1/2 in special (cylinder, Serial Range: head-block)

19шт.

K906898

NUT

LIFTING NUT, 1/2 UNF

1шт.

14

K920678

COVER

CYLINDER HEAD

1шт.

15

K905229

GASKET,3.97mm Thk

cylinder head cover

1шт.

16

K608118

STUD

5/16 UNC x 3 7/16 in, Serial Range: (cover-head)

2шт.

17

K608119

STUD

5/16 UNC x 2 13/16 in, Serial Range: (cover-head)

2шт.

K14988

WASHER

COPPER ASBESTOS WASHER, 5/16 in, Serial Range: (cover-head)

4шт.

18

K607252

NUT

DOMED NUT, 5/16 UNC, Serial Range: (cover-head)

4шт.

K949214

BREATHER

ASSEMBLYSS, Includes: Ref. 1 - 24

1шт.

19

K964911

DIAPHRAGM

BODY WITH COVER AND DIAPHRAGMS, Includes: Ref. 20

1шт.

20

K947501

GASKET

1шт.

21

K948660

FILTER, ELEMENT

ELEMENT

1шт.

22

K945058

FILTER

1шт.

23

K949205

BASE

1шт.

24

K613986

SCREW

SETSCREW, No. 10 UNF x 5/8 in

4шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 IN

4шт.

K617080

NUT

No. 10 UNF

4шт.

25

K603108

SCREW

SETSCREW, 1/2 UNC x 1 1/2 in (breather to cylinder head cover)

1шт.

K626433

COPPER WASHER, 1/2 in (breather to cylinder head cover)

1шт.

SHOULD READ K626443

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC

1шт.

K626901

O-RING,40554" ID x 40575" OD x 0.12"

'O' RING, 1 11/16 in internal diameter

1шт.

26

K948987

HOSE

CONNECTOR (engine breather to inlet hose)

1шт.

27

K948783

WASHER

SPECIAL (engine breather to inlet hose)

2шт.

28

K617026

NUT

LOCKNUT, 3/4 UNF

1шт.

29

K948709

FITTING

HOSE, 5/8 in diameter

2шт.

30

K14679

HOSE

CLIP, 7/8 in

4шт.

31a

K953391

PIPE

BREATHER PIPE (eff. S/N Note B)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E120059 B 1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E11202109

1шт.

31b

K951255

BREATHER

PIPE, replaces K949206 (up to S/N Note B)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E120059 B 1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E11202109

1шт.

32

K902765

PIPE

OIL PIPE, cylinder, Serial Range: block-head

1шт.

33

K915630

OUTLET

PIPE, water outlet

1шт.

K946852

FITTING

PIPE, water outlet

1шт.

34

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

35

K900368

THERMOSTAT

1шт.

IF YOU HAVE THE LARGER BORE USE THERMOSTAT K917962 AND GASKET K200225

1шт.

36

K910411

GASKET

1шт.

37

K600214

BOLT

SETSCREW, 5/16 UNC x 2 5/8 in

1шт.

38

K600205

BOLT

5/16 UNC x 1 1/2 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.
