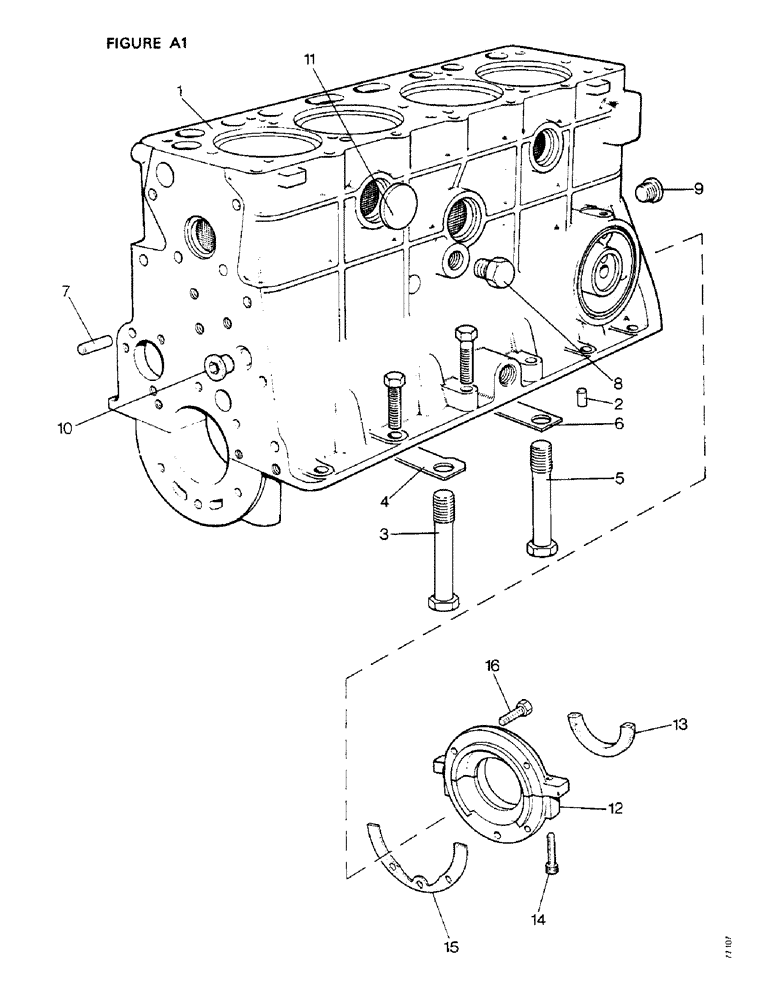

Запчасти Case IH 1410 (A01-1) - ENGINE, CYLINDER BLOCK ASSEMBLIES, 1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK (01) - ENGINE

1

K964630

ENGINE ASSEMBLY

CYLINDER BLOCK WITH CRANKSHAFT AND PISTONS, Includes: Ref. 2 - 8

1шт.

Order K260521 for assembly

1шт.

K963410

BLOCK

CYLINDER BLOCK WITH BEARING CAPS

1шт.

2

K12258

PIN

DOWEL, 5/16 x 3/4 in, main bearing caps

6шт.

3

K940395

BOLT

3/4 UNC x 4 1/2 in (centre main bearing cap to block front and rear main bearing, Serial Range: caps-block)

2шт.

K940397

SHEET

WASHER, 3/4 in (centre main bearing cap to block front and rear main bearing, Serial Range: caps-block)

2шт.

4

K940396

WASHER

TABWASHER (centre main bearing cap to block front and rear main bearing, Serial Range: caps-block)

1шт.

5

K928965

BOLT

5/8 UNC x 4 1/8 in (centre main bearing cap to block front and rear main bearing, Serial Range: caps-block)

4шт.

K929557

WASHER

WASHER, 5/8 in (centre main bearing cap to block front and rear main bearing, Serial Range: caps-block)

2шт.

6

K928996

WASHER

TABWASHER (centre main bearing cap to block front and rear main bearing, Serial Range: caps-block)

2шт.

7

K621807

PIN

DOWEL, 5/16 x 1/2 in, carrier plate

2шт.

8

K19481

SPRING WASHER

DRAIN PLUG, 1/4 BSP (eff. S/N Note B)

1шт.

Located in section L2-1 Ref. 17, K623825, 1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E121789

1шт.

K19501

WASHER

FIBRE WASHER, 1/2 in (eff. S/N Note B)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E121789

1шт.

K622060

PLUG, DRAIN

DRAIN TAP (up to S/N Note B)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E121789

1шт.

K922093

ADAPTER

ADAPTOR, drain tap (up to S/N Note B)

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E121789

1шт.

K30421

SEALING WASHER

SEALING WASHER, 7/8 in (up to S/N Note B)S, Includes: Ref. 9 - 16

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E121789

1шт.

9

K609440

PLUG

5/8 UNC, oil gallery rear

1шт.

K15512

WASHER

COPPER WASHER, 5/8 IN

1шт.

10

K609449

PLUG

5/8 UNC, oil gallery front

1шт.

11

K623797

PLUG

CORE PLUG, 1 3/4 in diameter

5шт.

12

K964843

RETAINER

OIL RETAINER, replaces K963411

1шт.

Oil dipstick in section L2/1 Ref. 19, K964774

1шт.

13

K940135

OIL SEAL

PACKING, halves

2шт.

14

K606558

SCREW

SOCKET SCREW, 5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

2шт.

15

K950938

GASKET,0.18mm Thk

halves (retainer to block) (eff. S/N Note A)

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E120366

1шт.

K914404

GASKET,0.18mm Thk

halves (retainer to block) (up to S/N Note A)

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK-E120366

1шт.

16

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in (retainer to block)

5шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (retainer-block)

5шт.
