Запчасти Case IH 1410 (H01-1) - STEERING&FRONT AXLE, FRONT AXLE 2WD TRAC., [A] 1410, 1410Q, 1410SK, 1412, 1412Q,1412SK [B] 1412G Steering & Front Axle

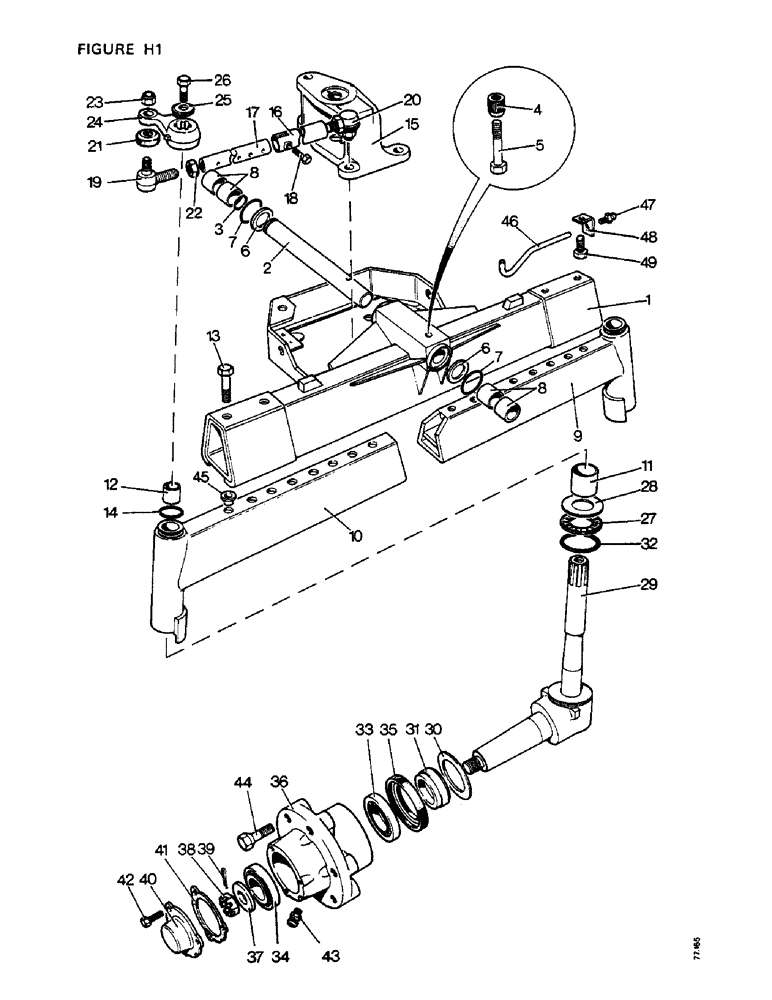

Схема запчастей Case IH 1410 - (H01-1) - STEERING&FRONT AXLE, FRONT AXLE 2WD TRAC., [A] 1410, 1410Q, 1410SK, 1412, 1412Q,1412SK [B] 1412G Steering & Front Axle
46
1
25
27
9
3
24
38
29
49
14
34
48
8
18
10
11
4
43
45
7
28
2
47
20
33
42
16
6
13
6
41
30
35
26
40
19
31
22
21
9
44
17
36
12
32
15
7
23
37
39
5

Артикул

Название

Примечание

Количество

1

K948568

SHAFT

CENTRE BEAM

1шт.

2

K947516

TRUNNION

PIN

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

'O' RING, 1 1/4 in internal diameter trunnion pin

1шт.

4

K913092

NUT

SCREWED BUSH

1шт.

5

K600505

BOLT

3/8 UNC x 2 3/4 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

6

K915421

WASHER

THRUST WASHER

2шт.

7

K15265

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

'O' RING, 2 1/8 in internal diameter

2шт.

8

K15597

BUSHING

BUSH, main frame

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K623794

CORE

PLUG, 1 5/8 in

1шт.

9

K962815

BEAM

EXTENSION, left-hand

1шт.

10

K962816

BEAM

EXTENSION, right-hand, Includes: Ref. 11 and 12

1шт.

11

K621367

BUSHING

BUSH, lower

1шт.

12

K621331

BUSHING

- upper

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

13

K601661

BOLT

7/8 UNC x 3 1/4 in

4шт.

K626350

SPRING

WASHER, 7/8 in

4шт.

14

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

'O' RING, 2 1/2 in internal diameter

2шт.

15

K948584

FORK

1шт.

16

K945876

TUBE,25.8 mm ID x 16.25 " L

SPACER TUBE, 16 in

2шт.

17

K945878

ROD

TRACK ROD

2шт.

18

K600563

BOLT

3/8 UNC x 2 1/4 in

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

280136

NUT,3/8"-16, G8

2шт.

19

K915962

BALL JOINT

BALL SOCKET ASSEMBLY, outer, Includes: Ref. 21 - 23

2шт.

20

K923766

BALL JOINT

BALL SOCKET ASSEMBLY, inner, Includes: Ref. 21 - 23

2шт.

21

K962155

CAP

DIRT EXCLUDER

1шт.

22

K622500

LOCK NUT

LOCKNUT, 3/4 in special

1шт.

23

131-377

LOCK NUT,5/8"-11, GC

NYLOC NUT, 5/8 UNF

1шт.

24

K942943

LEVER

STEERING LEVER

2шт.

25

K15595

WASHER

5/8 in special

2шт.

26a

K601213

BOLT

5/8 UNC x 3 1/4 in

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

26b

K601327

BOLT

5/8 UNC x 3 1/4 in special

2шт.

1412G

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in

2шт.

27

K620184

BEARING WASHER

THRUST-BEARING, (Replaces K620180)

2шт.

28

K626692

DISC

THRUST-WASHER

4шт.

29a

K962019

STEERING KNUCKLE

STUB AXLE ASSEMBLY, Includes: Ref. 30 and 31

2шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

29b

K962455

DIFFERENTIAL

STUB AXLE ASSEMBLY, Includes: Ref. 30 and 31

2шт.

1412G

1шт.

30

K910429

SPACER

DIRT EXCLUDER

1шт.

31

K910428

RING RACE

SLEEVE, oil seal

1шт.

32

K24764

O-RING

'O' RING, 2 5/8 in internal diameter

2шт.

33

K19186

BEARING, ROLLER

TAPER ROLLER BEARING, inner

2шт.

34

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

TAPER ROLLER BEARING, outer

2шт.

35

K623419

OIL SEAL

OIL SEAL, 2 3/4 x 2 3/4 x 1/2 in

2шт.

36

K916377

HUB

FRONT HUB

2шт.

K962986

SEAL

FRONT HUB BEARING AND SEAL KIT

2шт.

37

K626673

WASHER

3/4 in special

2шт.

38

K617157

NUT

SLOTTED NUT, 3/4 UNF

2шт.

39

K623603

PIN

SPLIT PIN, 11/64 x 1 1/8 in

2шт.

40

K908913

CAP

HUB CAP

2шт.

41

K15344

GASKET,0.25mm Thk

2шт.

42

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 58 in

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 UNC

6шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

44

K600875

BOLT

WHEEL BOLT, 1/2 UNC x 1 7/8 IN

12шт.

45

K628089

PLUG

PLASTIC PLUG, beam extension

12шт.

46

K948808

TUBE

trunnion greaser

1шт.

47

K622255

FITTING

GREASE FITTING, special

1шт.

48

K948809

BRACKET

1шт.

49

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

Выбрано товаров: 66
