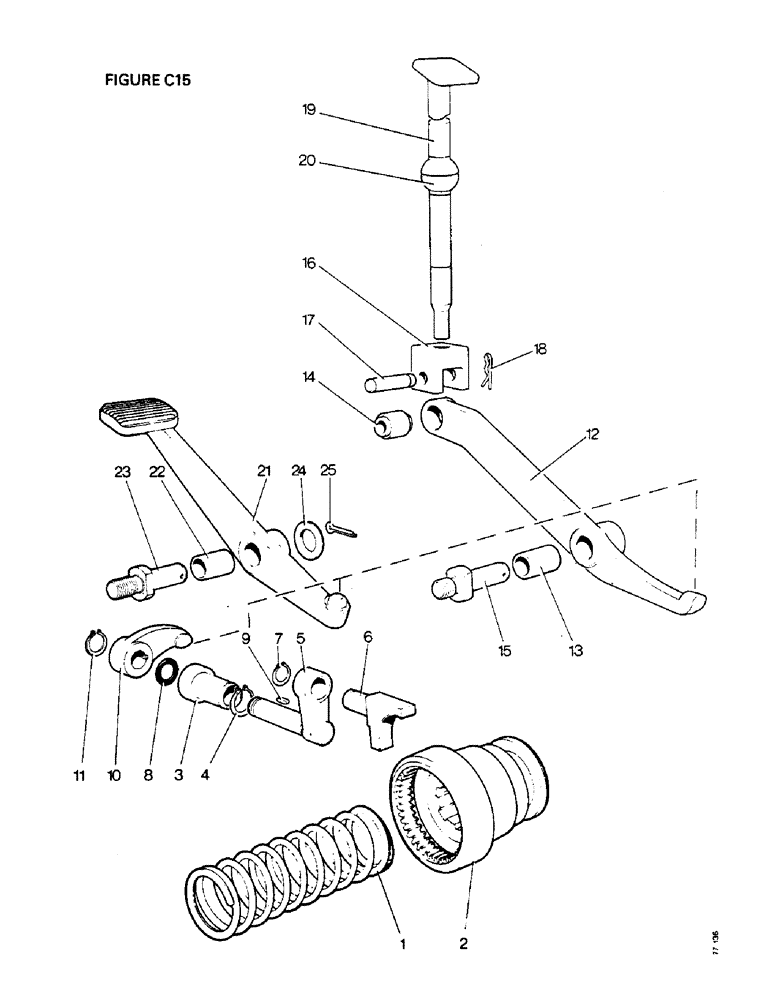

Запчасти Case IH 1410 (C15-1) - GEARBOX, DIFFERENTIAL LOCK, [A] 1410Q, 1410SK, 1412Q, 1412SK [B] 1410, 1410 4WD, 1412, 1412G Gearbox

1

K625119

SPRING

RETURN SPRING

1шт.

2

K940723

SLEEVE

LOCKING SLEEVE

1шт.

3

K903494

BUSHING

BUSH, rear axle case

1шт.

4

K34454

RING, SNAP

CIRCLIP, 7/8 in external

1шт.

5

K940724

ARM

SHAFT AND ARM

1шт.

6

K940725

SELECTOR

FORK

1шт.

K626914

WASHER

5/8 in special

1шт.

7

K11797

RING, SNAP

CIRCLIP, 5/8 in external

1шт.

8

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

'O' RING, 5/8 in internal diameter

1шт.

9

K622309

KEY

3/16 x 5/32 x 3/4 in

1шт.

10a

K950442

LEVER

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

10b

K903228

LEVER

1шт.

1410, 1410 4WD, 1412, 1412G

1шт.

11

K11797

RING, SNAP

CIRCLIP, 5/8 in external

1шт.

12

K955070

LEVER

ACTUATING LEVER, Replaces K950532

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

13

K628741

BUSHING

BUSH, lever pivot

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

14

K949602

BUSHING

BUSH, lever end

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

15

K950531

PIN

PIVOT PIN

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

K951643

BRACKET

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

K603003

SCREW

SETSCREW, 7/16 UNC x 1 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

16

K949600

FORK

END

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

17

K949601

PIN

CLEVIS PIN, 3/8 x 1 27/32 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

K19472

WASHER

3/8 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

18

K621573

RING, SNAP

SPRING CLIP

2шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

19a

K955590

PEDAL

differential lock (eff. S/N Note A)

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600, 1410, 1410 4WD, 1412, 1412G

1шт.

19b

K950533

LOCK

PEDAL, differential lock (up to S/N Note A)

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

280431

NUT,1/2"-13, G5

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

20

K950448

BEARING

SPHERICAL BEARING

1шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

K950447

PLATE

SUPPORT PLATE, bearing to cab floor

2шт.

1410Q, 1410SK, 1412Q, 1412SK-11203600

1шт.

21

K962020

LOCK

PEDAL, with bush, Includes: Ref. 22

1шт.

1410, 1410 4WD, 1412, 1412G

1шт.

22

K621377

BUSHING

BUSH, pedal

1шт.

1410, 1410 4WD, 1412, 1412G

1шт.

23

K916855

STUD

PIVOT PIN, 5/8 UNC

1шт.

1410, 1410 4WD, 1412, 1412G

1шт.

24

K19475

WASHER

5/8 in

1шт.

25

K19532

PIN

SPLIT PIN, 1/8 x 1 in

1шт.

1410, 1410 4WD, 1412, 1412G

1шт.
