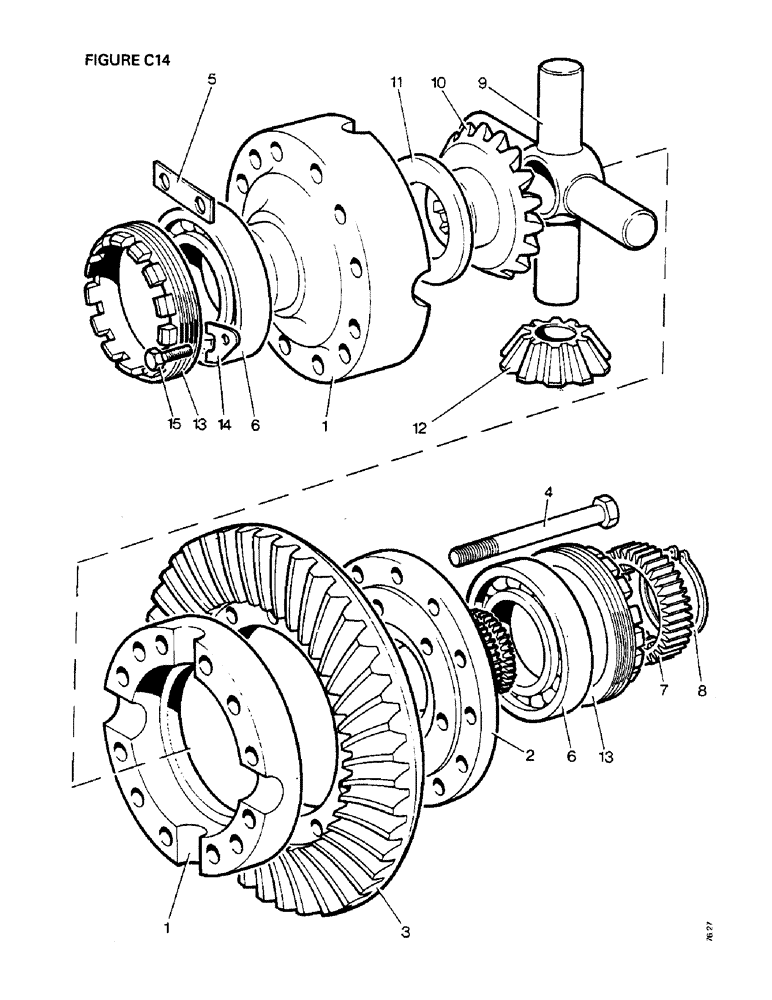

Запчасти Case IH 1410 (C14-1) - GEARBOX, DIFFERENTIAL, [A] 1410, 1410Q, 1410SK, [B] 1412, 1412Q,1412G,1412SK [C] 1410 4WD, 1410Q 4WD Gearbox

1

K942062

HOUSING

CAGE

1шт.

2

K940718

PLATE

END PLATE, cage

1шт.

3a

K964975

GEAR-SET

BEVEL PINION AND GEAR, synchromesh

1шт.

1410, 1410Q, 1410SK

1шт.

3b

K963416

GEAR

BEVEL PINION AND GEAR, Hydra-Shift

1шт.

1412, 1412Q, 1412G, 1412SK

1шт.

3c

K964541

WHEEL

BEVEL PINION AND GEAR, synchromesh

1шт.

1410 4WD, 1410Q 4WD

1шт.

1410, 1412, 1412G

1шт.

4

K600825

SCREW

BOLT, 1/2 UNC x 5 3/4 in

12шт.

5

K626424

WASHER

TABWASHER

6шт.

K607004

NUT

1/2 UNC

12шт.

6

K19010

BALL BEARING

2шт.

7

K940722

GEAR

RING

1шт.

8

K621475

RING, SNAP

CIRCLIP, 68 mm

1шт.

9

K940721

U-JOINT SPIDER

SPIDER, differential

1шт.

10

K30234

CONE PINION

BEVEL WHEEL

2шт.

11

K940805

WASHER, THRUST

THRUST WASHER

2шт.

12

K942317

DIFFERENTIAL

BEVEL PINION, 10 teeth

4шт.

13

K15007

RING, LOCKING

ADJUSTER WHEEL

2шт.

14

K626420

WASHER

LOCKPLATE

2шт.

15

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

(Replaces K602801) Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.
