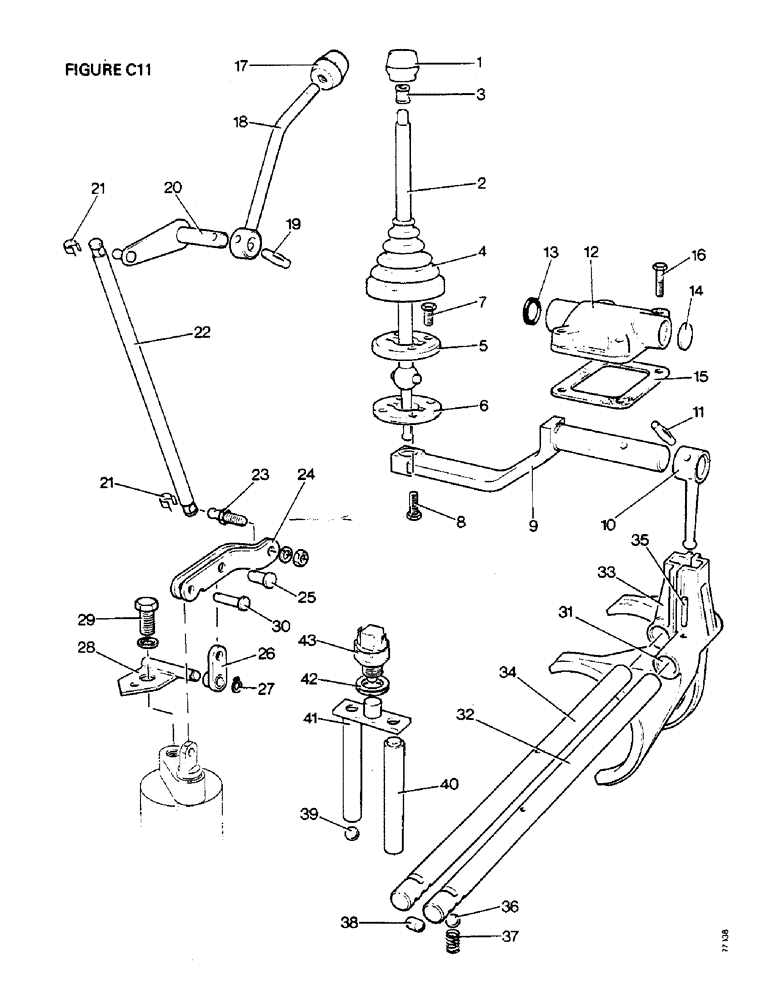

Запчасти Case IH 1410 (C11-1) - GEARBOX, SELECTOR MECHANISM, 1412Q, 1412SK Gearbox

1

K950690

BALL KNOB

KNOB, gear lever

1шт.

2a

K955595

SELECTOR

GEAR LEVER (eff. S/N Note A)

1шт.

1412Q, 1412SK-11203600

1шт.

2b

K950696

SELECTOR

GEAR LEVER (up to S/N Note A)

1шт.

1412Q, 1412SK-11203600

1шт.

3

K628474

RING

RETAINING RING, Serial Range: knob-lever

1шт.

4

K950494

RUBBER

GAITER, gear lever

1шт.

5

K950490

BALL

HOUSING, upper

1шт.

6

K950489

BALL

HOUSING, lower

1шт.

7

K613988

SCREW

SETSCREW, No. 10 UNF x 3/4 in

1шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

1шт.

8

K602737

SCREW

SETSCREW, 1/4 UNC x 1 in

2шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

9

K950414

SELECTOR

SHAFT

1шт.

10

K950624

SELECTOR

LEVER

1шт.

11

K623775

GROOVED PIN,5/16" x 1 1/2", Type E, Hardened

Pin, Grooved, 5/16" x 1 1/2", Type E, Hardened

1шт.

12

K950243

HOUSING

selector shaft

1шт.

13

K623630

SEAL

OIL SEAL

1шт.

14

K623810

PLUG

CORE PLUG, 1 in diameter

1шт.

15

K950543

GASKET,0.2mm Thk

(housing to gearbox cover)

1шт.

16

K602809

SCREW

BOLT, 5/16 UNC x 1 1/2 in (housing to gearbox cover)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (housing to gearbox cover)

4шт.

17

K950493

KNOB

Hydra-Shift lever

1шт.

18

K950312

GEAR

LEVER, Hydra-Shift

1шт.

19

K623718

PIN

3/16 x 1 in

1шт.

20

K950311

SHAFT

SELECTOR SHAFT

1шт.

21

K943448

SPRING

CLIP

2шт.

22

K950310

ROD

CONNECTING ROD

1шт.

23

K621904

BALL JOINT

BALL END

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K617000

NUT

1/4 UNF

1шт.

24

K950309

LEVER

OPERATING LEVER

1шт.

25

K625953

PIN

CLEVIS PIN, 1/4 x 3/4 in (operating lever to pivot link)

1шт.

K19470

WASHER

1/4 in (operating lever to pivot link)

1шт.

K19520

PIN

SPLIT-PIN, 1/16 x 3/8 in (operating lever to pivot link)

1шт.

26

K952627

LINK

PIVOT-LINK

1шт.

K19470

WASHER

1/4 in

1шт.

27

K621500

RING, SNAP

CIRCLIP, 1/4 in external

1шт.

28

K950307

PLATE

PIVOT PLATE

1шт.

29

K602902

SCREW

SETSCREW, 3/8 UNC x 3/4 in (plate to control valve)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (plate to control valve)

1шт.

K623886

PIN

SPRING DOWEL, 3/16 x 1/2 in (plate to control valve)

1шт.

30

K625957

PIN

CLEVIS PIN, 3/16 x 3/4 in (operating lever to valve spool)

1шт.

K626310

WASHER

3/16 in (operating lever to valve spool)

1шт.

K19520

PIN

SPLIT PIN, 1/16 x 3/8 in (operating lever to valve spool)

1шт.

31

K917217

SELECTOR

FORK (first and third)

1шт.

32

K917216

SELECTOR

ROD (first and third)

1шт.

33

K917219

SELECTOR

FORK (second and reverse)

1шт.

34

K917218

SELECTOR

ROD (second and reverse)

1шт.

35

K623748

PIN

3/16 x 1 1/8 in

2шт.

36

K13506

BALL

STEEL BALL, 3/8 in, detent

2шт.

37

K13507

SPRING

gear detent

2шт.

38

K30430

LOCKING DEVICE

GEAR LOCK

1шт.

39

K13506

BALL

STEEL BALL, 3/8 in

2шт.

40

K945208

PLUNGER

lower

1шт.

41

K945204

PLUNGER

AND PLATE

1шт.

42

K626895

SHIM,.002" Thk

(Switch) .002" Thk

1шт.

K626858

SHIM,.005" Thk

(Switch) .005" Thk

1шт.

K626894

SHIM,.010" Thk

(Switch) .010" Thk

1шт.

43

K940288

SWITCH

SAFETY SWITCH, starter

1шт.
