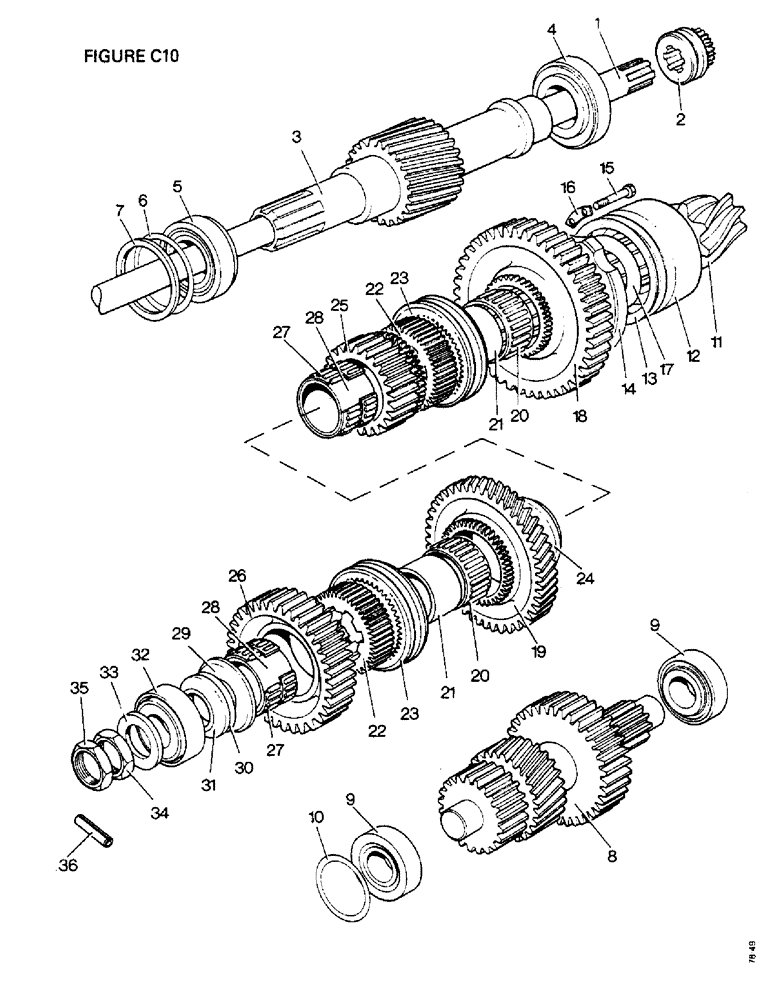

Запчасти Case IH 1410 (C10-1) - GEARBOX, SHAFTS AND GEARS, RANGE GEARBOX, [A] 1412, 1412Q, 1412SK [B] 1412G Gearbox

1a

K948405

SHAFT

PTO CARDAN SHAFT, reversible shaft PTO (eff. S/N Note B) [A]

1шт.

1412Q, 1412, 1412G-11050187, B 1412Q, 1412-11200753

1шт.

2

K946388

GEAR

SLIDING GEAR DOG CLUTCH (eff. S/N Note B) [A]

1шт.

1412Q, 1412, 1412G-11050187, B 1412Q, 1412-11200753

1шт.

1b

K915583

PTO

CARDAN SHAFT (not-reversible shaft PTO) (up to S/N Note B)

1шт.

1412Q, 1412-11200753

1шт.

K89181

COUPLING, BREAK AWAY

COUPLING SLEEVE (not-reversible shaft PTO) (up to S/N Note B)

1шт.

1412Q, 1412-11200753

1шт.

K600009

BOLT

1/4 UNC x 1 7/8 in (not-reversible shaft PTO) (up to S/N Note B)

1шт.

1412Q, 1412-11200753

1шт.

K607440

NUT

CLEVELOC NUT, 1/4 UNC (not-reversible shaft PTO) (up to S/N Note B)

1шт.

1412Q, 1412-11200753

1шт.

3

K928489

DRIVE SHAFT

DRIVESHAFT

1шт.

4

K620117

ROLLER

TAPER ROLLER BEARING

1шт.

5

K19186

BEARING, ROLLER

TAPER ROLLER BEARING

1шт.

6

K626254

SHIM,.002" Thk

1шт.

K626255

SHIM,.005" Thk

1шт.

K626256

SHIM,.015" Thk

1шт.

K626257

SHIM,.030" Thk

1шт.

7

K940603

BUSHING

DISTANCE PIECE

1шт.

8a

K949739

GEARBOX ASSY

LAYSHAFT (eff. S/N Note A)

1шт.

1412Q, 1412, 1412G-11050187

1шт.

8b

K946503

SHAFT

LAYSHAFT (up to S/N Note A)

1шт.

1412Q, 1412, 1412G-11050187

1шт.

9

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

TAPER ROLLER BEARING

2шт.

10

K928485

SHIM

0.002 in

1шт.

K928486

SHIM

0.005 in

1шт.

K928487

SHIM

0.015 in

1шт.

K928488

SHIM

0.030 in

1шт.

11

K963416

GEAR

BEVEL PINION AND SPIRAL GEAR, 8/41 teeth

1шт.

12

K620062

BEARING, ROLLER

TAPER ROLLER BEARING

1шт.

13

K910457

SHIM,.002" Thk

1шт.

K910456

SHIM,.005" Thk

1шт.

K910455

SHIM

0.015 in

1шт.

K910454

SHIM,.030" Thk

1шт.

14

K917472

SUPPORT

PLATE, bearing

1шт.

15

K600405

BOLT

3/8 UNC x 1 5/8 in

6шт.

16

K626387

WASHER

TABWASHER

3шт.

17

K928637

COLLAR

1шт.

18

K916877

GEAR

46 teeth, first range

1шт.

19

K928319

GEAR

43 teeth, reverse range

1шт.

20

K620081

NEEDLE BEARING

NEEDLE ROLLER BEARING

2шт.

21

K917103

BUSHING

BEARING BUSH, shaft

2шт.

22

K928636

GEAR

FIXED DOG CLUTCH

2шт.

23

K917109

GEAR

SLIDING DOG CLUTCH

2шт.

24

K928637

COLLAR

1шт.

25a

K949738

GEAR

26 teeth, third range (eff. S/N Note A)

1шт.

1412Q, 1412, 1412G-11050187

1шт.

25b

K946502

GEAR

25 teeth, third rnage (up to S/N Note A)

1шт.

1412Q, 1412, 1412G-11050187

1шт.

26

K928634

GEAR

36 teeth, second range

1шт.

27

K620080

NEEDLE BEARING

NEEDLE ROLLER BEARING

4шт.

28

K917104

BUSHING

BEARING BUSH, long

2шт.

29

K917106

COLLAR

1шт.

30

K948058

SHIM, 0.002 in

1шт.

K948059

SHIM, 0.005 in

1шт.

K948060

SHIM

0.015 in

1шт.

K948061

PIPE

SHIM, 0.030 in

1шт.

31

K928641

BUSHING

SPACER

1шт.

32

K620061

BEARING, ROLLER

TAPER ROLLER BEARING

1шт.

33

K14687

WASHER

1 1/8 in

1шт.

34

K623317

LOCK NUT

1 1/8 BSF, left-hand

1шт.

35

K622805

LOCK NUT

LOCKNUT, 1 1/8 BSF, left-hand

1шт.

36

K623885

PIN

TENSION PIN, 3/16 x 1 1/2 in

1шт.
