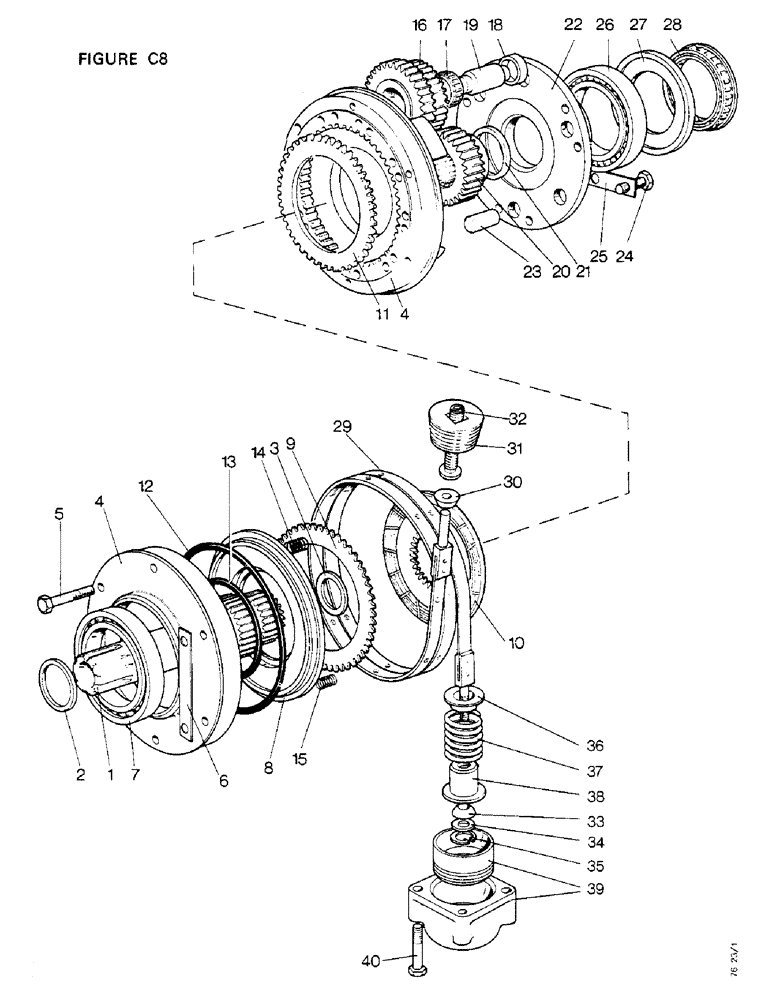

Запчасти Case IH 1410 (C08-1) - GEARBOX, REAR PLANETARY UNIT, 1412, 1412Q, 1412G, 1412SK Gearbox

1

K916873

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K908509

WASHER

THRUST WASHER, front

1шт.

3

K917185

WASHER

THRUST WASHER, inner

1шт.

4

K917836

CARRIER

AND CYLINDER, Includes: Ref. 5 and 6

1шт.

5

K600207

BOLT

5/16 UNC x 1 3/4 in

6шт.

6

K626386

WASHER

TABWASHER

3шт.

7

K620082

BEARING, BALL

BALL BEARING

1шт.

8

K943958

PISTON

1шт.

K963594

CLUTCH

PLATE PACK, selective assembly

1шт.

9

CLUTCH PLATE, steel (not supplied separately)

4шт.

10

CLUTCH PLATE, grooved faces (not supplied separately)

3шт.

CLUTCH PLATE, plain bronze faces (not supplied separately)

1шт.

11

BACKING PLATE, 0-184 in (not supplied separately)

1шт.

BACKING PLATE, 0-192 in (not supplied separately)

1шт.

BACKING PLATE, 0-198 in (not supplied separately)

1шт.

BACKING PLATE, 0-204 in (not supplied separately)

1шт.

12

K623576

O-RING,6.975" ID x 7.525" OD x 0.275"

'O' RING, 7 in internal diameter piston

1шт.

13

K623575

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

'O' RING, 4 in internal diameter piston

1шт.

14

K929779

SPRING

inner

9шт.

15

K13507

SPRING

outer

18шт.

16

K963527

GEAR

PLANET GEAR, (35/22 teeth), set of three

1шт.

17

K620275

BEARING, NEEDLE

NEEDLE ROLLER BEARING

6шт.

18

K929054

BUSHING

DISTANCE PIECE

3шт.

19

K940290

PIN

BEARING PIN

3шт.

20

K916875

GEAR

SUN GEAR, (24 teeth)

1шт.

21

K917186

WASHER

THRUST WASHER, rear

1шт.

22

K917838

CARRIER

END COVER, carrier

1шт.

23

K621808

PIN

DOWEL, 5/8 x 1 1/4 in

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

25

K626388

WASHER

TABWASHER

3шт.

26

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

1шт.

27

K917834

PLATE

ABUTMENT PLATE

1шт.

28

K917835

BEARING

FREEWHEEL

1шт.

29

K943410

BRAKE BAND

1шт.

30

K940064

WASHER

CONICAL WASHER, 3/8 in

1шт.

K607377

LOCK NUT

3/8 UNC

1шт.

31

K623827

PLUG

TAPER PLUG, 1 in BSP

1шт.

32

K946253

SCREW,1/2" - 13 x 1 3/4"

STOP SCREW, 1/2 UNC x 1 3/4 in special

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC

1шт.

33

K917590

WASHER

SPHERICAL WASHER, 3/8 in

1шт.

232-1416

LOCK NUT,3/8"-16, GC

NYLOC NUT, 3/8 UNC

1шт.

34

K626314

WASHER

7/16 in

1шт.

35

K621761

RING, SNAP

CIRCLIP, 7/8 in internal

1шт.

36

K940346

STOP

1шт.

37

K625256

SPRING

1шт.

38

K917591

SLEEVE

1шт.

39

K963538

BRAKE

PISTON AND CYLINDER

1шт.

40

K600209

BOLT

5/16 UNC x 2 in, Serial Range: (cylinder-spacer)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (cylinder-spacer)

4шт.

K626682

WASHER

5/16 in, Serial Range: (cylinder-spacer)

1шт.
