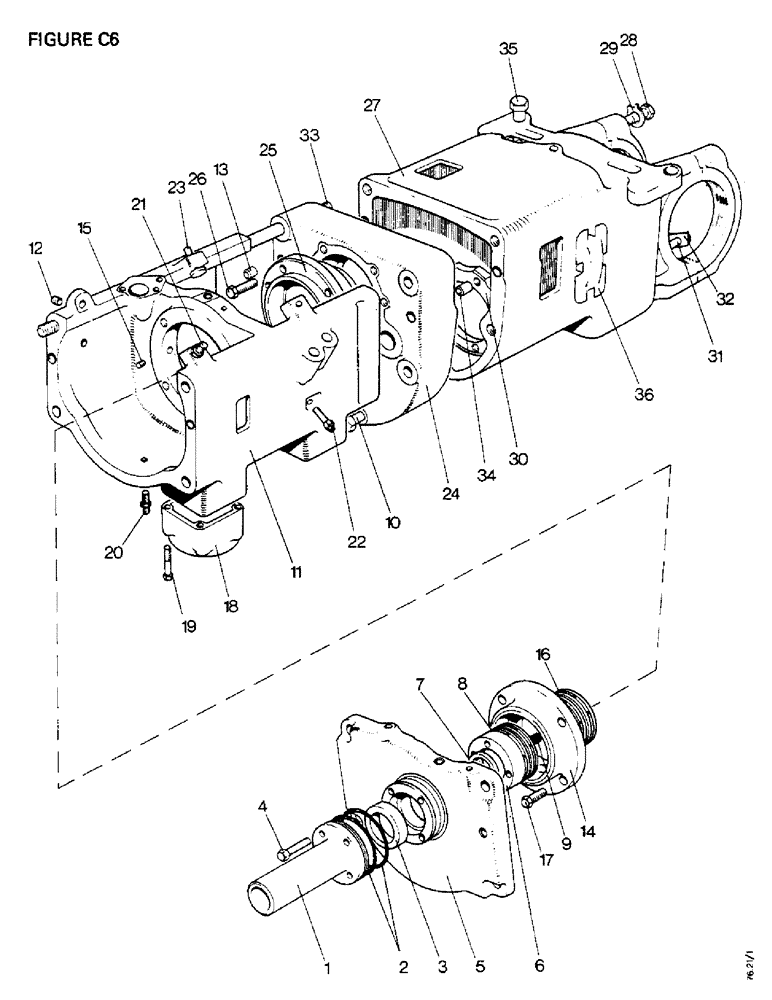

Запчасти Case IH 1410 (C06-1) - GEARBOX, GEARBOX ASSEMBLIES, [A] 1412, 1412Q, 1412SK, [B] 1412G Gearbox

K927143

GEARBOX ASSY

GEARBOX, complete, both sections

1шт.

1412, 1412Q, 1412SK

1шт.

K932035

GEARBOX, complete, both sections

1шт.

1412G

1шт.

K963537

GEARBOX ASSY

GEARBOX, complete, semi-automatic section only

1шт.

1

K940294

SUPPORT

SNOUT

1шт.

2

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 2 3/4 in internal diameter, support snout

2шт.

3

K623415

SEAL

OIL SEAL, 46 x 65 x 10 mm

1шт.

4

K602705

SCREW

SETSCREW, 1/4 UNC x 1 in

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

4шт.

5

K954258

PLATE

END PLATE, front, replace K917470 (eff. S/N Note A)

1шт.

1412, 1412Q, 1412G, 1412SK-11202882

1шт.

K943635

STEP BOLT

5/16 UNC x 2 in, special (end, Serial Range: plate-spacer)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (end, Serial Range: plate-spacer)

2шт.

6

K929301

SUPPORT

SLEEVE

1шт.

7

K908508

BUSHING

BUSH, support sleeve

1шт.

8

K917796

RING, PISTON

SEAL RING

2шт.

9

K606812

SCREW

1/4 UNC, Wedgelock

4шт.

10

K600417

BOLT

3/8 UNC x 3 1/4 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

11

K929441

BUSHING

SPACER

1шт.

12

K606021

SCREW

GRUBSCREW, 5/16 UNC x 5/16 in, spacer

1шт.

13

K621805

PIN

DOWEL, 3/8 x 7/8 in

2шт.

14

K929300

HOUSING

spacer

1шт.

15

K606200

SCREW

GRUBSCREW, 1/4 UNC x 1/4 in, housing

1шт.

16

K917796

RING, PISTON

SEAL RING

2шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1 1/8 in

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

4шт.

18

K963538

BRAKE

CYLINDER AND PISTON, brake band

2шт.

19

K600209

BOLT

5/16 UNC x 2 in (replaces K600208)

8шт.

K626682

WASHER

5/16 in (replaces K600208)

8шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

8шт.

20

K929459

SCREW

LOCATING SCREW, 5/16 UNF x 1 3/8 in (front brake band)

2шт.

21

K929460

SCREW,5/16" - 24 x 1 3/8"

LOCATING SCREW, 5/16 UNF x 1 3/8 in (front brake band)

1шт.

K617051

NUT

LOCKNUT, 5/16 UNF (front brake band)

3шт.

22

K929458

SCREW

LOCATING SCREW, 3/8 UNF x 1 3/4 in (rear brake band)

1шт.

K617052

NUT

LOCKNUT, 3/8 UNF (rear brake band)

1шт.

23

K929460

SCREW,5/16" - 24 x 1 3/8"

LOCATING SCREW, 5/16 UNF x 1 3/8 in (rear brake band)

3шт.

K617051

NUT

LOCKNUT, 5/16 UNF (rear brake band)

3шт.

24

K940299

PLATE

END PLATE, centre

1шт.

25

K928480

HOUSING

centre plate

1шт.

26

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1 1/8 in

6шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

6шт.

27a

K962991

ADJUSTER

CASE, range gearbox

1шт.

1412, 1412Q, 1412SK

1шт.

28a

K601242

BOLT

5/8 UNC x 3 3/4 in

4шт.

1412, 1412Q, 1412SK

1шт.

29

K626389

BEARING WASHER

TABWASHER

4шт.

1412, 1412Q, 1412SK

1шт.

27b

K955037

PLATE

CASE, range gearbox, replaces K941325

1шт.

1412, 1412Q, 1412G, 1412SK-11202882

1шт.

1412G

1шт.

28b

K608609

STUD

5/8 UNC x 6 3/4 in

4шт.

1412G

1шт.

K626389

BEARING WASHER

TABWASHER

4шт.

1412, 1412Q, 1412G, 1412SK-11202882

1шт.

1412G

1шт.

K607006

NUT

5/8 UNC

4шт.

1412G

1шт.

30

K917472

SUPPORT

PLATE, pinion bearing

1шт.

31

K600405

BOLT

3/8 UNC x 1 5/8 in

6шт.

32

K626387

WASHER

TABWASHER

3шт.

33

K608410

STUD

1/2 UNC x 17 5/8 in

4шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in

4шт.

K607004

NUT

1/2 UNC

4шт.

34

K621805

PIN

DOWEL, 3/8 x 7/8 in

4шт.

35

K601306

BOLT

5/8 UNC x 2 1/2 in (case to main frame)

2шт.

K920656

BUSHING

BUSH (case to main frame)

2шт.

K626239

SHIM,.010" Thk

(Case to main frame) .010" Thk

1шт.

36

K947189

COVER

PLATE

1шт.
