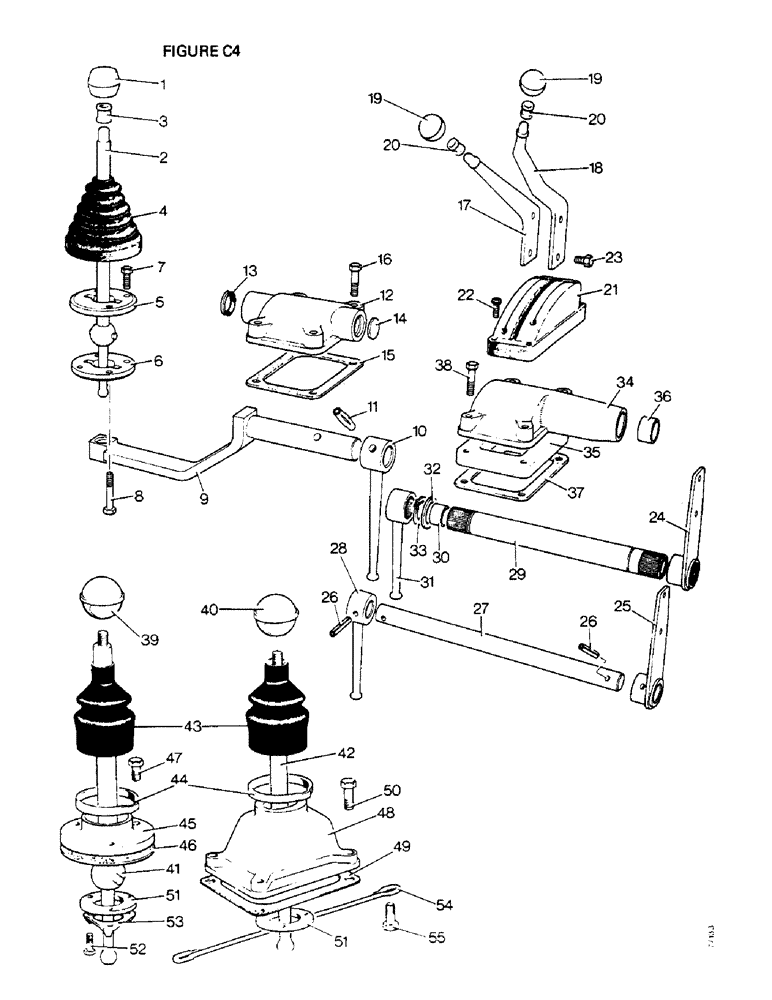

Запчасти Case IH 1410 (C04-1) - GEARBOX, GEAR SHIFT LEVERS, [A] 1410Q, 1410SK, [B] 1410, 1410 4WD Gearbox

1

K950690

BALL KNOB

KNOB, gear lever

1шт.

1410Q, 1410SK

1шт.

2a

K955595

SELECTOR

GEAR LEVER (eff. S/N Note B)

1шт.

1410Q, 1410SK-11201289 B 1410Q, 1410SK-11203600

1шт.

1410Q, 1410SK

1шт.

2b

K950696

SELECTOR

GEAR LEVER (up to S/N Note B)

1шт.

1410Q, 1410SK - 11203600

1шт.

1410Q, 1410SK

1шт.

3

K628474

RING

RETAINING RING, Serial Range: knob-lever

1шт.

1410Q, 1410SK

1шт.

4

K950494

RUBBER

GAITER, gear lever

1шт.

1410Q, 1410SK

1шт.

5

K950490

BALL

HOUSING, upper

1шт.

1410Q, 1410SK

1шт.

6

K950489

BALL

HOUSING, lower

1шт.

1410Q, 1410SK

1шт.

7

K613988

SCREW

SETSCREW, No. 10 UNF x 3/4 in

1шт.

1410Q, 1410SK

1шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

1шт.

1410Q, 1410SK

1шт.

8

K602737

SCREW

SETSCREW, 1/4 UNC x 1 in

2шт.

1410Q, 1410SK

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

1410Q, 1410SK

1шт.

9

K950414

SELECTOR

SHAFT

1шт.

1410Q, 1410SK

1шт.

10

K950623

SELECTOR

LEVER

1шт.

1410Q, 1410SK

1шт.

11

K623775

GROOVED PIN,5/16" x 1 1/2", Type E, Hardened

Pin, Grooved, 5/16" x 1 1/2", Type E, Hardened

1шт.

1410Q, 1410SK

1шт.

12

K950243

HOUSING

selector shaft

1шт.

1410Q, 1410SK

1шт.

13

K623630

SEAL

OIL SEAL

1шт.

1410Q, 1410SK

1шт.

14

K623810

PLUG

CORE PLUG, 1 in diameter

1шт.

1410Q, 1410SK

1шт.

15

K950543

GASKET,0.2mm Thk

(housing to gearbox cover)

1шт.

1410Q, 1410SK

1шт.

16

K602809

SCREW

BOLT, 5/16 UNC x 1 1/2 in (housing to gearbox cover)

4шт.

1410Q, 1410SK

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (housing to gearbox cover)

4шт.

1410Q, 1410SK

1шт.

17

K953812

LEVER

HAND LEVER, upper, high/low (used together will replace K950686 and K950683) (eff. S/N Note A)

1шт.

1410Q, 1410SK-11201289 B 1410Q, 1410SK-11203600

1шт.

1410Q, 1410SK

1шт.

18

K953810

LEVER

HAND LEVER, upper, low/normal (used together will replace K950686 and K950683)

1шт.

1410Q, 1410SK

1шт.

19

K950690

BALL KNOB

KNOB, hand levers

2шт.

1410Q, 1410SK

1шт.

20

K628474

RING

RETAINING RING, Serial Range: knobs-levers

2шт.

1410Q, 1410SK

1шт.

21

K950822

RUBBER

GAITER, hand levers

1шт.

1410Q, 1410SK

1шт.

22

K615408

SCREW,Pan, #10 - 32 x 1"

SETSCREW, No. 10 UNF x 1 in (gaiter to cab floor)

4шт.

1410Q, 1410SK

1шт.

K626310

WASHER

3/16 in (gaiter to cab floor)

4шт.

1410Q, 1410SK

1шт.

23

K602840

SCREW

SETSCREW, 5/16 UNC x 1/2 in (hand levers)

4шт.

1410Q, 1410SK

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (hand levers)

4шт.

1410Q, 1410SK

1шт.

24

K950429

LEVER

HAND LEVER, lower, high/low

1шт.

1410Q, 1410SK

1шт.

25

K950436

LEVER

HAND LEVER, lower, slow/normal

1шт.

1410Q, 1410SK

1шт.

26

K623726

PIN

1/4 in x 1 1/2 in

2шт.

1410Q, 1410SK

1шт.

27

K950003

SELECTOR

SHAFT (slow/normal)

1шт.

1410Q, 1410SK

1шт.

28

K950370

SELECTOR

LEVER (slow/normal)

1шт.

1410Q, 1410SK

1шт.

29

K950001

SELECTOR

TUBE, high/low

1шт.

1410Q, 1410SK

1шт.

30

K621303

BUSHING

BUSH, Serial Range: shaft-tube

2шт.

1410Q, 1410SK

1шт.

31

K950371

SELECTOR

LEVER, high/low

1шт.

1410Q, 1410SK

1шт.

32

K950002

BUSHING

WASHER, 1 in

1шт.

1410Q, 1410SK

1шт.

33

K11128

CIRCLIP

1 in external

2шт.

1410Q, 1410SK

1шт.

34

K950000

HOUSING

1шт.

1410Q, 1410SK

1шт.

35

K950754

BUSHING

SPACER, Serial Range: housing-cover

1шт.

1410Q, 1410SK

1шт.

36

K628750

BUSHING

BUSH, housing

1шт.

1410Q, 1410SK

1шт.

37

K950543

GASKET,0.2mm Thk

(housing and spacer to gearbox cover)

2шт.

1410Q, 1410SK

1шт.

38

K600217

BOLT

5/16 UNC x 3 in (housing and spacer to gearbox cover)

4шт.

1410Q, 1410SK

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (housing and spacer to gearbox cover)

4шт.

1410Q, 1410SK

1шт.

39

K920787

KNOB

gear lever

1шт.

1410, 1410 4WD

1шт.

40

K902270

KNOB

range lever

1шт.

1410, 1410 4WD

1шт.

41

K915598

SELECTOR

GEAR LEVER, 1, 2, 3 and reverse

1шт.

1410, 1410 4WD

1шт.

42

K943843

SELECTOR

RANGE LEVER, high/low

1шт.

1410, 1410 4WD

1шт.

43

K929631

BOOT

DIRT EXCLUDER

2шт.

1410, 1410 4WD

1шт.

44

K621957

HOSE

CLIP, dirt excluder

2шт.

1410, 1410 4WD

1шт.

45

K929630

HOUSING

BALL HOUSING, gear lever

1шт.

1410, 1410 4WD

1шт.

46

K901835

GASKET

(housing to gearbox cover)

1шт.

1410, 1410 4WD

1шт.

47

K602705

SCREW

SETSCREW, 1/4 UNC x 1 in (housing to gearbox cover)

3шт.

1410, 1410 4WD

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in (housing to gearbox cover)

3шт.

1410, 1410 4WD

1шт.

48

K929629

BALL

HOUSING, range lever

1шт.

1410, 1410 4WD

1шт.

49

K915597

GASKET,0.2mm Thk

(housing to gearbox cover)

1шт.

1410, 1410 4WD

1шт.

50

K602706

SCREW

SETSCREW, 1/4 UNC x 1 1/8 in (housing to gearbox cover)

4шт.

1410, 1410 4WD

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in (housing to gearbox cover)

4шт.

1410, 1410 4WD

1шт.

51

K903074

SUPPORT

PLATE

2шт.

1410, 1410 4WD

1шт.

52

K603630

SCREW

SETSCREW, No. 10 UNF x 3/8 in, Serial Range: (plates-housings)

6шт.

1410, 1410 4WD

1шт.

53

K904386

WASHER

TABWASHER, Serial Range: (plates-housings)

2шт.

1410, 1410 4WD

1шт.

54

K914348

SPRING

BAULK SPRING, range lever

1шт.

1410, 1410 4WD

1шт.

55

K602703

SCREW

SETSCREW, 1/4 UNC x 3/4 in (spring to gearbox cover)

2шт.

1410, 1410 4WD

1шт.

K607251

NUT

DOMED NUT, 1/4 UNC (spring to gearbox cover)

2шт.

1410, 1410 4WD

1шт.
