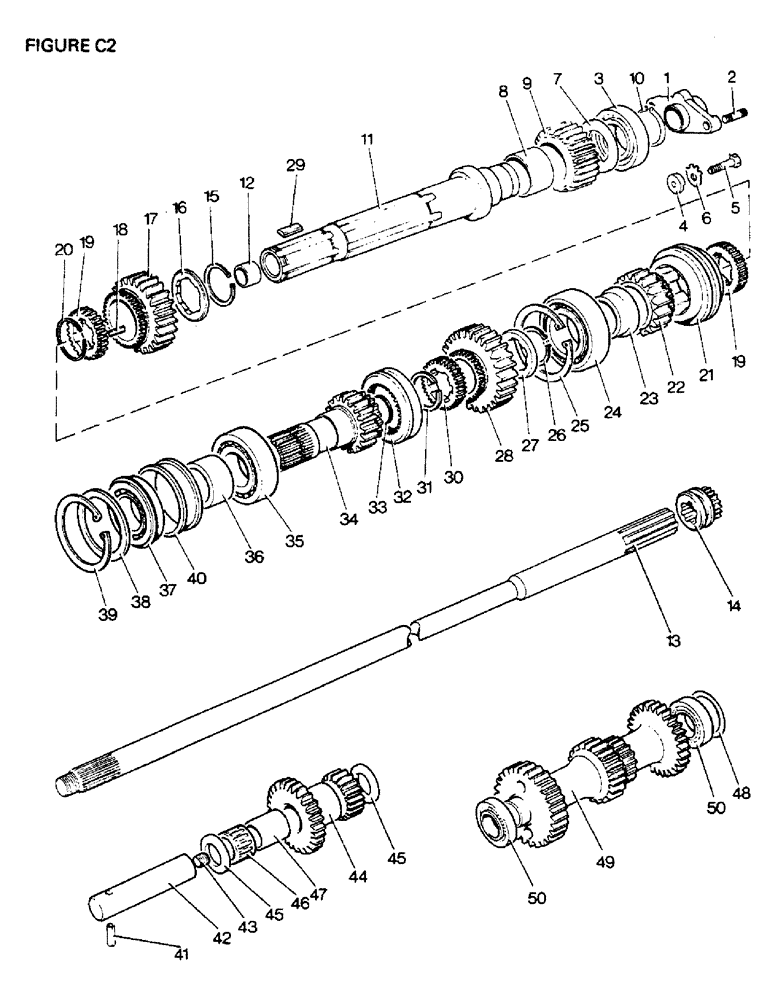

Запчасти Case IH 1410 (C02-1) - GEARBOX, DRIVESHAFT AND LAYSHAFTS, [A] 1410, 1410Q, 1410SK [B] 1410 4WD, 1410Q 4WD Gearbox

1

K947917

MUFFLER

MUFF ASSEMBLY, lubrication

1шт.

2

K608121

STUD

5/16 UNC x 1 7/8 in, replaces K600204

2шт.

231-1445

NUT,5/16"-18, GB

CLEVELOC NUT, 5/16 UNC

2шт.

3

K19047

BALL BEARING

1шт.

4

K910447

WASHER

RETAINING WASHER

1шт.

5

K600144

BOLT

1/4 UNC x 1 3/8 in

1шт.

6

K33127

WASHER

TABWASHER

1шт.

K908372

SHIM,.003" Thk

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

K908373

SHIM,.005" Thk

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

K908374

SHIM,.020" Thk

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

7

K908940

WASHER

THRUST WASHER

1шт.

8

K621376

BUSHING

BUSH

1шт.

9

K963566

GEAR

REVERSE GEAR, with bush, 22 teeth

1шт.

10

K12922

RING, SNAP

CIRCLIP, 1 3/4 in external

1шт.

11

K947538

SHAFT ASSY.

DRIVESHAFT, 12-speed Livedrive

1шт.

12

K24774

BUSHING

BUSH, driveshaft

1шт.

13

K948447

SHAFT

LIVE PTO CARDAN SHAFT (reversible shaft PTO) (eff. S/N Note A)

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

14

K946388

GEAR

SLIDING GEAR, DOG CLUTCH (reversible shaft PTO) (eff. S/N Note A)

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

K944258

SHAFT

LIVE PTO CARDAN SHAFT (non-reversible shaft PTO) (up to S/N Note A)

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

1410, 1410Q, 1410SK

1шт.

K89181

COUPLING, BREAK AWAY

COUPLING SLEEVE (non-reversible shaft PTO) (up to S/N Note A)

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

1410, 1410Q, 1410SK

1шт.

K600009

BOLT

1/4 UNC x 1 7/8 in (non-reversible shaft PTO) (up to S/N Note A)

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

1410, 1410Q, 1410SK

1шт.

86625061

NUT,1/4"-20, GB

CLEVELOC NUT, 1/4 UNC (reversible shaft PTO) (up to S/N Note A)

1шт.

1410, 1410 4WD, 1410Q, 1410Q 4WD, 1410SK-11200753

1шт.

1410, 1410Q, 1410SK

1шт.

15

K12300

RING, SNAP

CIRCLIP, 2 in external

1шт.

16

K940975

DISC

WASHER, splined

1шт.

17

K947543

GEAR

high range, 26 teeth

1шт.

18

K940989

PLATE

BEARING PAD

12шт.

19

K943435

GEAR

DOG CLUTCH

2шт.

20

K621865

RING, SNAP

CIRCLIP, 50mm external

1шт.

21

K943613

CLUTCH

SLIDING GEAR, high/low

1шт.

22

K947542

GEAR

low speed, 18 teeth

1шт.

23

NLS

NO LONGER SERVICED

SHOULDERED BUSH

1шт.

24

K12311

BEARING, ROLLER, CYL

ROLLER BEARING

1шт.

25

K12236

RING, SNAP

CIRCLIP, 4 in external

1шт.

26

K12922

RING, SNAP

CIRCLIP, 1 3/4 in external

2шт.

27

K926249

WASHER

splined

1шт.

28

K947541

GEAR

28 teeth

1шт.

29

K928621

WEAR PAD

BEARING PAD

6шт.

30

K928226

GEAR

FIXED DOG CLUTCH

1шт.

31

K621896

RING, SNAP

CIRCLIP, 1 3/4 in external

1шт.

32

K943644

SYNCHRO RING

SLIDING DOG CLUTCH, slow/normal

1шт.

33

K623634

SEAL

ING RING, 1 1/8 in internal diameter

1шт.

34

K947536

GEAR

DRIVING GEAR, 18 teeth

1шт.

35

K12275

BEARING, ROLLER, CYL

ROLLER BEARING

1шт.

36

K627238

BUSHING

SPACER, driving gear

1шт.

37

K620149

BALL

BEARING

1шт.

38

K949218

BUSHING

ABUTMENT WASHER, bearing

1шт.

39

K621484

RING, SNAP

CIRCLIP, 3 5/8 in, internal

1шт.

40

K627304

BUSHING

SPACER, end plate

1шт.

41

K623895

PIN

SPRING PIN, 5/16 x 2 in

1шт.

42

K917918

SHAFT

SPINDLE, layshaft

1шт.

43

K606261

SCREW

PLUG, 7/16 UNC

1шт.

44

K947537

SHAFT

LAYSHAFT, with integral gears

1шт.

45

K626714

WASHER

THRUST WASHER

2шт.

46

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

NEEDLE ROLLER BEARING

2шт.

47

K924495

BUSHING

DISTANCE PIECE

1шт.

48

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

1шт.

K914703

SHIM,.003" Thk

1шт.

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

1шт.

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

1шт.

49

K947544

SHAFT

LAYSHAFT, with integral gears

1шт.

50

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

ROLLER BEARING (Replaces K620076)

2шт.
