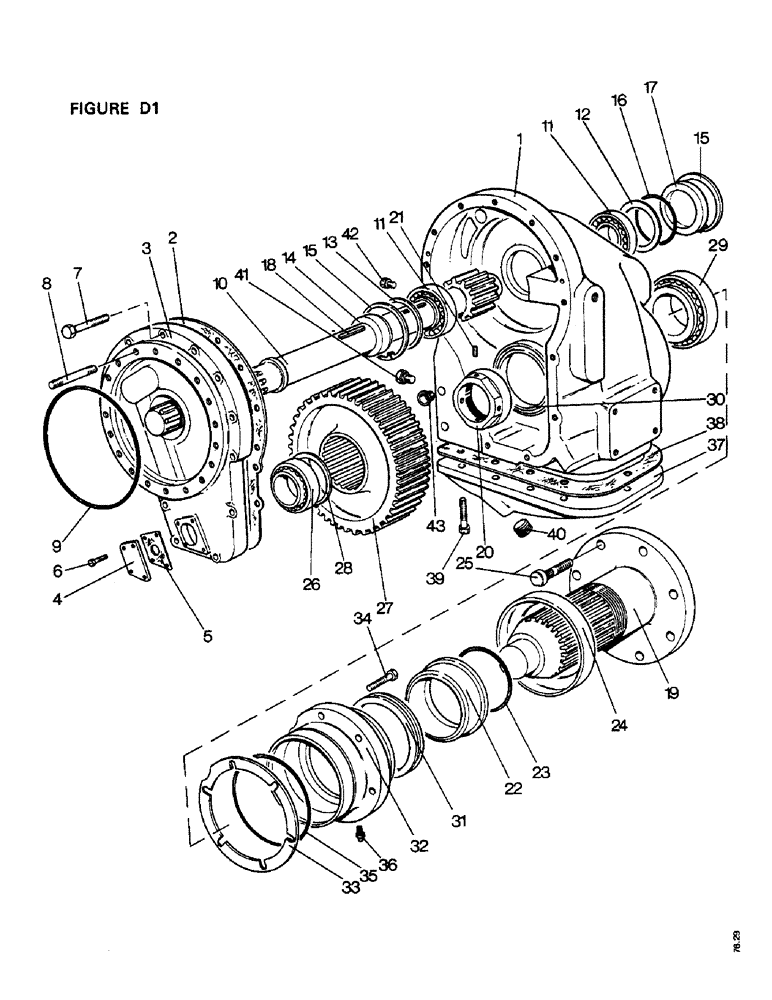

Запчасти Case IH 1410 (D1-1) - FINAL DRIVES, FINAL DRIVE REDUCTION UNITS Final Drive Reductions

1

K942012

GEAR

REDUCTION GEAR CASE, right-hand

1шт.

1410, 1412, 1412G

1шт.

K942013

GEAR

REDUCTION GEAR CASE, left-hand

1шт.

1410, 1412, 1412G

1шт.

1a

K951242

GEAR

REDUCTION GEAR CASE, right-hand

1шт.

1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

K951246

HOUSING

REDUCTION GEAR CASE, left-hand

1шт.

1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

2

K940834

GASKET,0.25mm Thk

2шт.

3a

K940835

BUSHING

BRAKE HOUSING, right-hand

1шт.

1410, 1412, 1412G

1шт.

K940836

BUSHING

BRAKE HOUSING, left-hand

1шт.

1410, 1412, 1412G

1шт.

3b

K951241

BUSHING

BRAKE HOUSING, right-hand

1шт.

1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

K951245

BUSHING

BRAKE HOUSING, left-hand

1шт.

1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

K954548

PLUG

1/2 in special, brake housing

2шт.

4

K940851

COVER

brake linkage

2шт.

5

K940852

GASKET

(cover to brake housing)

2шт.

6

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in (cover to brake housing)

8шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in (cover to brake housing)

8шт.

7

K600810

BOLT

1/2 UNC x 2 1/2 in (brake housing to reduction gear case)

26шт.

1410, 1412, 1412G

1шт.

1410 4WD

1шт.

7

K600810

BOLT

1/2 UNC x 2 1/2 in (brake housing to reduction gear case)

22шт.

1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410Q 4WD

1шт.

K600812

BOLT

1/2 UNC x 2 3/4 (brake housing to reduction gear case)

4шт.

1412, 1412Q, 1412SK

1шт.

1410, 1412, 1412G

1шт.

1410Q 4WD

1шт.

K11482

PIN

DOWEL, 7/16 x 1 1/4 in (brake housing to reduction gear case)

4шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (brake housing to reduction gear case)

26шт.

8

K608418

STUD

1/2 UNC x 2 13/16 in (reductions to rear axle case)

20шт.

K11482

PIN

DOWEL, 7/16 x 1 1/4 in (reductions to rear axle case)

4шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in (reductions to rear axle case)

20шт.

280431

NUT,1/2"-13, G5

(Reductions to rear axle case) 1/2"-13, G5

20шт.

9

K628855

O-RING,3mm Thk x 244mm ID, 75 Duro

'O' RING, 9 5/8 in diameter (reductions to rear axle case)

2шт.

10

K946505

SHAFT

SPUR PINION SHAFT, 11 teeth

2шт.

1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1412G

1шт.

K942014

GEAR

SPUR PINION SHAFT, 10 teeth

2шт.

1410, 1412, 1412G

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

11

K620122

BEARING

TAPER ROLLER BEARING

4шт.

12

K929906

SHIM

0.003 in

1шт.

K929907

SHIM

0.007 in

1шт.

K929908

SHIM

0.009 in

1шт.

K929909

SHIM

0.015 in

1шт.

13

K929891

BUSHING

DISTANCE PIECE

2шт.

14

K942015

BUSHING

SPACER

2шт.

15

K16296

RING

CIRCLIP, 3 3/4 in internal

4шт.

16

K623703

O-RING,3.1mm Thk x 94.45mm ID

'O' RING, 95 mm diameter

2шт.

17

K929889

PLATE

END COVER

2шт.

18

K622324

KEY

11/32 x 1/2 in x 2 1/2 in

4шт.

19

K963648

DRIVE

FINAL DRIVE SHAFT, with ring nut and grubscrew, Includes: Ref. 20 and 21

2шт.

20

K945534

LOCK NUT

RINGNUT, special

1шт.

21

K606408

SCREW

GRUBSCREW, 3/8 UNC x 1/2 in, replaces K606341 & K606304

1шт.

22

K924148

COLLAR

2шт.

23

K623698

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

-237, 70 Duro, 3.359" ID x .139" Thk

2шт.

24

K924150

SHIELD

DUST SHIELD

2шт.

25

K611464

BOLT

3/4 UNF special (wheel fixing)

16шт.

K617177

WHEEL NUT

3/4 UNF special (wheel fixing)

16шт.

26

K620122

BEARING

TAPER ROLLER BEARING

2шт.

27

K946504

WHEEL

SPUR WHEEL, 58 teeth

2шт.

1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410 4WD

1шт.

K952110

WHEEL

SPUR WHEEL, 59 teeth

2шт.

1410, 1412, 1412G

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

28

K621565

RING, SNAP

CIRCLIP, 3/4 in external diameter

4шт.

29

K620121

BEARING

TAPER ROLLER BEARING

2шт.

30

K623457

OIL SEAL

OIL SEAL

2шт.

31

K623432

SEAL,101.6mm ID x 127mm OD x 15.88mm Thk

OIL SEAL

2шт.

32

K945535

HOUSING

oil seal, right-hand

1шт.

K945536

HOUSING

oil seal, left-hand

1шт.

33

K940849

SHIM

0.003 in

1шт.

K940848

SHIM,0.13mm Thk

0.005 in

1шт.

K940847

SHIM,0.38mm Thk

0.015 in

1шт.

K940846

SHIM

0.030 in

1шт.

34

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 UNC x 1 1/2 in (oil seal housings to reduction gear case)

12шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in (oil seal housings to reduction gear case)

12шт.

35

K623539

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

'O' RING, 6 in internal diameter

2шт.

36

219-8

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING, 1/2 ANF

2шт.

37

K929061

COVER

2шт.

38

K929062

GASKET

(cover to reduction gear case)

2шт.

39

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1 1/8 in (Cover to reduction gear case)

24шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (cover to reduction gear case)

24шт.

40

K12362

PLUG

TAPER PLUG, 1 in BSP

2шт.

41

K623825

PLUG

DRAIN PLUG, 1/2 BSP

2шт.

K626793

WASHER

SEALING WASHER, 7/8 in

2шт.

42

K623758

PLUG

TAPER PLUG, 1/4 BSP, replaces K19581 and K14582

2шт.

1410, 1412, 1412G

1шт.

43

K628084

PLUG

PLASTIC PLUG, 5/8 in

6шт.
