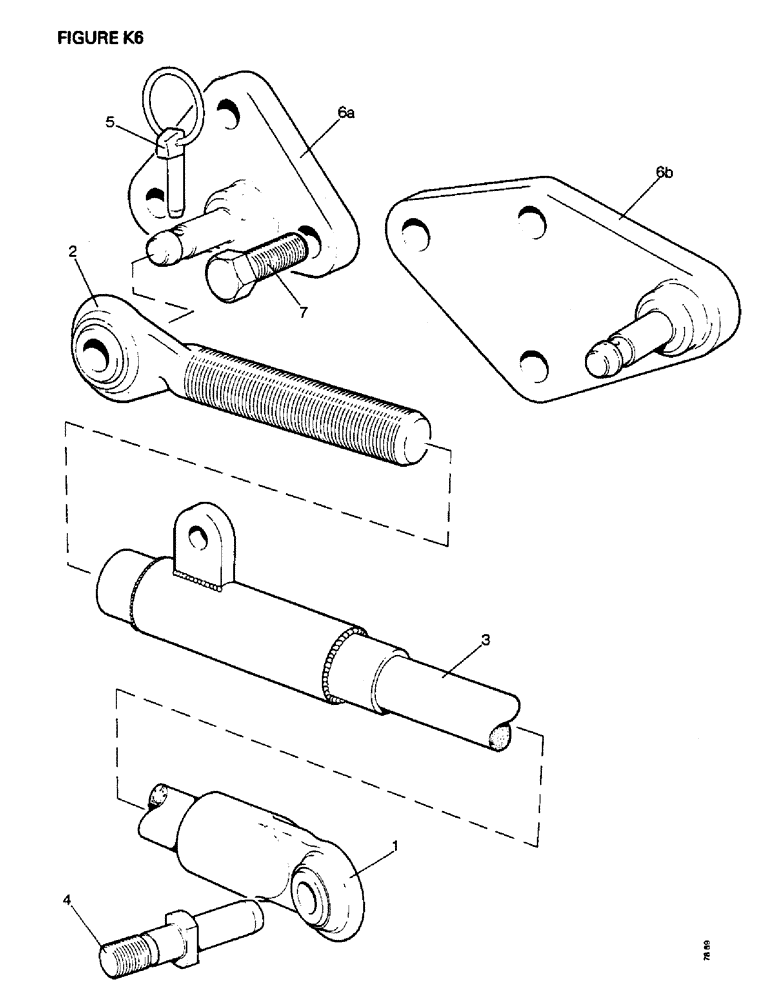

Запчасти Case IH 1410 (K6-1) - DRAWBAR&HITCHES,TELESCOPIC STABILISERS FOR LINKAGE, [A]1412G[B]1410,1410Q,1410SK[C]1410 4WD,1410 4WD Drawbars & Hitches

K932038

SPARE PART

LINKAGE STABILISERS, U1980

1шт.

1412G

1шт.

K914997

STABILIZER

TELESCOPIC STABILISER ASSEMBLY, Includes: Ref. 1A - 7

2шт.

1412G

1шт.

1a

K914948

BALL HOUSING, rear

1шт.

1412G

1шт.

2

K914993

END

BALL HOUSING, front

1шт.

1412G

1шт.

3

K914996

TUBE

1шт.

1412G

1шт.

K964996

LINK

PIN KIT, Includes: Ref.4, pin, spring washer, nut and linch pin and ring

2шт.

1412G

1шт.

4

K948522

PIN

lower link

1шт.

1412G

1шт.

K19486

WASHER, LOCK

SPRING WASHER, 3/4 in

1шт.

1412G

1шт.

280954

NUT,3/4"-10, G5

3/4 UNC

1шт.

1412G

1шт.

K920359

PIN

LINCH PIN AND RING

1шт.

1412G

1шт.

5

K920359

PIN

LINCH PIN AND RING

2шт.

1412G

1шт.

6a

K944843

PLATE

BRACKET, right hand

1шт.

1412G

1шт.

K944841

PLATE

BRACKET, left hand

1шт.

1412G

1шт.

7

K603276

SCREW

SETSCREW, 5/8 UNC x 1 3/4 in

6шт.

1412G

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in

6шт.

1412G

1шт.

K932322

STABILIZER

LINKAGE STABILISERS, U2082

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

K932323

STABILIZER

LINKAGE STABILISERS, U2083

1шт.

1410 4WD, 1410Q 4WD

1шт.

K954646

STABILIZER

TELESCOPIC STABILISER ASSEMBLY

2шт.

1b

K954647

TIE-ROD,8.125" L

BALL HOUSING, rear, with tube

1шт.

2

K914993

END

BALL HOUSING, front

1шт.

K964996

LINK

PIN KIT

2шт.

4

K948522

PIN

lower link

1шт.

K19486

WASHER, LOCK

SPRING WASHER, 3/8 in

1шт.

280954

NUT,3/4"-10, G5

3/4 UNC

1шт.

K920359

PIN

LINCH PIN AND RING

1шт.

5

K920359

PIN

LINCH PIN AND RING

2шт.

6a

K944843

PLATE

BRACKET, right hand

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

K944841

PLATE

BRACKET, left hand

1шт.

1410, 1410Q, 1410SK, 1412, 1412Q, 1412SK

1шт.

1412G

1шт.

6b

K953176

PLATE

BRACKET, right hand

1шт.

1410 4WD, 1410Q 4WD

1шт.

K953175

PLATE

BRACKET, left hand

1шт.

1410 4WD, 1410Q 4WD

1шт.

7

K603276

SCREW

SETSCREW, 5/8 UNC x 1 3/4 in

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in

6шт.
