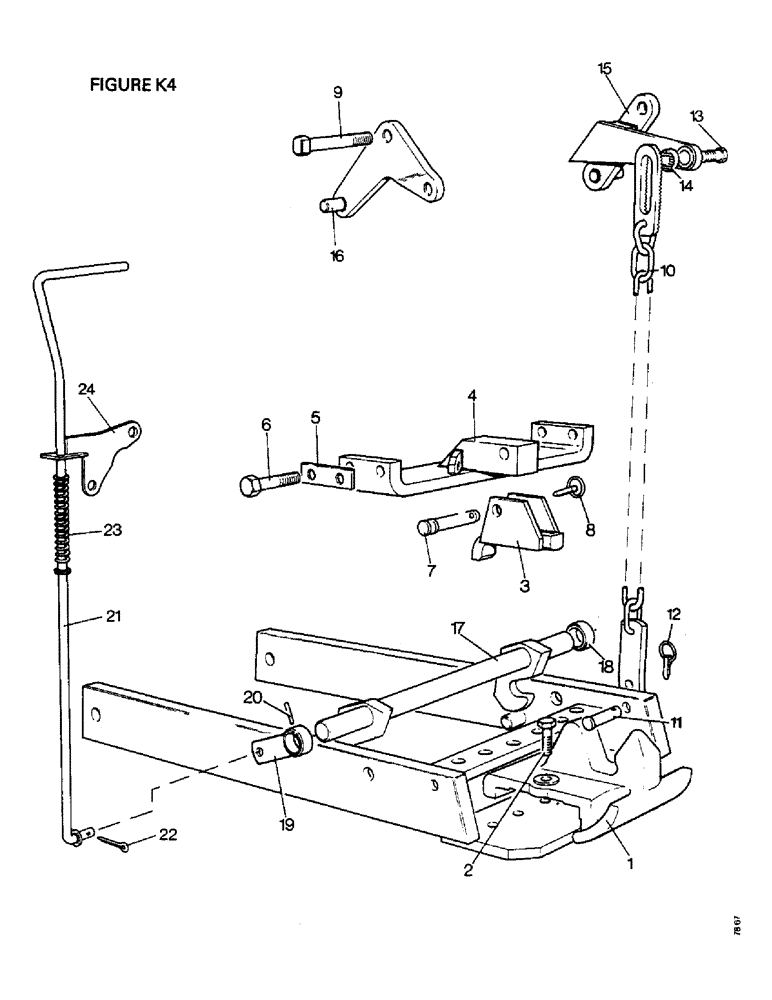

Запчасти Case IH 1410 (K4-1) - DRAWBARS AND HITCHES, PICK UP HITCH, [A] 1410, 1412, 1412G, 1210 4WD Drawbars & Hitches

PICK-UP HITCH, U2003

1шт.

1410, 1412, 1412G

1шт.

PICK-UP HITCH, U2084

1шт.

1410 4WD

1шт.

1

K940590

HOOK

TOWING HOOK

1шт.

2

K610208

BOLT (SPREADER)

BOLT, 5/8 UNC x 2 1/2 in (hook plate to hitch plates)

2шт.

K19485

WASHER

SPRING WASHER, 5/8 in (hook plate to hitch plates)

2шт.

K607006

NUT

5/8 UNC (hook plate to hitch plates)

2шт.

3

K947179

STOP

1шт.

4

K947176

PLATE

BRIDGE PLATE

1шт.

5

K947200

SHIM

1/16 in (bridge plate to hitch plates)

1шт.

K947201

SHIM

1/32 in (bridge plate to hitch plates)

1шт.

6

K601208

BOLT

5/8 UNC x 2 1/2 in (bridge plate to hitch plates)

4шт.

K19485

WASHER

SPRING WASHER, 5/8 in (bridge plate to hitch plates)

4шт.

K607006

NUT

5/8 UNC (bridge plate to hitch plates)

4шт.

7

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN

1шт.

8

K66408

PIN

LINCH PIN AND RING

1шт.

9

K948767

PIN

PIVOT PIN, 7/8 UNC

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

7/8 UNC

2шт.

10a

K947427

CHAIN (AG)

CHAIN AND LINK ASSEMBLY

2шт.

1410, 1412, 1412G

1шт.

10b

K954468

CHAIN (AG)

CHAIN AND LINK ASSEMBLY

2шт.

1410 4WD

1шт.

11

K909503

PIN

2шт.

12

K920359

PIN

LINCH PIN AND RING

2шт.

13

K942612

PIN

PIVOT PIN, 5/8 UNC

2шт.

14

K942611

WASHER

SERRATED WASHER, 5/8 in

2шт.

K19475

WASHER

5/8 in

2шт.

K607331

NUT

NYLOC NUT, 5/8 UNC

2шт.

15

K947423

ARM

LIFT ARM, right hand

1шт.

16

K947422

ARM

LIFT ARM, left hand

1шт.

17

K940094

LATCH

1шт.

18

K940098

COLLAR

1шт.

19

K940097

LEVER

1шт.

20

K690732

SPRING

PIN, 3/16 x 3/4 in

2шт.

21a

K948345

ROD

RELEASE ROD

1шт.

1410, 1412, 1412G

1шт.

21b

K954470

ROD

RELEASE ROD, extended

1шт.

1410 4WD

1шт.

K19472

WASHER

3/8 in

1шт.

22

K19535

PIN

SPLIT PIN, 1/8 x 3/4 in

1шт.

23

K625251

SPRING

RETURN SPRING

1шт.

24

K949585

GUIDE

release rod, replaces K948780

1шт.
