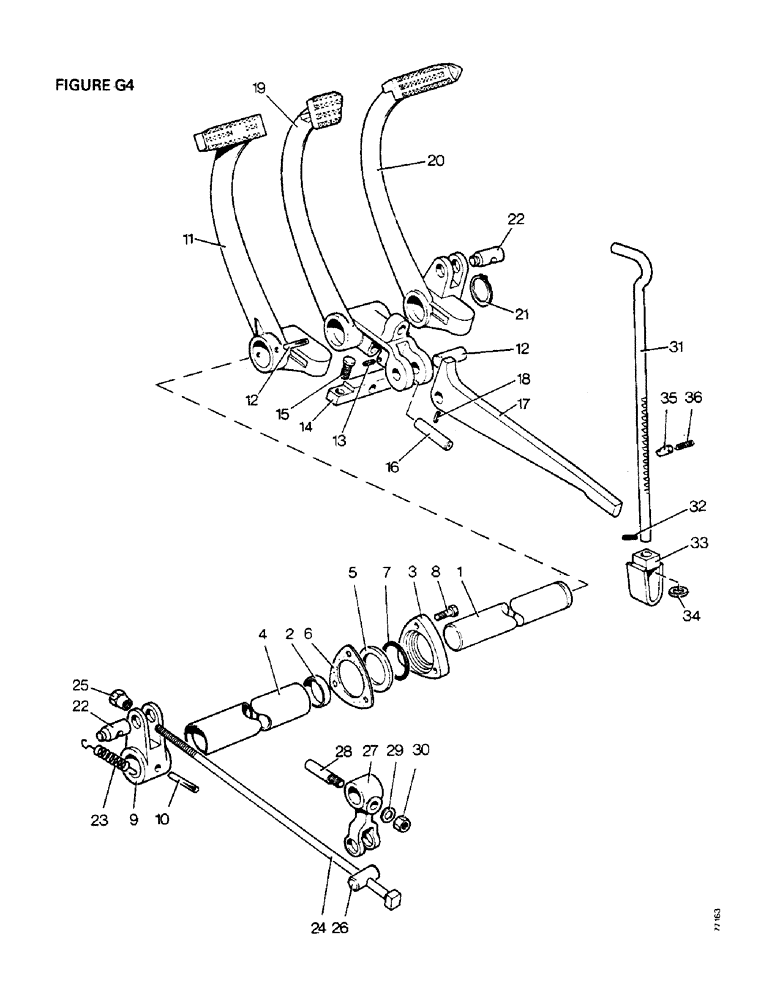

Запчасти Case IH 1410 (G4-1) - BRAKES, BRAKE LINKAGE, [A] 1410, 1412, 1412G, [B] 1410 4WD (5.1) - BRAKES

1

K946943

SHAFT

CROSS SHAFT

1шт.

2

K947343

BUSHING

BEARING CROSS SHAFT TUBE

2шт.

3

K947340

PLATE

END CAP

2шт.

4

K947339

TUBE

CROSS SHAFT

1шт.

5

K947341

SEAL

PLATE

2шт.

6

K916652

GASKET

(caps to main frame)

2шт.

7

K68123

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

'O' RING, 1 5/64 in internal diameter (caps to main frame)

4шт.

8

K602806

BOLT

SETSCREW, 5/16 UNC x 1 1/8 in (caps to main frame)

6шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (caps to main frame)

6шт.

9

K948617

LEVER

cross shaft

1шт.

10

K11737

PIN

3/8 x 2 1/4 in, Serial Range: levers-shaft

2шт.

11

K947191

BRAKE

PEDAL, left-hand

1шт.

12

K946948

PIN

1шт.

13

K623940

PIN

SPRING PIN, 5/32 x 1 in

1шт.

14

K946944

BEAM

COMPENSATOR

1шт.

15

K946945

SCREW

7/16 UNC, special

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT, 7/16 UNC

2шт.

16

K946946

PIN

PIVOT PIN

1шт.

17

K946942

LEVER

OPERATING LEVER, hand brake

1шт.

18

K623940

PIN

SPRING PIN, 5/32 x 1 in

1шт.

19

K946941

BRAKE

PEDAL, master

1шт.

20

K948616

BRAKE

PEDAL, right hand

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

4шт.

1410, 1412, 1412G

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

1410, 4WD

1шт.

21

K11538

RING, SNAP

CIRCLIP, 1 1/2 in external, cross shaft

1шт.

22

K919706

PIN

cross shaft lever

2шт.

23

K624927

SPRING

RETURN SPRING

2шт.

24a

K948047

BOLT

BRAKE ROD, 3/8 UNC x 25 in

2шт.

1410, 1412, 1412G

1шт.

24b

K952657

BRAKE

ROD, right-hand

1шт.

1410, 4WD

1шт.

24c

K952658

BRAKE

ROD, left-hand

1шт.

1410, 4WD

1шт.

25

K607504

NUT

ADJUSTING NUT, 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

K86343

LEVER

CAM LEVER, right-hand

1шт.

1410, 1412, 1412G

1шт.

26

K14744

PIN

lever

2шт.

27a

K30833

LEVER

CAM LEVER, left-hand

1шт.

1410, 1412, 1412G

1шт.

27b

K928589

LEVER

CAM LEVER

2шт.

1410, 4WD

1шт.

28

K609425

LARGE PIN

COTTER PIN, 3/8 UNC

2шт.

29

K19472

WASHER

3/8 in

2шт.

K11522

WASHER

SHAKEPROOF WASHER, 3/8 in

2шт.

30

280136

NUT,3/8"-16, G8

2шт.

31

K929791

LEVER

HAND LEVER

1шт.

32

K623892

PIN

SPRING PIN, 5/16 x 1/2 in

2шт.

33

K949260

FORK

1шт.

34

K626736

WASHER

5/8 in, special

1шт.

K916681

SHIM

1/16 x 5/8 in

1шт.

35

K909588

PAWL

1шт.

36

K14651

SPRING

pawl

1шт.
