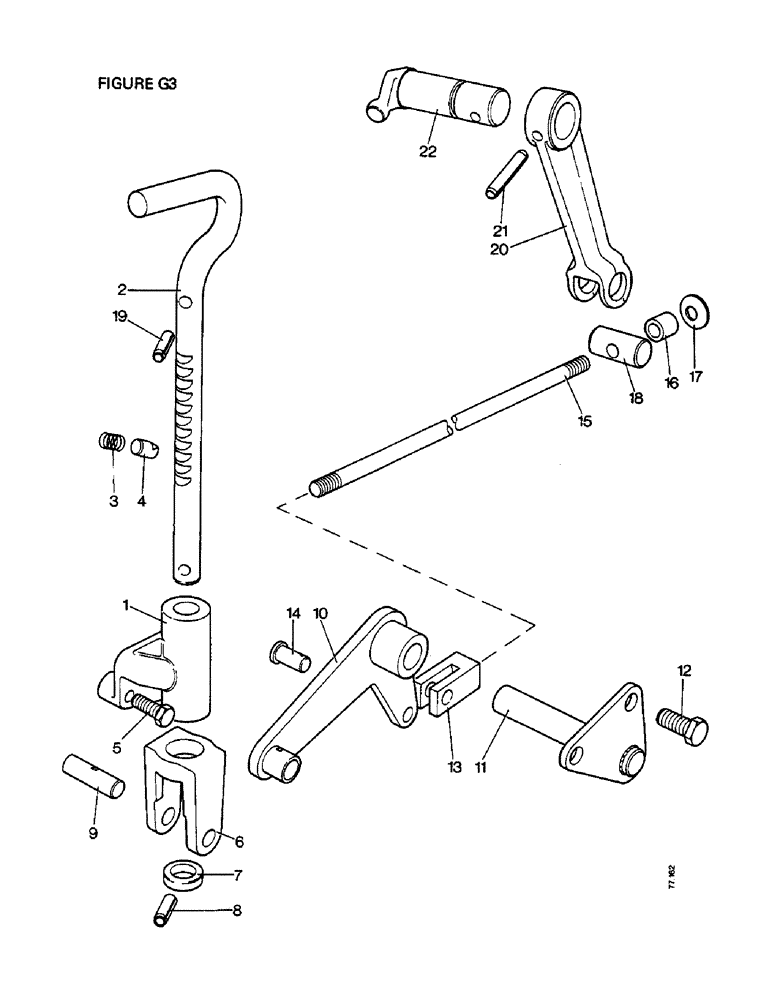

Запчасти Case IH 1410 (G3-1) - BRAKES, HAND BRAKE, TRANSMISSION, 1412G (5.1) - BRAKES

1

K912998

HOUSING

hand lever

1шт.

2

K918962

LEVER

HAND LEVER

1шт.

3

K14651

SPRING

pawl

1шт.

4

K909588

PAWL

1шт.

5

K602806

BOLT

SETSCREW, 5/16 UNC x 1 1/8 in

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

3шт.

6

K912780

FORK

1шт.

7

K65784

WASHER

spherical

1шт.

8

K623895

PIN

SPRING PIN, 5/16 x 2 in

1шт.

9

K904356

PIN

fork

1шт.

K623940

PIN

SPLIT PIN, 5/32 x 1 in

1шт.

10

K953082

BUZZER

BELL CRANK, lever

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

11

K918963

DIPPER

SUPPORT, bell crank

1шт.

12

K603002

BOLT (SPREADER)

SETSCREW, 7/16 UNC x 7/8 in

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

1шт.

280717

NUT,7/16"-14, G5

1шт.

13

K916677

FORK

END

1шт.

14

K14227

PIN

1шт.

K19528

PIN

SPLIT PIN, 3/32 x 3/4 in

1шт.

15

K918967

BRAKE

ROD

1шт.

16

K627045

BUSHING

SPACER ROD

1шт.

280136

NUT,3/8"-16, G8

1шт.

17

K626723

BELLEVILLE WASHER

BELLEVILLE WASHER, 3/8 in

6шт.

232-1416

LOCK NUT,3/8"-16, GC

NYLOC NUT, (a) 3 UNC

1шт.

18

K14744

PIN

3/4 x 1 1/2 in

1шт.

19

K623892

PIN

SPRING PIN, 5/16 x 1 1/2 in

1шт.

20

K953083

ARM

OPERATING ARM

1шт.

21

K690862

PIN

5/16 x 1 7/8 in

1шт.

22

K918716

SHAFT

OPERATING SHAFT

1шт.

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' RING, 3/4 in internal diameter

1шт.
