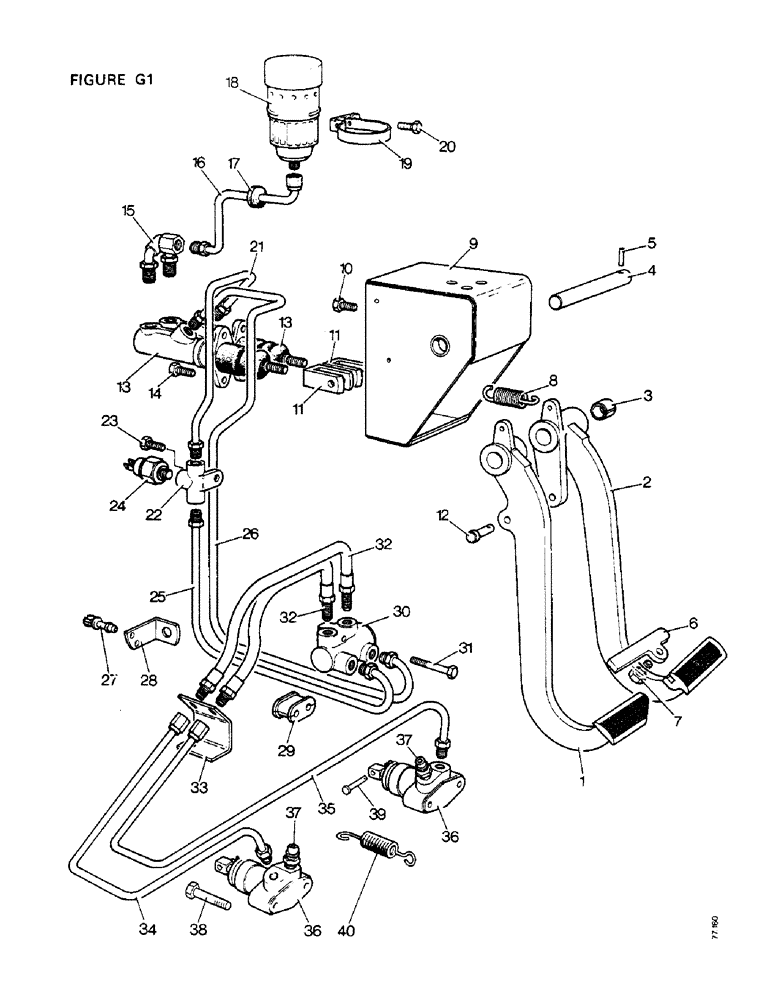

Запчасти Case IH 1410 (G1-1) - BRAKES, HYDRAULIC BRAKING SYSTEM, [A] 1410Q, 1412Q, [B] 1410Q 4WD [C] 1410SK, 1412SK (5.1) - BRAKES

1

K941535

BRAKE

PEDAL, left-hand, Replaces K949254

1шт.

2

K941536

BRAKE

PEDAL, right-hand, Replaces K949255, Includes: Ref. 3

1шт.

3

K628754

BUSHING

BUSH, brake pedals

2шт.

4

K950568

PIN

PIVOT PIN, pedals

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

6

K948974

LATCH

LOCKING LATCH, brake pedals

1шт.

7

K600500

SCREW

BOLT, 3/8 UNC, special

1шт.

K626700

WASHER

SPRING WASHER, 3/8 in

1шт.

8

K624947

SPRING

RETURN SPRING

2шт.

9

K949253

SUPPORT

BRACKET, pedals

1шт.

10a

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (bracket to cab)

2шт.

1410Q

1шт.

1412Q

1шт.

10b

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in, Serial Range: (bracket-cab)

2шт.

1410SK, 1412SK

1шт.

K626682

WASHER

5/16 in, Serial Range: (bracket-cab)

1шт.

1410Q, 4WD

1шт.

1410Q, 1412Q

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (bracket-cab)

2шт.

11

K622205

FORK

END, 5/16 UNC

2шт.

425-115

NUT,5/16"-24, G5

5/16 UNC

2шт.

12

K625954

PIN

CLEVIS PIN, 5/16 x 1 3/16 in

2шт.

K623605

PIN

SPLIT PIN, 1/16 x 1/2 in

2шт.

13

K950544

CYLINDER,36.32mm Stroke

MASTER CYLINDER, Girling 73067017

2шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1 1/8 in (cylinders to cab)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (cylinders-cab)

4шт.

15

K951958

PIPE

master cylinder inlet

1шт.

16a

K951369

PIPE

reservoir to master cylinder

1шт.

1410Q, 4WD

1шт.

1410Q, 1412Q

1шт.

16b

K954504

PIPE

reservoir to master cylinder

1шт.

1410SK, 1412SK

1шт.

17a

K627748

GROMMET

7/8 in split (alternatives)

1шт.

17b

K627736

GROMMET

5/8 in split (alternatives)

1шт.

1410Q, 4WD

1шт.

1410Q, 1412Q

1шт.

18

K951526

RESERVOIR

1шт.

K964488

CAP

FILLER CAP

1шт.

K964813

COVER

blue

1шт.

19

K624873

CLIP

1шт.

20

K614946

SCREW,Pan, #10 - 32 x 3/4"

SETSCREW, No. 10 UNF x 3/4 in

1шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

1шт.

K617080

NUT

No. 10 UNF

1шт.

21

K951959

BRAKE LINE

PIPE, master, Serial Range: cylinder-tee-piece

1шт.

22

K652091

FITTING

TEE-PIECE

1шт.

23

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

24

K951976

LIGHT SWITCH

SWITCH, stop lamps, Lucas 30874A

1шт.

25a

K954390

PIPE

tee-piece to balance valve

1шт.

1410Q, 4WD

1шт.

1410Q, 1412Q

1шт.

25b

K954501

BRAKE

PIPE, tee-piece to balance valve

1шт.

1410SK, 1412SK

1шт.

26a

K954391

BRAKE

PIPE, master cylinder to balance valve

1шт.

1410Q, 4WD

1шт.

1410Q, 1412Q

1шт.

26b

K954502

BRAKE

PIPE, master cylinder to balance valve

1шт.

1410SK, 1412SK

1шт.

27

K625008

CLIP

brake pipes

2шт.

28

K954407

BRACKET

clip

1шт.

1410Q, 4WD

1шт.

1410Q, 1412Q

1шт.

29

K952209

PIPE

PACKING BLOCK, brake pipes

2шт.

30

K950547

VALVE

BALANCE VALVE, Girling 73067018

1шт.

31

K600152

BOLT

1/4 UNC x 2 in (valve to cab floor)

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in (valve to cab floor)

1шт.

32

K952451

PIPE

FLEXIBLE PIPE, 12mm x 22 in

2шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in

2шт.

K652100

LOCK NUT

LOCKNUT, 12mm

2шт.

33

K951919

BRACKET

brake pipes

1шт.

K602903

SCREW

SETSCREW, 3/8 UNC x 7/8 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

34a

K951920

PIPE

left-hand slave cylinder

1шт.

34b

K952125

PIPE

left-hand slave cylinder

1шт.

1410Q, 4WD

1шт.

35a

K951921

PIPE

right-hand slave cylinder

1шт.

35b

K952126

PIPE

right-hand slave cylinder

1шт.

1410Q, 4WD

1шт.

36

K950549

CYLINDER

SLAVE CYLINDER, Girling 73067021

2шт.

37

K964534

SCREW,M12 x 1

BLEED SCREW, metric, slave cylinder

2шт.

K964572

SEAL KIT

SEAL KIT, master cylinder (mineral oil seals)

2шт.

K964574

KIT

SEAL KIT, slave cylinder (mineral oil seals)

2шт.

38

K602855

BOLT

5/16 UNC x 1 3/4 in (cylinders to cab mounting brackets)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (cylinders to cab mounting brackets)

4шт.

39

K625958

CLEVIS

PIN, 5/16 x 1 9/16 in (slave cylinders to operating lever)

2шт.

K626682

WASHER

5/16 in (slave cylinders to operating lever)

2шт.

K11934

PIN

SPLIT PIN, 1/16 x 1/2 in (slave cylinders to operating lever)

2шт.

40a

K624950

SPRING

RETURN SPRING, slave cylinders

2шт.

40b

K624958

SPRING

RETURN SPRING, slave cylinders

2шт.

1410Q, 4WD

1шт.
