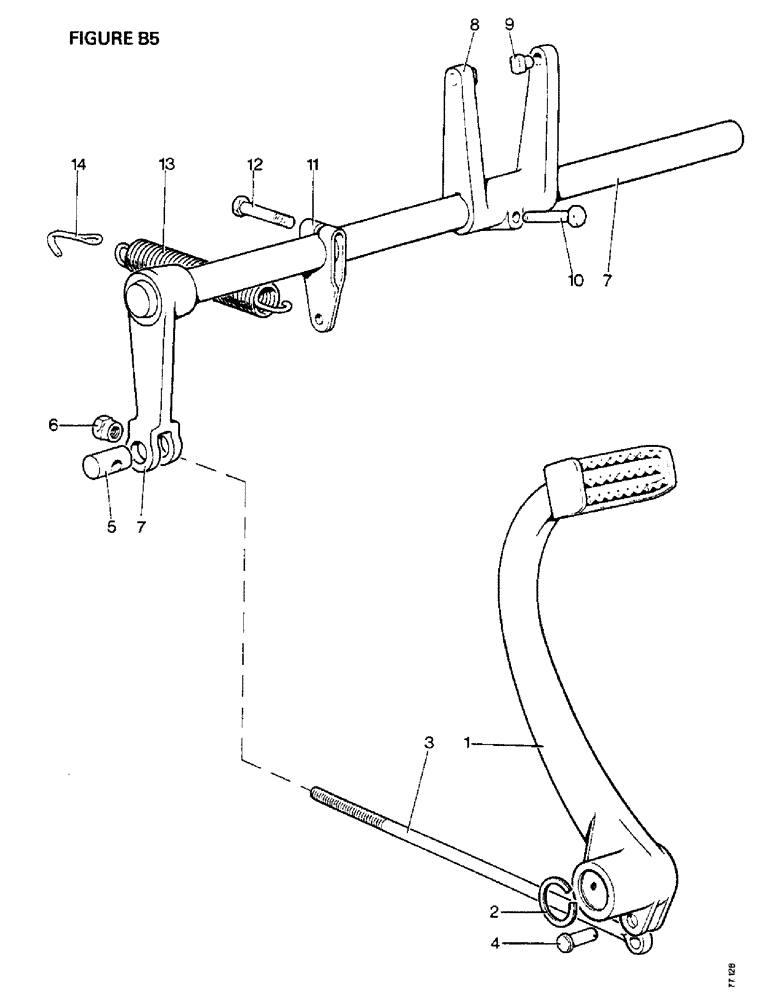

Запчасти Case IH 1410 (B5-1) - CLUTCH, CLUTCH RELEASE MECHANISM, TRANSMISSION, 1410, 1412, 1412G (03.1) - CLUTCH

1

K947338

CLUTCH

PEDAL

1шт.

2

K621492

RING, SNAP

CIRCLIP, 1 3/4 in

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

3

K916661

ROD

pedal to cross shaft

1шт.

4

K69984

SPLIT PIN/SAFETY PIN

CLEVIS PIN, 3/8 x 1 5/16 in

1шт.

K19528

PIN

SPLIT PIN, 3/32 x 3/4 in

1шт.

5

K14744

PIN

1шт.

6

K607504

NUT

ADJUSTING NUT, 3/8 UNC

1шт.

280136

NUT,3/8"-16, G8

1шт.

7

K915993

ARM

AND CROSS SHAFT

1шт.

K19612

KEY

Woodruff No. 608

2шт.

8

K915831

TRANSMISSION

FORK

1шт.

9

K84748

TRUNNION

PIN, fork

2шт.

10

K600406

BOLT

3/8 UNC x 1 3/4 in (fork to cross shaft)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (fork to cross shaft)

1шт.

280136

NUT,3/8"-16, G8

(Fork to cross shaft) 3/8"-16, G8

1шт.

11

K916477

LEVER

RETURN SPRING

1шт.

12

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in (lever to cross shaft)

1шт.

K19472

WASHER

3/8 in (lever to cross shaft)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (lever to cross shaft)

1шт.

280136

NUT,3/8"-16, G8

(Lever to cross shaft) 3/8"-16, G8

1шт.

13

K624909

SPRING

1шт.

14

K916478

SPRING

HOOK, spring

1шт.
