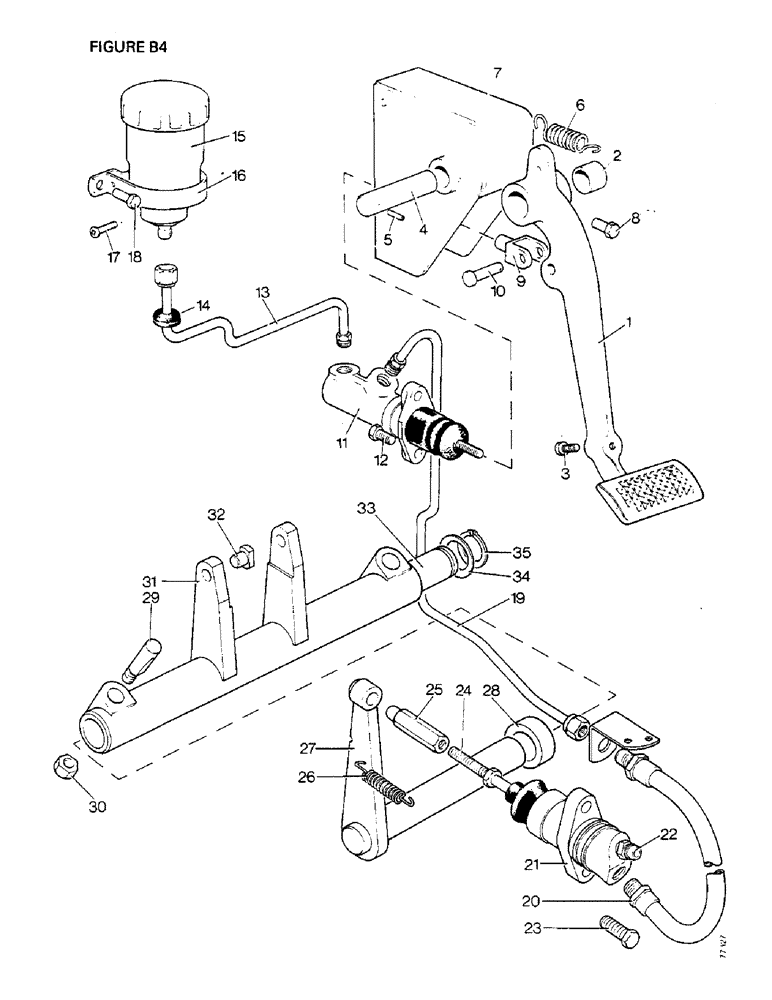

Запчасти Case IH 1410 (B4-1) - CLUTCH, CLUTCH RELEASE MECHANISM, TRANSMISSION, [A] 1410Q, 1412Q [B] 1410, 1412SK (03.1) - CLUTCH

1

K954318

PEDAL

CLUTCH PEDAL, Includes: Ref. 2

1шт.

2

K628754

BUSHING

BUSH

2шт.

3

K609206

SCREW

1/4 UNC x 1 in, pedal stop

1шт.

4

K950569

PIN

PIVOT PIN, clutch pedal

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, , pivot pin to bracket 1/8" x 1 1/8", Type A

1шт.

6

K624947

SPRING

pedal return

1шт.

7a

K954831

SUPPORT

BRACKET, clutch pedal (eff. S/N Note A)

1шт.

1410Q, 1412Q-11203913 1410SK, 1412SK-11203145

1шт.

7b

K949098

SUPPORT

BRACKET, clutch pedal (up to S/N Note A)

1шт.

1410Q, 1412Q-11203913 1410SK, 1412SK-11203145

1шт.

8

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in, Serial Range: (bracket-cab)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (bracket-cab)

2шт.

9

K622205

FORK

END, 5/16 UNF

1шт.

10

K625954

PIN

CLEVIS PIN, 5/16 x 1 3/16 in

1шт.

K11934

PIN

SPLIT PIN, 1/16 x 1/2 in

1шт.

425-115

NUT,5/16"-24, G5

LOCKNUT, 5/16 UNF

1шт.

11

K950544

CYLINDER,36.32mm Stroke

MASTER CYLINDER, Girling 73067017

1шт.

12

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1 1/8 in (cylinder to cab)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (cylinder-cab)

2шт.

13

K951343

PIPE

reservoir to master cylinder

1шт.

1410Q, 1412Q

1шт.

13a

K954504

PIPE

reservoir to master cylinder, replaces K951343

1шт.

1410SK, 1412SK

1шт.

14

K627748

GROMMET

7/8 in, split, replaces K627736

1шт.

15

K951526

RESERVOIR

1шт.

K964488

CAP

FILLER CAP

1шт.

K964813

COVER

blue

1шт.

16

K624873

CLIP

1шт.

17

K614946

SCREW,Pan, #10 - 32 x 3/4"

SETSCREW, No. 10 UNF x 3/4 in, Serial Range: (clip-reservoir)

1шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in, Serial Range: (clip-reservoir)

1шт.

K617080

NUT

No. 10 UNF, Serial Range: (clip-reservoir)

1шт.

18

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in (clip to cab)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (clip-cab)

1шт.

19

K954405

PIPE

master cylinder to bracket, replaces K954066

1шт.

1410Q, 1412Q

1шт.

19a

K954503

PIPE

master cylinder to bracket, replaces K954066

1шт.

1410SK, 1412SK

1шт.

K954407

BRACKET

pipe clip

1шт.

1410Q, 1412Q

1шт.

K625008

CLIP

PIPE CLIP

1шт.

1410Q, 1412Q

1шт.

K621728

PIPE

CLIP

1шт.

1410SK, 1412SK

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

1/4 UNC x 5/8 in

1шт.

1410SK, 1412SK

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

1410SK, 1412SK

1шт.

K607043

NUT

1/4 UNC

1шт.

1410SK, 1412SK

1шт.

20

K952511

PIPE

FLEXIBLE PIPE, 12 x 410 mm, Girling 73046004

1шт.

K625100

LOCKNUT, 12 mm

1шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in

2шт.

21

K950550

CYLINDER

SLAVE CYLINDER, Girling 73070023

1шт.

22

K964534

SCREW,M12 x 1

BLEED SCREW, metric, slave cylinder

1шт.

23

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1 1/8 in (cylinder to bracket)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (cylinder-bracket)

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (cylinder to bracket)

2шт.

24

K949802

ROD

PUSH ROD, slave cylinder

1шт.

K617051

NUT

LOCKNUT, 3/8 UNF

1шт.

K616891

WASHER

LOCKNUT, 5/16 UNF

1шт.

25

K949803

ADJUSTER

5/16 UNF

1шт.

26

K624949

SPRING

RETURN SPRING

1шт.

27

K950655

SHAFT

STUB CROSS SHAFT AND LEVER, left-hand

1шт.

28

K627165

COLLAR

SPACER, stub cross shaft

1шт.

29

K609425

LARGE PIN

COTTER PIN, 3/8 UNC (clutch fork to stub cross shafts)

2шт.

K19472

WASHER

3/8 in (clutch fork to stub cross shafts)

2шт.

K11522

WASHER

SHAKEPROOF WASHER, 3/8 in (clutch fork to stub cross shafts)

2шт.

30

280136

NUT,3/8"-16, G8

(Clutch fork to stub cross shafts) 3/8"-16, G8

2шт.

31

K950509

CLUTCH

FORK

1шт.

32

K84748

TRUNNION

PIN, fork

2шт.

33

K950583

SHAFT

STUB CROSS SHAFT, right-hand

1шт.

34

K626749

WASHER

BELLEVILLE WASHER

1шт.

35

K11128

CIRCLIP

1 in external

1шт.

K964572

SEAL KIT

SEAL KIT, master cylinder (mineral oil seals)

1шт.

K964574

KIT

SEAL KIT, slave cylinder (mineral oil seals)

1шт.
