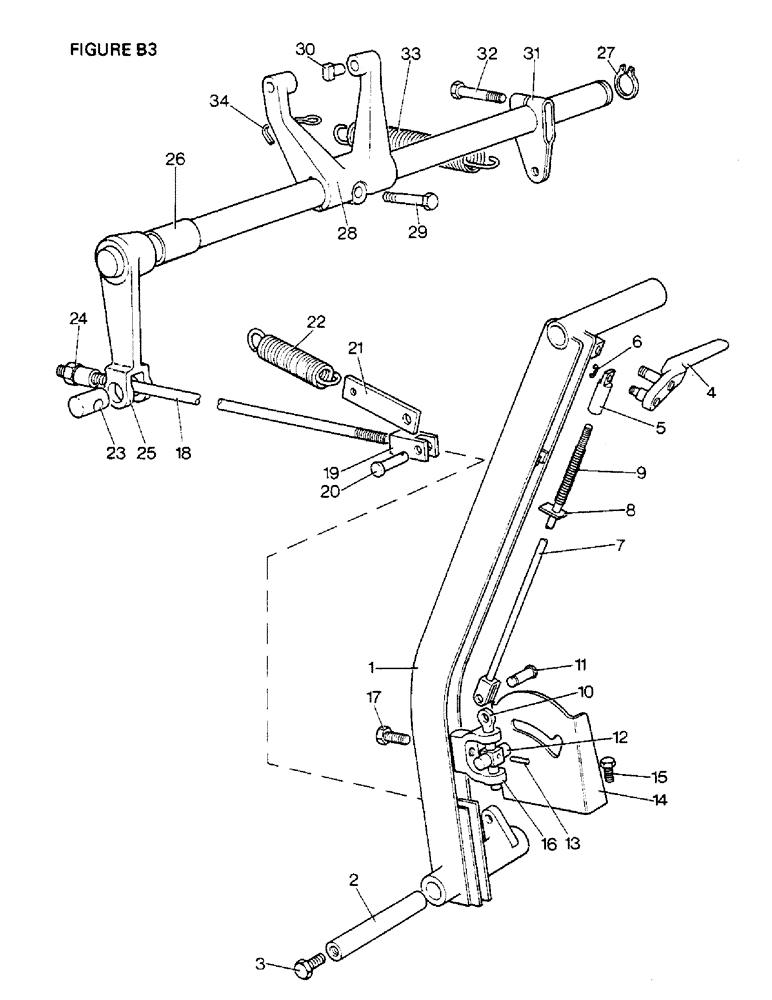

Запчасти Case IH 1410 (B3-1) - CLUTCH, HAND LEVER FOR PTO CLUTCH, 1410, 1412, 1412G (03.1) - CLUTCH

1

K952638

LEVER

HAND LEVER, replaces K928615

1шт.

K628081

PLUG

PLASTIC PLUG, hand lever

1шт.

2

K600475

BOLT

3/8 UNC x 1 1/2 in, Serial Range: (shaft-bracket)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (shaft-bracket)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K19470

WASHER

1/4 in

1шт.

4

K919403

LATCH

LEVER, latch

1шт.

5

K919395

ROD

YOKE

1шт.

6

A22356

CIRCLIP,#X21, .185" Dia, E-Type

'E' CLIP, 7/32 in (Replaces K612592)

3шт.

7

K928613

ROD

latch release

1шт.

8

K918897

SHIM

STOP PLATE

1шт.

9

K625207

SPRING

1шт.

10

K918899

PLUNGER

1шт.

11

K919396

CLEVIS

PIN

1шт.

12

K918901

LATCH

1шт.

13

K623931

SPLIT PIN/SAFETY PIN

SPRING PIN, 1/8 x 11/16 in

1шт.

K919401

LEVER

BRACKET, left-hand

1шт.

14

K919402

LEVER

BRACKET, right-hand

1шт.

15

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SETSCREW, 5/16 UNC x 3/4 in (brackets to platform) (Replaces K602803)

4шт.

K19471

WASHER

5/16 in, Serial Range: (brackets-platform)

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (brackets-platform)

4шт.

16

K918898

BRACKET

ANCHOR BRACKET

1шт.

17

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in (anchor bracket to lever)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (anchor, Serial Range: bracket-lever)

1шт.

18

K918906

ROD

lever to cross shaft

1шт.

280136

NUT,3/8"-16, G8

1шт.

19

K916677

FORK

END

1шт.

20

K14227

PIN

CLEVIS PIN, 3/8 x 1 1/16 in

1шт.

20a

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Replaces K19528)

1шт.

21

K924167

SPRING

ANCHOR PLATE

1шт.

22

K624935

SPRING

1шт.

23

K14744

PIN

1шт.

24

K607504

NUT

ADJUSTING NUT, 3/8 UNC

1шт.

280136

NUT,3/8"-16, G8

1шт.

25

K915996

ARM

AND CROSS SHAFT

1шт.

26

K627170

BUSHING

SPACER

1шт.

27

K11128

CIRCLIP

1 in external

1шт.

28

K928940

FORK

1шт.

K19612

KEY

Woodruff No. 608

2шт.

29

K600406

BOLT

3/8 UNC x 1 3/4 in (fork to cross shaft)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (fork to cross shaft)

1шт.

280136

NUT,3/8"-16, G8

(Fork to cross shaft) 3/8"-16, G8

1шт.

30

K84748

TRUNNION

PIN, fork

2шт.

31

K916477

LEVER

return spring

1шт.

32

K600408

BOLT,3/8" x 2"

3/8 UNC x 2 in

1шт.

K19472

WASHER

3/8 in

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

280136

NUT,3/8"-16, G8

1шт.

33

K624909

SPRING

cross shaft return

1шт.

34

K916478

SPRING

HOOK, spring

1шт.
