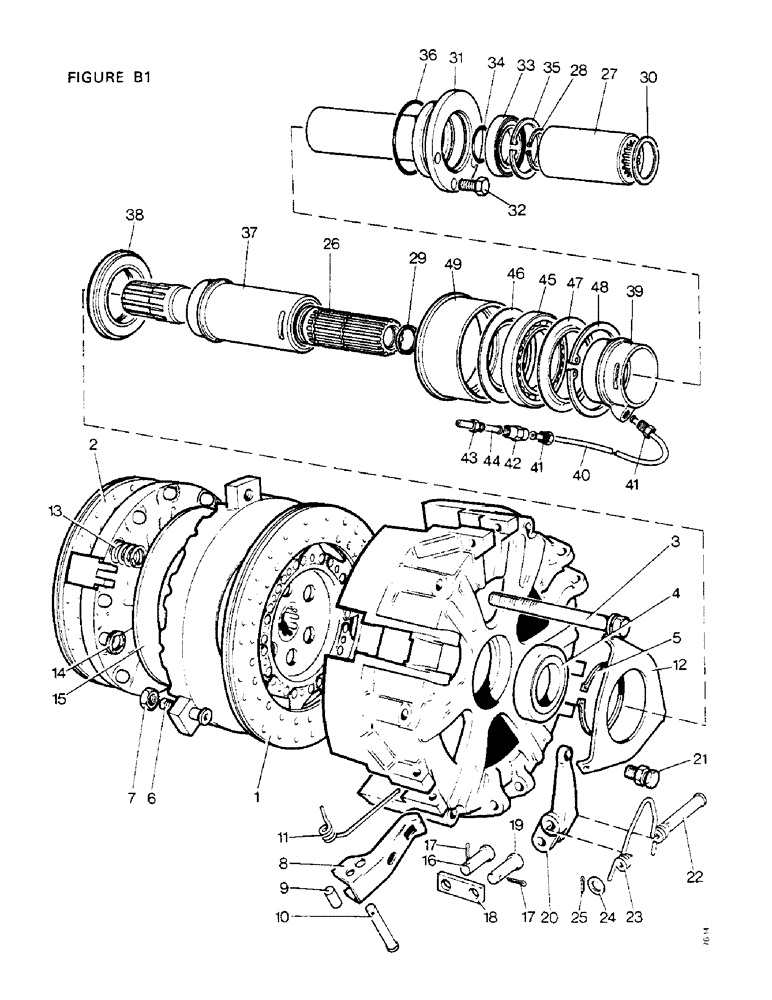

Запчасти Case IH 1410 (B1-1) - CLUTCH, 12" DUAL CLUTCH LAYCOCK (03.1) - CLUTCH

K954992

CLUTCH ASSEMBLY

Laycock 12 in, replaces K951600, Includes: Ref. 1A - 26B

1шт.

1412, 1412G, 1412Q, 1412SK

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

K956051

CLUTCH ASSEMBLY

Laycock 12 in, replaces K956050, Includes: Ref. 1A - 26B

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

1a

K950877

PLATE

DRIVEN PLATE, with 12 in Thermoid facings, transmission

1шт.

1412, 1412G, 1412Q, 1412SK

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

K963632

FACING

S, 12 in Thermoid (2) and rivets (44)

1шт.

1412, 1412G, 1412Q, 1412SK

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1b

K956052

CLUTCH & DISC ASSY

DRIVEN PLATE, 12 in, sintered iron, transmission

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

2

K947089

CLUTCH & DISC ASSY

DRIVEN PLATE, 12 in, F30C facings, PTO

1шт.

K963633

FACING

S, 12 in, F30C (2), and rivets (18)

1шт.

3

K600421

BOLT

3/8 UNC x 4 1/4 in, Serial Range: (clutch-flywheel)

6шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: (clutch-flywheel)

6шт.

4

K947051

BEARING

1шт.

5

K89326

RING, SNAP

CIRCLIP (Replaces K947052)

1шт.

6

K964946

BOLT

ADJUSTING BOLTS, transmission, set of 3

1шт.

7

K947042

NUT

3шт.

8

K964945

LEVER

RELEASE LEVER, transmission, set of 3

1шт.

9

K947046

ROLLER

3шт.

10

K947044

PIN

PIVOT PIN

3шт.

K947036

WASHER

plain

3шт.

K947035

COTTER PIN

SPLIT PIN

3шт.

11

K947049

SPRING

ANTI-RATTLE SPRING

3шт.

12

K947050

RING

RELEASE LEVER PLATE

1шт.

13

K951917

SPRING

THRUST SPRING, pink, replaces K947040 yellow

12шт.

14

K947039

DISC

FIBRE WASHER

24шт.

15

K952509

BELLEVILLE SPRING

1шт.

16

K947041

PIN

PIVOT-PIN, lower

3шт.

17

K947038

PIN

SPLIT PIN

3шт.

18

K964947

DRAG LINK

LINK LEVER TO PTO PRESSURE PLATE, set of 3

1шт.

19

K947060

PIN

LINK PIN, upper

3шт.

17

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces K947038) 3/32" x 1/2"

3шт.

20

K964948

LEVER

RELEASE LEVER, PTO, set of 3

1шт.

21

K963626

LOCK NUT,M10 x 1.25 x 30mm, Cl 10.9

SCREW AND NUT, 3/8 UNF x 1 in special, release lever height

3шт.

22

K947058

PIVOT PIN

PIVOT-PIN, PTO

3шт.

23

K947037

SPRING

ANTI-RATTLE SPRING

3шт.

24

K947036

WASHER

plain

6шт.

25

K947035

COTTER PIN

SPLIT-PIN

3шт.

26a

K928517

CLUTCH

DRIVESHAFT

1шт.

1412, 1412G, 1412Q, 1412SK

1шт.

26b

K928941

CLUTCH

DRIVESHAFT

1шт.

27

K945961

COUPLING, BREAK AWAY

MUFF COUPLING, 12 speed

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

28

K12922

RING, SNAP

CIRCLIP, 1 3/4 in

2шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

29a

K623634

SEAL

ING RING, 1 1/8 in internal diameter

1шт.

1410

1шт.

1410Q 4WD

1шт.

29b

K628123

RING

NU-LIP SEAL, replaces K623634

1шт.

1410Q, 1410SK

1шт.

1410Q 4WD

1шт.

30

K902106

SHIM,.032" Thk

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

31

K947903

BRACKET

SUPPORT SNOUT, thrust bearing carrier

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

32

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in

3шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

3шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

33

K620190

BALL BEARING

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

34

K628864

O-RING

'O' RING, 1 1/2 in internal diameter

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

35

K621430

CIRCLIP

75 mm internal

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

36

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in internal diameter

1шт.

1410Q, 1410SK

1шт.

1410

1шт.

1410 4WD

1шт.

1410Q 4WD

1шт.

37

K928937

BEARING CARRIER,54.04mm ID x 76.2mm OD x 107.95mm L

THRUST BEARING CARRIER

1шт.

38

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

1шт.

39

K928939

CARRIER

HOUSING, release bearing

1шт.

40

K928740

TUBE

PLASTIC TUBE, 1/8 x 14 1/2 in (release bearing lubrication)

1шт.

41

K617956

NUT

UNION NUT, 3/8 UNF (release bearing lubrication)

2шт.

K622407

FERRULE

OLIVE, 1/4 in (release bearing lubrication)

1шт.

42

K626045

FITTING

UNION, 3/8 UNF (release bearing lubrication)

1шт.

K19588

FERRULE

OLIVE, 3/16 in (release bearing lubrication)

1шт.

43

K617956

NUT

UNION NUT, 3/8 UNF (release bearing lubrication)

1шт.

44

K926411

TUBE,0.187" OD x 2.625" L

PIPE, 3/16 x 2 7/8 in, main frame (release bearing lubrication)

1шт.

45

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

1шт.

46

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD, front

1шт.

47

K928742

RETAINER

SHIELD, rear

1шт.

48

K12777

RING, SNAP

CIRCLIP, 4 1/2 in internal diameter

1шт.

49

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

THRUST PLATE, PTO

1шт.
