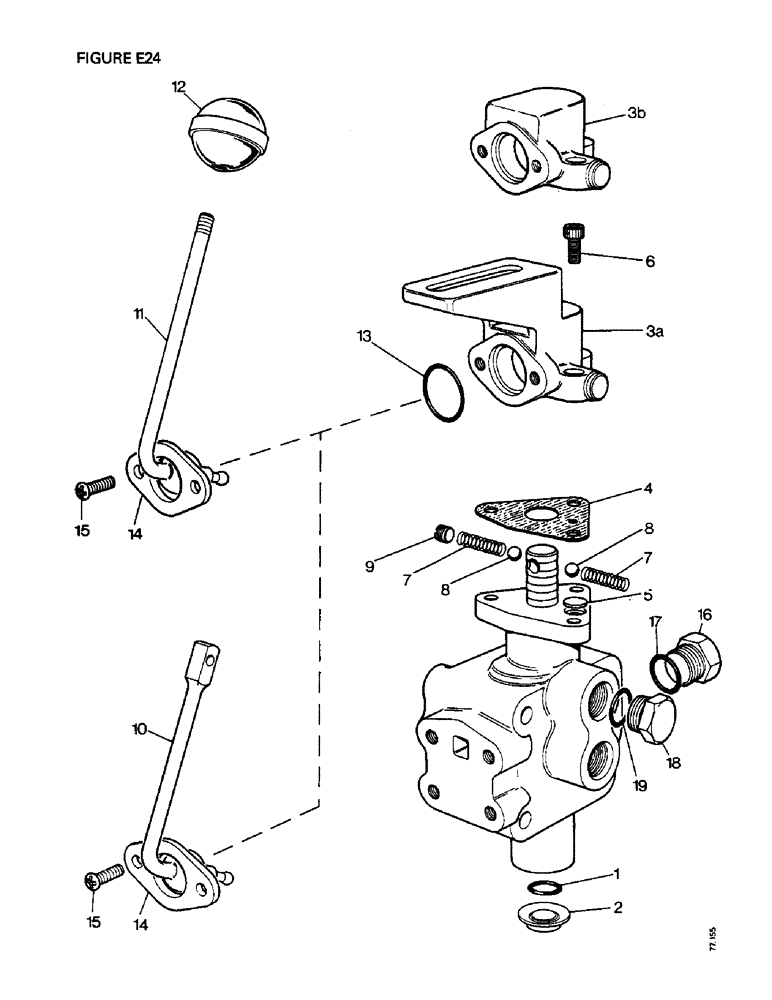

Запчасти Case IH 1410 (E24-1) - SELECTAMATIC HYDRAULIC SYSTEM, THREE WAY SELECTOR VALVE, [A] 1410Q,1410SK,1412Q,1412SK [B] 1410,1412 (07) - HYDRAULIC SYSTEM

K951681

SELECTOR

THREE-WAY SELECTOR VALVE, complete, Includes: Ref. 1 - 17

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K948000

SELECTOR

THREE-WAY SELECTOR VALVE, complete, Includes: Ref. 1 - 17

1шт.

1410, 1412

1шт.

1

K625408

O-RING

'O' RING, 7/16 in internal diameter, Replaces K24779

2шт.

2

K919826

BREATHER

1шт.

3a

K919611

COVER

1шт.

1410, 1412

1шт.

3b

K929862

COVER

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

4

K944527

GASKET,0.15mm Thk

1шт.

5

K915393

FOAM

BREATHER PAD

1шт.

6

K606501

SCREW

1/4 UNC x 5/8 in

3шт.

7

K625208

SPRING

2шт.

8

K17063

BALL

STEEL BALL, 1/4 in

2шт.

9

K606020

SCREW

GRUBSCREW, 5/16 UNC x 1/4 in

1шт.

10

K951667

LEVER

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

11

K919612

LEVER

1шт.

410, 1412

1шт.

12

K902270

KNOB

1шт.

1410, 1412

1шт.

13

K16351

O-RING,3.53mm Thk x 24.99mm ID

'O' RING, 1 in internal diameter

1шт.

14

K919613

SHIM

PLATE

1шт.

15

K614924

SCREW

No. 10 UNF x 1/2 in

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

2шт.

16

K948415

PLUG

3/4 UNF special

1шт.

17

K623589

O-RING

'O' RING, 5/8 in internal diameter

1шт.

18

K920826

O-RING

PLUG, 3/4 UNF

1шт.

19

K623589

O-RING

'O' RING, 5/8 in internal diameter

1шт.
