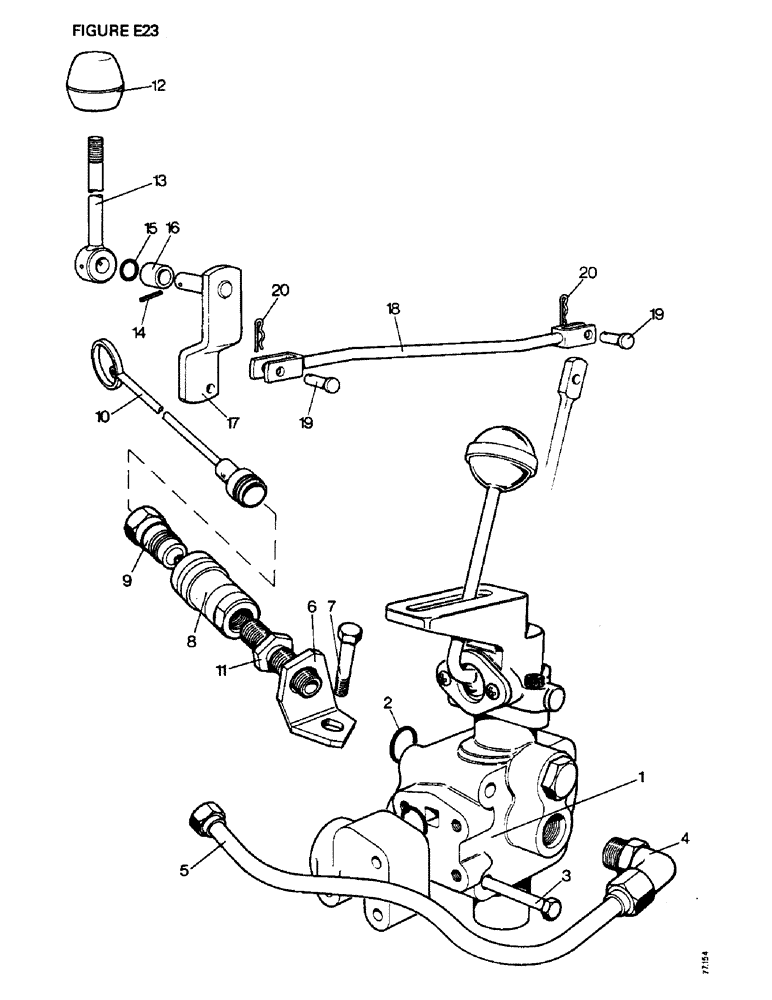

Запчасти Case IH 1410 (E23-1) - SELECTAMATIC HYD.SYSTEM, THREE WAY SELECTOR VALVE, UNITS [A] 1410Q,1410SK,1412Q,1412SK [B] 1410,1412 (07) - HYDRAULIC SYSTEM

K931940

SPARE PART

HAND CONTROLS, three-way selector valve, U1932

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K931267

NO LONGER SERVICED

THREE-WAY SELECTOR VALVE, quick-release coupling, U1742

1шт.

1410, 1412

1шт.

1a

K951681

SELECTOR

VALVE ASSEMBLY, see Figure E24

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

1b

K948000

SELECTOR

VALVE ASSEMBLY, see Figure E24

1шт.

1410, 1412

1шт.

2

K24566

'O' RING, 3/4 in internal diameter

1шт.

3

K600416

BOLT

3/8 UNC x 3 in

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

4шт.

4

K622114

FITTING

ELBOW, 3/4 UNF x 90 degrees

1шт.

5

K951972

PIPE

valve to coupling, replaces K947997

1шт.

6

K921160

BRACKET

1шт.

7

K600816

BOLT

1/2 UNC x 3 1/2 in

1шт.

K626686

WASHER

1/2 in

1шт.

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING, complete, Aeroquip B5600/8/10, Includes: Ref. 8 and 9

1шт.

8

K929247

BREAKER POINTS

QUICK-RELEASE COUPLING, tractor half

1шт.

9

K921982

BREAKER POINTS

QUICK-RELEASE COUPLING, hose half

1шт.

10

K921217

PLUG

DUST COVER, quick-release coupling

1шт.

K626783

WASHER

SEALING WASHER, 7/8 in

1шт.

K19647

NUT

LOCKNUT, 1/2 BSP

1шт.

11

K921178

ADAPTER

ADAPTOR, 1/2 BSP, pipe to quick-release coupling

1шт.

12

K950493

KNOB

hand lever

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

13

K950410

HANDLE

HAND LEVER

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

14

K623940

PIN

SPRING PIN, 5/32 x 1 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

15

K623687

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

'O' RING, 1/2 in internal diameter

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

16

K621340

BUSHING

BUSH

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

17

K951909

SPINDLE

LEVER AND SHAFT

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

18

K951912

ROD

CONNECTING ROD

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

19

K950866

LARGE PIN

CLEVIS PIN, 1/4 x 13/16 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

20

K950865

CLIP

SPRING CLIP

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.
