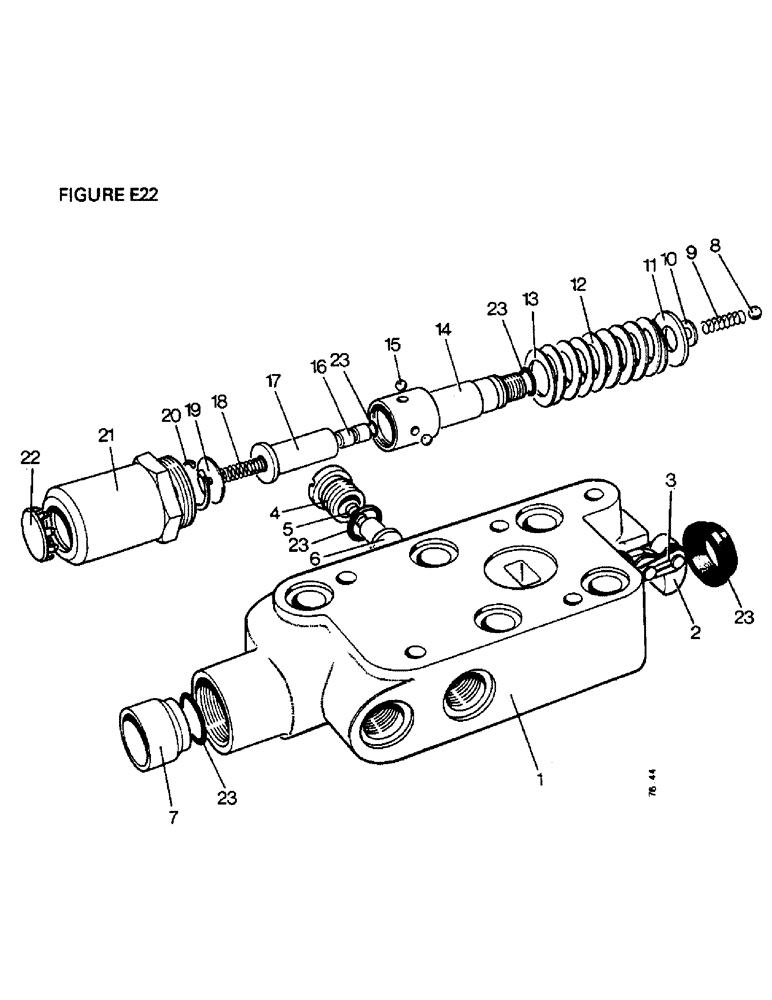

Запчасти Case IH 1410 (E22-1) - SELECTAMATIC HYDRAULIC SYSTEM, LIVE TAKE OFF VALVE, 1410, 1410Q, 1410SK, 1412, 1412Q, 1412G, 1412SK (07) - HYDRAULIC SYSTEM

1

K943825

VALVE

CONTROL VALVE ASSEMBLY, CESSNA 300-080 AAD, Includes: Ref. 2 - 23

1шт.

2

K963588

LEVER

SPINDLE, hand lever

1шт.

3

K963587

LINK

, Serial Range: spindle-spool

1шт.

4

K962065

PLUG

(non-return valve)

1шт.

5

K962067

SPRING

(non-return valve)

1шт.

6

K962066

PLUNGER

(non-return valve)

1шт.

7

K962060

BUSHING

BUSH, body

1шт.

8

K963579

BALL

STEEL BALL (detent valve)

1шт.

9

K963580

SPRING

(detent valve)

1шт.

10a

K962080

SHIM,.010" Thk

Detent valve .010" Thk

1шт.

10b

K962081

SHIM,.005" Thk

Detent valve .005" Thk

1шт.

11

K962082

DISC

WASHER (spool centering)

1шт.

12

K964904

SPRING

(spool centering)

1шт.

13

K962078

WASHER

(spool centering)

1шт.

14

K963581

RETAINER

(spool detent)

1шт.

15

K11483

BALL

STEEL BALL (spool detent)

3шт.

16

K962071

PISTON

(detent release)

1шт.

17

K963574

PLUNGER

(detent release)

1шт.

18

K962073

SPRING

(detent release)

1шт.

19

K962079

WASHER

(detent release)

1шт.

20

K962076

RING, SNAP

CIRCLIP (detent release)

1шт.

21

K963575

CAP

body

1шт.

22

K962074

PLUG

cap

1шт.

23

K962083

GASKET KIT

SEAL PACK (5 'O" rings, 2 wiper seals)

1шт.
