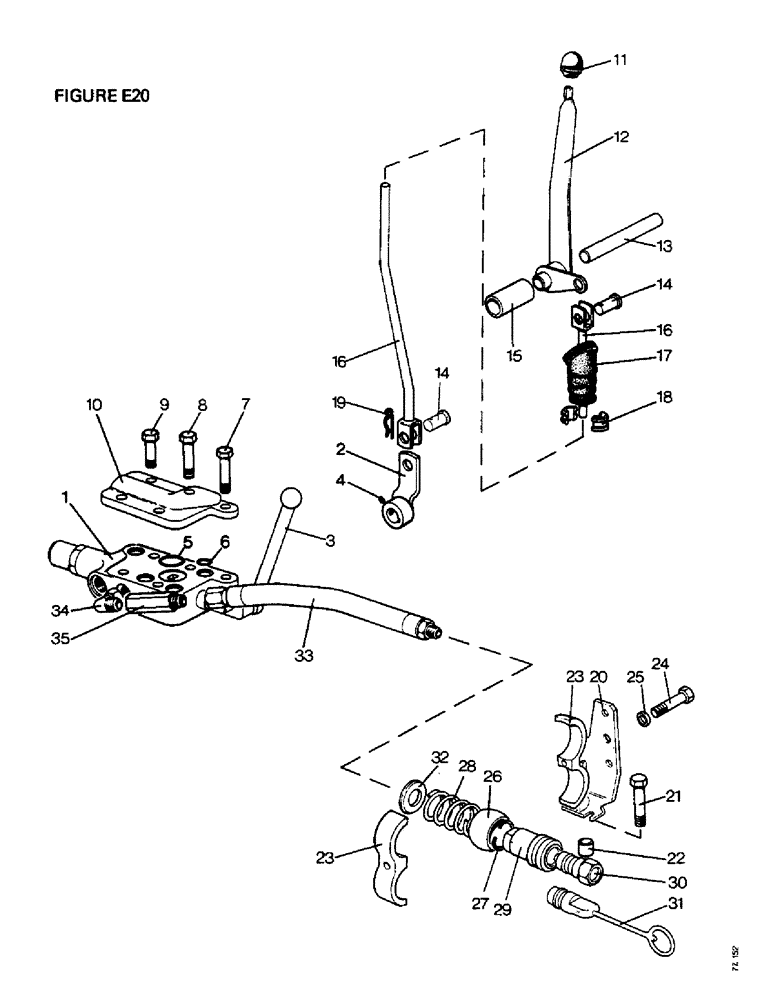

Запчасти Case IH 1410 (E20-1) - SELECTAMATIC HYD. SYSTEM, SINGLE LIVE TAKE OFF VALVE [A]1410Q,1410SK,1412Q,1412SK [B]1410,1412,1412G (07) - HYDRAULIC SYSTEM

K964531

CONTROL VALVE

VALVE AND HAND CONTROLS (single pump)

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K931865

SPARE PART

HAND CONTROLS, U1915 (single pump)

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K964529

CONTROL VALVE

VALVE AND HAND CONTROLS (tandem pump)

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K931870

SPARE PART

HAND CONTROLS, U1921 (tandem pump)

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K918183

NO LONGER SERVICED

SINGLE LIVE TAKE-OFF VALVE, U1948

1шт.

1410, 1412, 1412G

1шт.

K930230

NO LONGER SERVICED

PIPES AND COUPLINGS FOR SINGLE VALVE, U1400

1шт.

1

K943825

VALVE

TAKE-OFF VALVE ASSEMBLY

1шт.

2

K950851

LEVER

cranked, not part of U1915 or U1921

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

3

K946383

LEVER

HAND LEVER, straight

1шт.

1410, 1412, 1412G

1шт.

K622382

KEY

Woodruff No. 403

1шт.

4

K606322

SCREW

GRUBSCREW, 5/16 UNC x 3/8 in

1шт.

5

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

'O' RING, 1 3/16 in internal diameter

1шт.

6

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal diameter

5шт.

7a

K600516

BOLT

3/8 UNC x 4 3/4 in (single pump)

2шт.

8a

K600517

BOLT

3/8 UNC x 5 1/4 in (single pump)

1шт.

7b

K600518

BOLT

3/8 UNC x 5 1/2 in (tandem pump)

2шт.

8b

8600513

BOLT, 3/8 UNC x 6 in (tandem pump)

1шт.

9

K600515

BOLT

3/8 UNC x 2 3/4 in

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

5шт.

10

K919242

COVER

1шт.

11

K950493

KNOB

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

12

K950762

LEVER

HAND LEVER

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K613984

SCREW

No. 10 UNF x 1/2 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

13

K950863

SHAFT

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

14

K950866

LARGE PIN

CLEVIS PIN, 1/4 x 13/16 in

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

K623605

PIN

SPLIT PIN, 1/16 x 1/2 in

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

15

K950898

BUSHING

SPACER

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

16a

K951297

ROD

CONNECTING ROD, single pump

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

16b

K951354

ROD

CONNECTING ROD, tandem pump

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

17

K950691

SEAL

GAITER

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

18

K950861

BUSHING

BUSH HALVES

2шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

19

K950865

CLIP

RETAINING PIN

1шт.

1410Q, 1410SK, 1412Q, 1412SK

1шт.

20

K940752

MOUNTING PARTS

SUPPORT BRACKET

1шт.

21

K600896

BOLT

1/2 UNC x 3 1/2 in

2шт.

22

K627074

BUSHING

DISTANCE PIECE

1шт.

23

K924286

MOUNTING PARTS

MOUNTING FRAME

2шт.

K91474

WASHER, 1/2 in

1шт.

24

K600703

BOLT

7/16 UNC x 3 in

1шт.

25

K627056

BUSHING

DISTANCE PIECE

1шт.

K626344

WASHER, LOCK

SPRING WASHER, 7/16 in

1шт.

280717

NUT,7/16"-14, G5

1шт.

26

K924284

RING

GIMBAL RING

2шт.

27

K924285

RING

RETAINING RING

2шт.

28

K625249

SPRING

Includes: Ref. 29 and 30

2шт.

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING, Aeroquip B5600/8/10

2шт.

29

K929247

BREAKER POINTS

QUICK-RELEASE COUPLING, tractor half

1шт.

30

K921982

BREAKER POINTS

QUICK-RELEASE COUPLING, hose half

1шт.

31

K921217

PLUG

DUST PLUG, coupling

2шт.

32

K626794

WASHER

special

2шт.

33

K924710

HOSE

FLEXIBLE PIPE, 1/2 BSP - 3/4 UNF x 16 1/4 in

2шт.

34

K622114

FITTING

ELBOW, 3/4 UNF

2шт.

35

K945364

PIPE

CONNECTOR

1шт.
