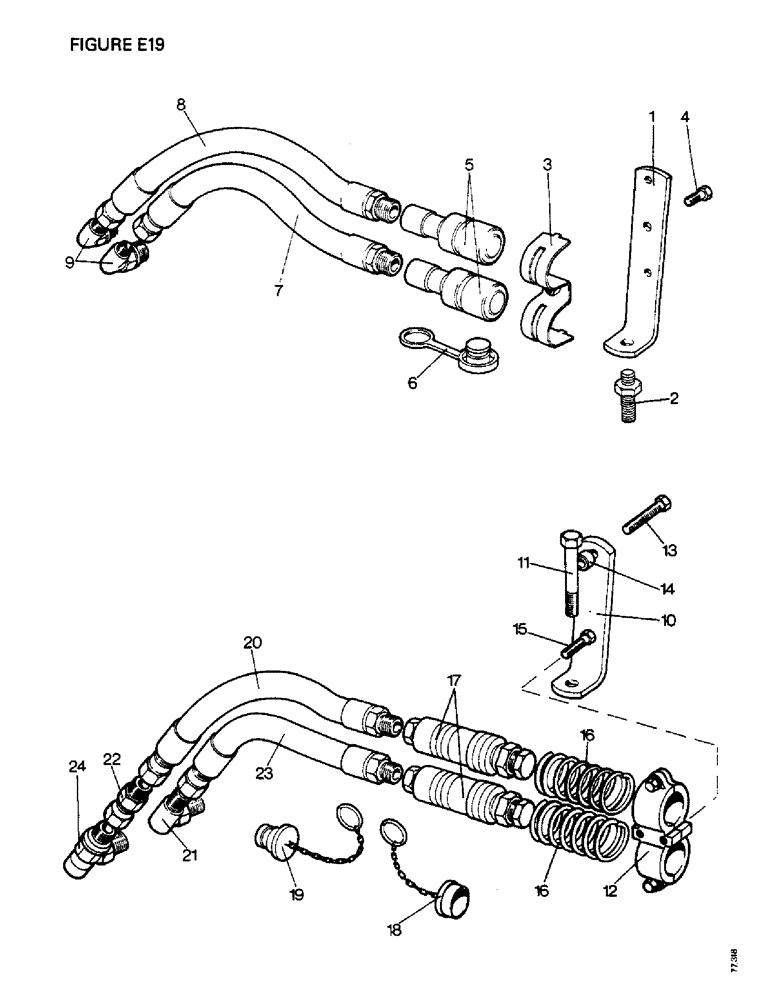

Запчасти Case IH 1410 (E19-1) - SELECTAMATIC HYDRAULIC SYSTEM, PIPES & COUPLINGS, LIVE TAKE OFF VALVES, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

K931464

PIPE

S AND BRUNING COUPLINGS FOR SINGLE VALVE, U1800, Includes: Ref. 1 - 9

1шт.

1

K949670

BRACKET

SUPPORT BRACKET

1шт.

2

K608424

STUD

1/2 UNC x 4 3/16 in special, replaces K608411 (Replaces K600896)

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in (Replaces K600896)

1шт.

280431

NUT,1/2"-13, G5

(Replaces K600896) 1/2"-13, G5

1шт.

3

K949616

CLIP

CLAMP

1шт.

4

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW, 3/8 UNC x 3/4 in, Serial Range: clamp-bracket

1шт.

K19472

WASHER

SPRING WASHER, 3/8 in

1шт.

5

K948595

BREAKER POINTS

COUPLING, Bruning quick release

2шт.

6

K950297

PLUG

DUST CAP, coupling, Replaces K948612

2шт.

7

K949705

HOSE

16 7/8 x 3/4 UNF x 7/8 UNF

1шт.

8

K949706

HOSE

14 3/8 x 3/4 UNF x 7/8 UNF

1шт.

9

K622114

FITTING

ELBOW, 3/4 UNF x 3/4 UNF

2шт.

K623591

O-RING

'O' RING, 21/32 in, elbow

2шт.

K931298

KIT

PIPES AND PIONEER COUPLINGS FOR SINGLE VALVE, U1775, Includes: Ref. 10 - 24

1шт.

10

K948158

VALVE

SUPPORT BRACKET

1шт.

11

K600896

BOLT

1/2 UNC x 3 1/2 in, bracket to sensing unit

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in

1шт.

12

K945833

CLAMP

1шт.

13

K602853

SCREW

SETSCREW, 5/16 UNC x 2 1/4 in, Serial Range: (clamp-bracket)

1шт.

K626682

WASHER

5/16 in, Serial Range: (clamp-bracket)

1шт.

14

K627037

BUSHING

DISTANCE PIECE, Serial Range: (clamp-bracket)

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (clamp to bracket)

1шт.

15

K602854

SCREW

SETSCREW, 5/16 UNC x 1 3/8 in, Serial Range: (clamp-bracket)

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: (clamp-bracket)

1шт.

16

K625286

SPRING

2шт.

K626920

WASHER

special

2шт.

17

K945832

COUPLING, BREAK AWAY

COUPLING, tractor half (Pioneer Ref. No. 7000-4-3)

2шт.

18

K945834

CAP

DUST CAP

2шт.

19

K945835

PLUG

DUST PLUG

2шт.

20

K945839

HOSE

3/8 in bore x 18 in x 3/8 NPT

1шт.

21

K945837

FITTING

ELBOW, 3/8 NPT male x 3/8 NPT female, 90 degrees

1шт.

22

K945838

FITTING

UNION, straight 3/4 UNF male to 3/8 NPT female

1шт.

23

K945840

HOSE

3/8 in bore x 15 in x 3/8 NPT

1шт.

24

K945836

FITTING

ELBOW, 3/4 UNF male x 3/8 NPT female 90 degrees

1шт.
