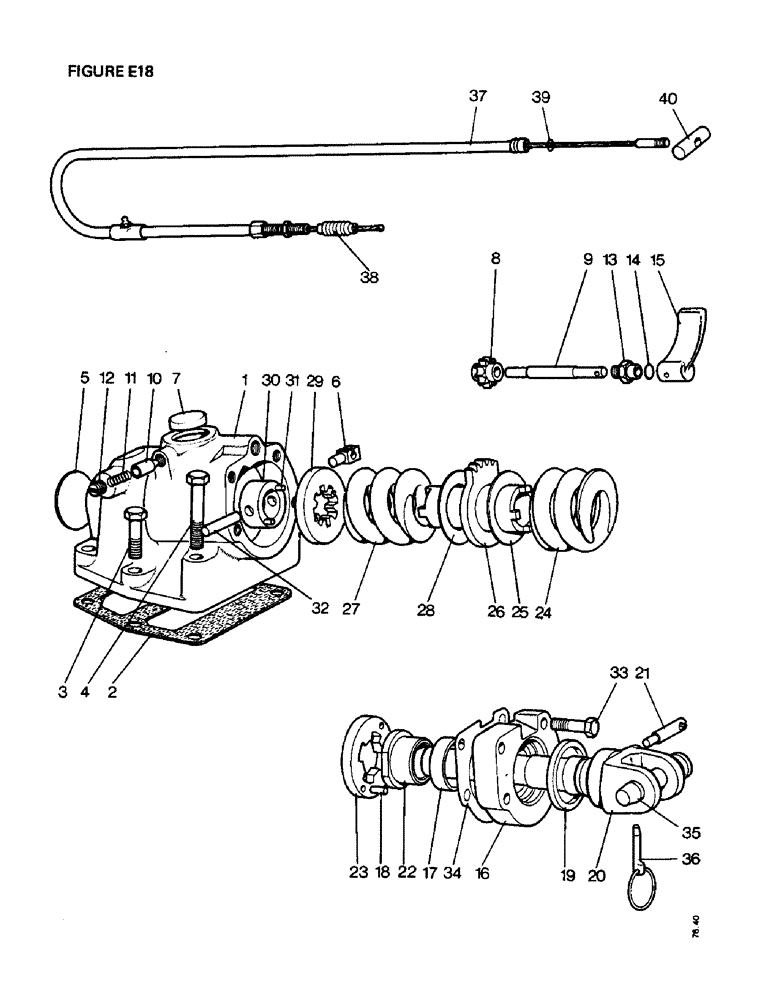

Запчасти Case IH 1410 (E18-1) - SELECTAMATIC HYDRAULIC SYSTEM, SELECTIVE SENSING UNIT (07) - HYDRAULIC SYSTEM

K930051

SPARE PART

SELECTIVE SENSING UNIT, U1376 (up to S/N Note A)

1шт.

1410 4WD, 1410Q 4WD

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

K931996

SPARE PART

SELECTIVE SENSING UNIT, U1966 (eff. S/N Note A)

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

K932042

SELECTIVE SENSING UNIT, U1978

1шт.

1412G

1шт.

1a

K940028

SPRING

HOUSING (up to S/N Note A)

1шт.

1410 4WD, 1410Q 4WD

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

1b

K952796

SPRING

HOUSING (eff. S/N Note A)

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

1c

K953066

SPRING

HOUSING

1шт.

1412G

1шт.

2

K926451

GASKET,0.56mm Thk

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1412G

1шт.

2

K926451

GASKET,0.56mm Thk

2шт.

1410 4WD, 1410Q 4WD

1шт.

3a

K600805

BOLT

1/2 UNC x 1 7/8 in (up to S/N Note A)

4шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

4a

K600815

BOLT

1/2 UNC x 3 1/4 in (up to S/N Note A)

2шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

3b

K608824

BOLT

1/2 UNC x 2 in (eff. S/N Note A)

4шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

4b

K608833

BOLT

1/2 UNC x 3 1/4 in (eff. S/N Note A)

2шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK

1шт.

1410, 1412, 1410Q, 1412Q, 1410SK, 1412SK, 1410 4WD, 1410Q 4WD-11200564

1шт.

K606714

SCREW

socket head, 1/2 UNC x 2 1/2 in

2шт.

1410 4WD, 1410Q 4WD

1шт.

3c

K608828

BOLT

1/2 UNC x 2 1/2 in

2шт.

1410 4WD, 1410Q 4WD

1шт.

4c

K608835

BOLT

1/2 UNC x 3/4 in

2шт.

1410 4WD, 1410Q 4WD

1шт.

3d

K608824

BOLT

1/2 UNC x 2 in

4шт.

1412G

1шт.

4d

K608833

BOLT

1/2 UNC x 3 1/4 in

2шт.

1412G

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in

6шт.

5

K623813

PLUG

WELCH PLUG, 2 3/8 in

1шт.

6

K912371

CABLE

SUPPORT, outer

1шт.

7

K623797

PLUG

CORE PLUG, 1 3/4 in

1шт.

8

K929874

SELECTOR

PINION

1шт.

9

K940044

SELECTOR

SPINDLE

1шт.

K690338

PIN

SPRING PIN, 5/32 x 5/8 in

1шт.

10

K946440

PLUNGER

detent (use in sets)

1шт.

11

K625285

SPRING

detent plunger (use in sets)

1шт.

12

K606281

SCREW

GRUBSCREW, 1/2 UNC

1шт.

13

K940045

BUSHING

SCREWED BUSH

1шт.

14

K623681

WIPER

RING, 1/2 in internal diameter

1шт.

15

K940046

SELECTOR

LEVER

1шт.

K623727

GROOVED PIN,5/32" x 7/8", Type A

SPRING PIN, 5/32 x 7/8 in

1шт.

K947303

SHAFT

ASSEMBLY, Includes: Ref. 16 - 32

1шт.

16

K964912

PLATE

END PLATE ASSEMBLY, replaces K947300, Includes: Ref. 17 - 19

1шт.

17

K621423

BUSHING

BUSH

1шт.

18

K940031

PIN

DOWEL, 1/4 x 3/4 in

2шт.

19

K623460

WIPER

SEAL, 2 1/2 in internal diameter

1шт.

20

K929808

SHAFT

1шт.

21

K940047

BRACKET

CABLE SUPPORT, inner

1шт.

22

K940035

SLEEVE

Includes: Ref. 23

1шт.

23

K947302

WASHER

THRUST WASHER

1шт.

24

K928315

SPRING

2 in internal diameter

1шт.

25a

K928388

SHIM

0.003 in

1шт.

25b

K928389

SHIM

0.007 in

1шт.

25c

K928390

SHIM

0.015 in

1шт.

26

K940036

SUPPORT

SPRING SUPPORT

1шт.

27

K928314

SPRING

1 3/4 in internal diameter

1шт.

28a

K928392

SHIM

0.003 in

1шт.

28b

K928393

SHIM

0.007 in

1шт.

28c

K928394

SHIM

0.015 in

1шт.

29a

K940039

WASHER

THRUST WASHER, 0.373 in (alternatives)

1шт.

29b

K940040

WASHER

THRUST WASHER, 0.365 in (alternatives)

1шт.

29c

K940041

WASHER

THRUST WASHER, 0.357 in (alternatives)

1шт.

30

K947867

COLLAR

with dowels

1шт.

31

K940043

PIN

STEPPED DOWEL

2шт.

32

K915117

PIN

RETAINING PIN, 3/8 x 2 1/4 in

1шт.

33

K600606

BOLT

7/16 UNC x 2 in (end, Serial Range: plate-housing)

4шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in (end, Serial Range: plate-housing)

4шт.

34a

K940032

SHIM

0.005 in (end, Serial Range: plate-housing)

1шт.

34b

K940033

SHIM

0.010 in (end, Serial Range: plate-housing)

1шт.

34c

K940034

SHIM

0.030 in (end, Serial Range: plate-housing)

1шт.

35

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN

1шт.

36

K66408

PIN

LINCH PIN AND RING

1шт.

37

K963417

LINK

CABLE, with dirt excluder

1шт.

38

K906182

RUBBER

DIRT EXCLUDER

1шт.

39

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

'O' RING, 1/4 in internal diameter

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

40

K915053

FITTING

cylindrical

1шт.

K617080

NUT

No. 10 UNF

2шт.

K964984

COLLAR

SERVICE KIT, includes Ref. 29 and 30

1шт.
