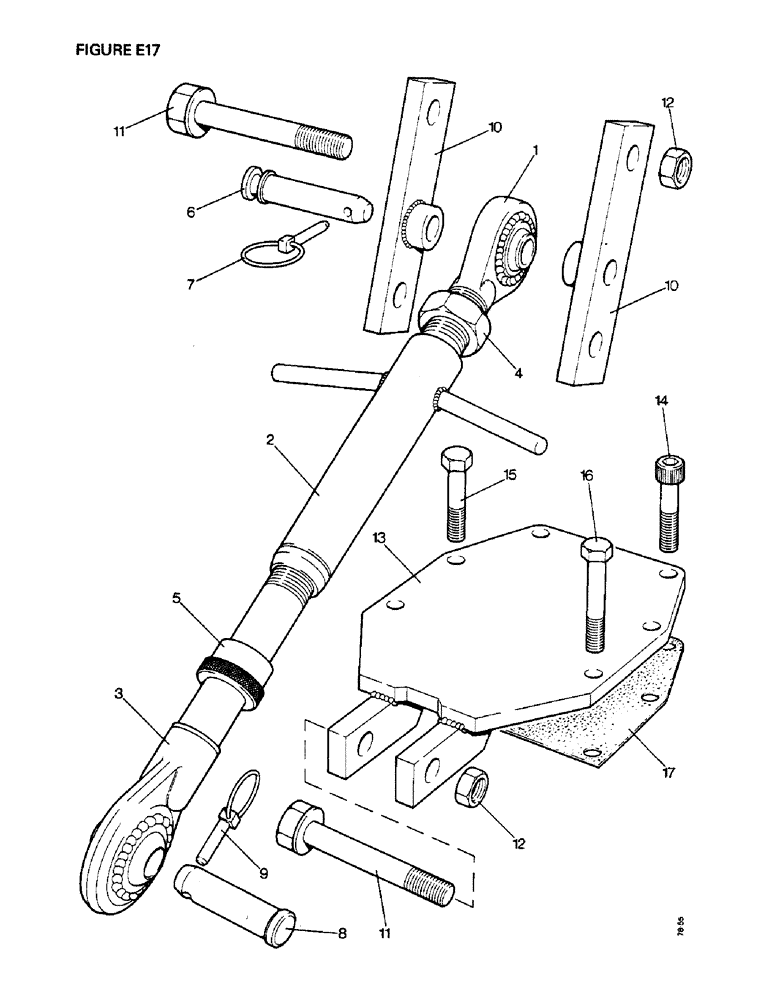

Запчасти Case IH 1410 (E17-1) - SELECTAMATIC HYDRAULIC SYSTEM, TOP LINK (07) - HYDRAULIC SYSTEM

K956117

LINK

TOP LINK ASSEMBLY (eff. S/N Note A), Includes: Ref. 1 - 5

1шт.

1410Q 4WD

1шт.

1410Q, 1412Q

1шт.

K944791

LINK

TOP LINK ASSEMBLY (up to S/N Note A), Includes: Ref. 1 - 5

1шт.

1

K944856

BALL

SCREW AND HOUSING, 8 in, tractor end

1шт.

2

K920800

TURNBUCKLE

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

3

K944792

DRAG LINK

SCREW AND HOUSING, 15 in, Category 2

1шт.

4

K19448

LOCK NUT

LOCKNUT, 1 1/4 BSF

1шт.

5

K955515

BUSHING

LOCKING BUSH (eff. S/N Note A)

1шт.

1410, 1410Q, 1410Q 4WD, 1410SK, 1410SK 4 WD, 1412, 1412Q, 1412, 1412SK-11203600

1шт.

1410Q 4WD

1шт.

1410Q, 1412Q

1шт.

6

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN, sensing unit

1шт.

7

K66408

PIN

LINCH PIN AND RING

1шт.

8

K65690

HITCH PIN

LINK PIN, Category 2

1шт.

9

K920359

PIN

LINCH PIN AND RING

1шт.

10

K947957

ARM

2шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

11

K601469

BOLT

3/4 UNC x 5 1/2 in, special

3шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

K19476

WASHER

3/4 in

6шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

12

K607086

NUT

LOCKNUT, 3/4 UNC

6шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

13

K947956

BRACKET

ANCHOR BRACKET

1шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

14

K606714

SCREW

socket head, 1/2 UNC x 2 1/2 in (sensing unit and bracket to axle case)

2шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

15

K608828

BOLT

1/2 UNC x 2 1/2 in (sensing unit and bracket to axle case)

2шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

16

K608835

BOLT

1/2 UNC x 3 3/4 in (sensing unit and bracket to axle case)

2шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.

17

K626451

GASKET, anchor bracket to axle case

1шт.

1410SK 4WD, 1410 4WD

1шт.

1410Q 4WD

1шт.
