Запчасти Case IH 1410 (E16-1) - SELECTAMATIC HYDRAULIC SYSTEM, LIFT RODS AND LOWER LINKS (07) - HYDRAULIC SYSTEM

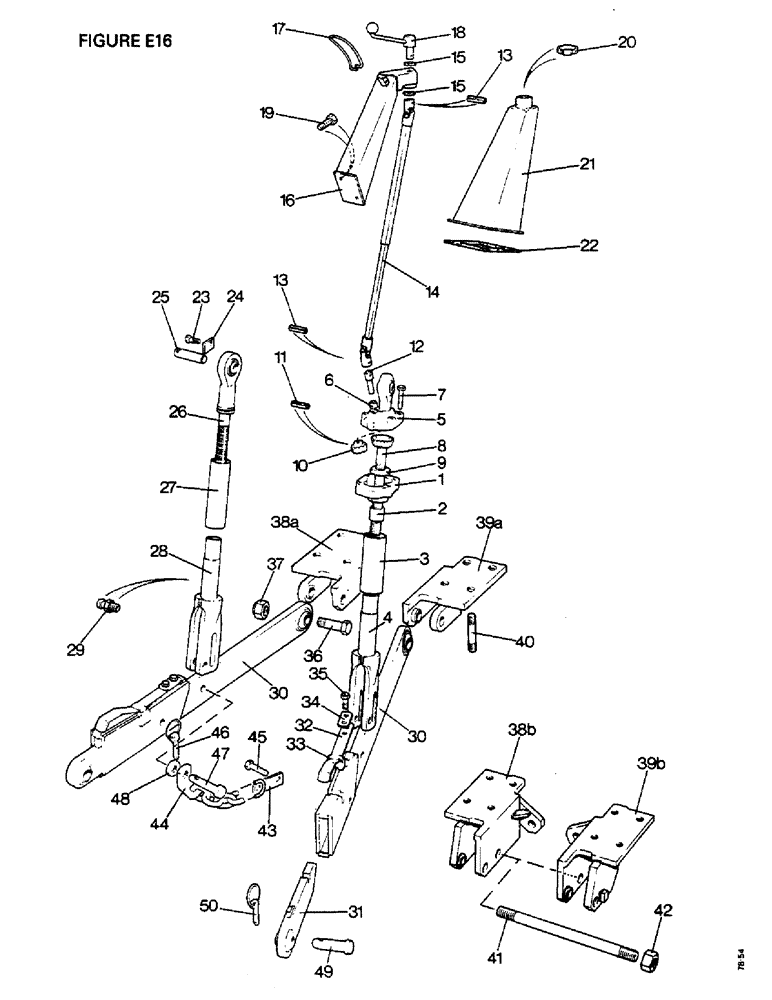

Схема запчастей Case IH 1410 - (E16-1) - SELECTAMATIC HYDRAULIC SYSTEM, LIFT RODS AND LOWER LINKS (07) - HYDRAULIC SYSTEM
13
49
4
10
28
43
25
2
36
31
30
16
37
17
23
12
38a
1
30
26
18
3
15
21
5
47
14
7
15
9
19
50
8
6
20
11
42
33
41
27
48
29
38b
32
39a
44
24
40
13
35
39b
22
34
45
46

Артикул

Название

Примечание

Количество

K954123

LEVER

LEVELLING LEVER, complete, Includes: Ref. 1 - 4A

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

K955600

LEVER

LEVELLING LEVER, extended, complete, Includes: Ref. 1 - 4A

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

1

K964964

HOUSING

GEAR HOUSING, Includes: Ref. 2 and 3

1шт.

2

K621302

BUSHING

BUSH

1шт.

3

K940510

TUBE,1.75" ID x 6.187" L

1 3/4 x 6 1/4 in

1шт.

4a

K947284

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 14 1/4 in, slotted

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

4b

K954422

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 17 3/4 in, slotted, Includes: Ref. 5 - 13

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

5

K964963

CAP

Includes: Ref. 6

1шт.

6

K621340

BUSHING

BUSH

2шт.

K32063

PIN

DOWEL, 3/16 x 1/2 in

2шт.

7

K600606

BOLT

7/16 UNC x 2 in

4шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

4шт.

8

K948664

GEAR

LEVELLING SCREW, 1 3/8 Whitworth x 10 5/16

1шт.

9

K620193

THRUST BEARING

1шт.

10

K919769

GEAR

BEVEL PINION

1шт.

11

K623761

SPRING PIN, 5/32 x 3/4 in

1шт.

12

K954077

SHAFT

1шт.

13

K956384

PIN

5 x 25mm, telescopic, Serial Range: spindle-shaft

2шт.

14

K956385

LINK

TELESCOPIC SPINDLE, levelling lever

1шт.

15

K956383

WASHER

THRUST WASHER

2шт.

16

K200134

BRACKET

SUPPORT BRACKET, levelling lever control

1шт.

17

K924723

SPRING

LATCH

1шт.

18

K956382

BALL

HANDLE, levelling lever control

1шт.

19

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW, 5/16 UNC x 5/8 in (support, Serial Range: bracket-cab)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (support, Serial Range: bracket-cab)

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC (support bracket to cab)

2шт.

20

K621992

CLIP

cover to support bracket

1шт.

21

200144

BOWDEN CONTROL

COVER, telescopic spindle

1шт.

22

K956020

CLAMP

PLATE, cover

1шт.

K19660

RIVET

1/8 x 3/8 in

4шт.

K626309

WASHER

1/8 in

4шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Levelling lever and lift rod to ramshaft) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (levelling lever and lift, Serial Range: rod-ramshaft)

2шт.

24

K948367

PLATE

pin (levelling lever and lift, Serial Range: rod-ramshaft)

2шт.

25

K948366

PIN

PIVOT PIN (levelling lever and lift, Serial Range: rod-ramshaft)

2шт.

K944785

ROD

LIFT ROD, complete

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

K954421

ROD

LIFT ROD, extended, complete, Includes: Ref. 26 - 29

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

26

K964965

SCREW

ADJUSTING SCREW, 1 1/8 Whitworth RH x 13 13/16 in

1шт.

27

K940509

TUBE,1.75" DIA x 7.125" L

1 3/8 x 7 1/8 in

1шт.

28a

K947284

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 14 1/4 in slotted

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

28b

K954422

NUT

ADJUSTING NUT, 1 1/8 Whitworth x 17 3/4 in slotted

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

K945402

LINK

LOWER LINK, telescopic, Includes: Ref. 30 - 35

2шт.

30

K945403

LINK

front

1шт.

31

K945410

LINK

rear

1шт.

32

K924476

SPRING

LATCH SPRING

1шт.

33

K945413

LATCH

1шт.

34

K948166

SPRING

PLATE

1шт.

35

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

36

K612065

BOLT

1 1/8 UNF x 5 in, replaces K948798 (links to hitch brackets)

2шт.

37

K617595

LOCK NUT

CLEVELOC NUT, 1 1/8 UNF, replaces K920359 (links to hitch brackets)

2шт.

38a

K944764

BRACKET

HITCH BRACKET, left-hand

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

38b

K953172

BRACKET

HITCH BRACKET, left-hand

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

39a

K944766

HITCH ASSY

HITCH BRACKET, right-hand

1шт.

1410SK, 1412SK

1шт.

1410Q, 1412Q

1шт.

39b

K953173

HITCH ASSY

HITCH BRACKET, right-hand

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

40

K608703

STUD

3/4 UNF x 4 in

8шт.

K617176

NUT

3/4 UNF

8шт.

41

K954435

STAY

CROSS STAY

1шт.

1410Q 4WD, 1410SK 4WD

1шт.

42

K616989

NUT

1 in UNF

4шт.

1410Q 4WD, 1410SK 4WD

1шт.

K944823

CHAIN (AG)

CHECK CHAIN ASSEMBLY, Includes: Ref. 43 - 45

2шт.

43

K924022

PLATE

check chain

2шт.

44

K944789

CHAIN (AG)

CHECK CHAIN AND PLATE

1шт.

45

K600804

BOLT

1/2 UNC x 1 3/4 in

1шт.

K607462

NUT

CLEVELOC NUT, 1/2 UNC

1шт.

K600804

BOLT

1/2 UNC x 1 3/4 in

2шт.

K607462

NUT

CLEVELOC NUT, 1/2 UNC

2шт.

46

K915678

PIN

LINCH PIN AND RING

2шт.

47

K944788

PIN

check chain

2шт.

48

K948365

COLLAR

linch pin

2шт.

49

K948798

LINK

PIN, Serial Range: link-implement

2шт.

50

K920359

PIN

LINCH PIN AND RING

2шт.

Выбрано товаров: 93
